Siemens MAG 5000 User Manual

30
SITRANS F M
3. Project guidance
A transmitter can be supplied in a version tested
and approved for custody transfer (CT). The
internal counter can accordingly be used for
charging.
This requires verification, sealing and setting of
the transmitter together with the sensor for a
specific flow range. After sealing the data on the
transmitter must not be changed.
The sealing of the transmitter is done by placing
sealing marks on the transmitter and on the
connection plate in the terminal box.
P indicates sealing locations
3.5
Custody transfer
approval
3.6
Transmitter
MAG 5000 CT,
MAG 6000 CT

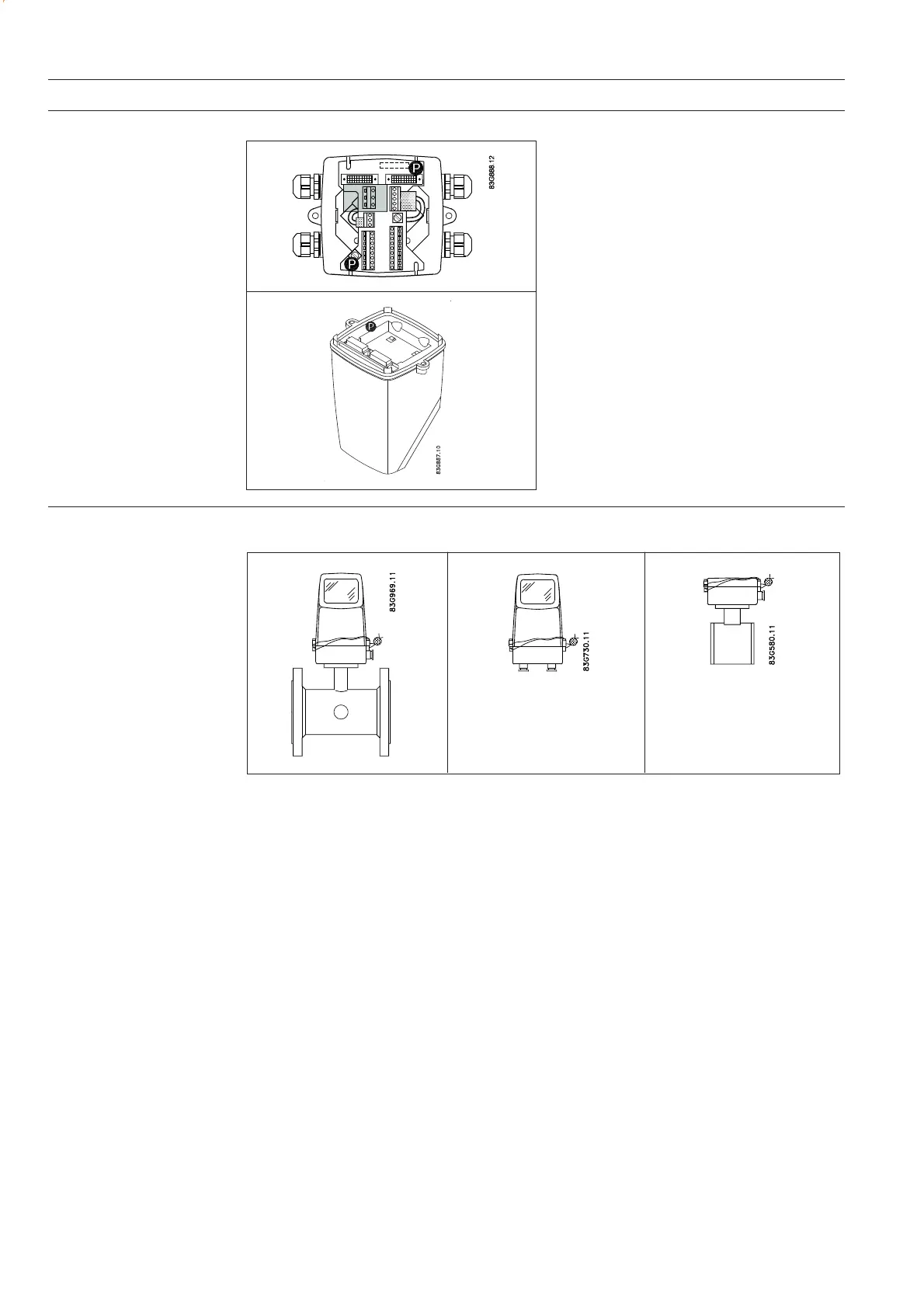

Sealing
The final sealing should be carried out as shown:
MAG 6000 CT is installed like a standard MAG 6000 except for the final sealing.
Calibration sealing has been carried out at calibration.

Siemens MAG 5000 Specifications

General

Type	Electromagnetic Flowmeter
Protection Class	IP67
Material	Stainless Steel, Carbon Steel
Power Supply	24 V DC, 100-240 V AC
Accuracy	±0.2% of flow rate
Communication	HART, PROFIBUS, Modbus
Enclosure Rating	IP67
Ambient Temperature Range	-20°C to +60°C
Sizes	DN 2 to DN 3000
Lining Materials	PTFE, Hard Rubber
Electrode Materials	Stainless Steel, Hastelloy, Tantalum
Process Temperature	-40 to +180 °C (-40 to +356 °F) depending on liner
Process Pressure	Up to 40 bar (580 psi)
Approvals	ATEX, FM, CSA, IECEx
Flow Velocity Range	0 to 12 m/s
Output Signals	4-20 mA, Pulse, Frequency
