Siemens MAG 5000 User Manual

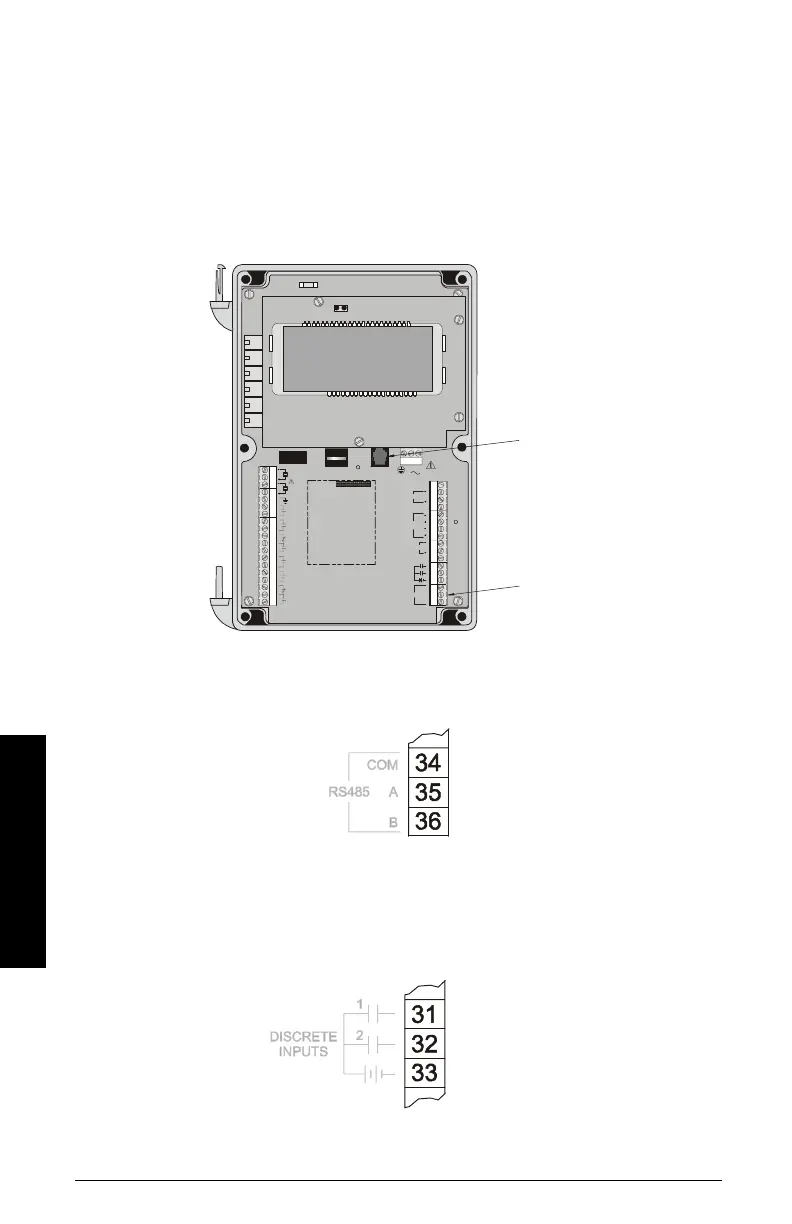

Page 20 MultiRanger 100/200 – INSTRUCTION MANUAL 7ML19981FB05
mmmmm
Wiring
Digital Communications
Wiring the MultiRanger for communications allows it to be integrated into a full SCADA
system or an industrial LAN.
The MultiRanger can also be directly connected to a computer running Dolphin Plus.
RS-232 Serial Connection
RS-485 Serial Connection
Discrete Inputs
Discrete inputs have a positive and negative terminal. Requires an external power supply.
L2/N L1
TB1
TB3
TB2
RELAY 1
RELAY 2
RELAY 3
RELAY 4
RELAY 5
RELAY 6
2
1
mA INPUT
SHIELD
SYNC
1
2
4 - 20 mA
OUTPUT S
TS-3
SHIELD
1
2
DISCRETE
INPUTS
RS485
B
A
COM
RS-232 RJ-11
Connector
RS-485
Connection
(see below)
Discrete Input (post.) 1
Discrete Input (pos.) 2
Common (neg.) for Discrete Input

Siemens MAG 5000 Specifications

General

Type	Electromagnetic Flowmeter
Protection Class	IP67
Material	Stainless Steel, Carbon Steel
Power Supply	24 V DC, 100-240 V AC
Accuracy	±0.2% of flow rate
Communication	HART, PROFIBUS, Modbus
Enclosure Rating	IP67
Ambient Temperature Range	-20°C to +60°C
Sizes	DN 2 to DN 3000
Lining Materials	PTFE, Hard Rubber
Electrode Materials	Stainless Steel, Hastelloy, Tantalum
Process Temperature	-40 to +180 °C (-40 to +356 °F) depending on liner
Process Pressure	Up to 40 bar (580 psi)
Approvals	ATEX, FM, CSA, IECEx
Flow Velocity Range	0 to 12 m/s
Output Signals	4-20 mA, Pulse, Frequency
