Siemens MAG 5000 User Manual

16

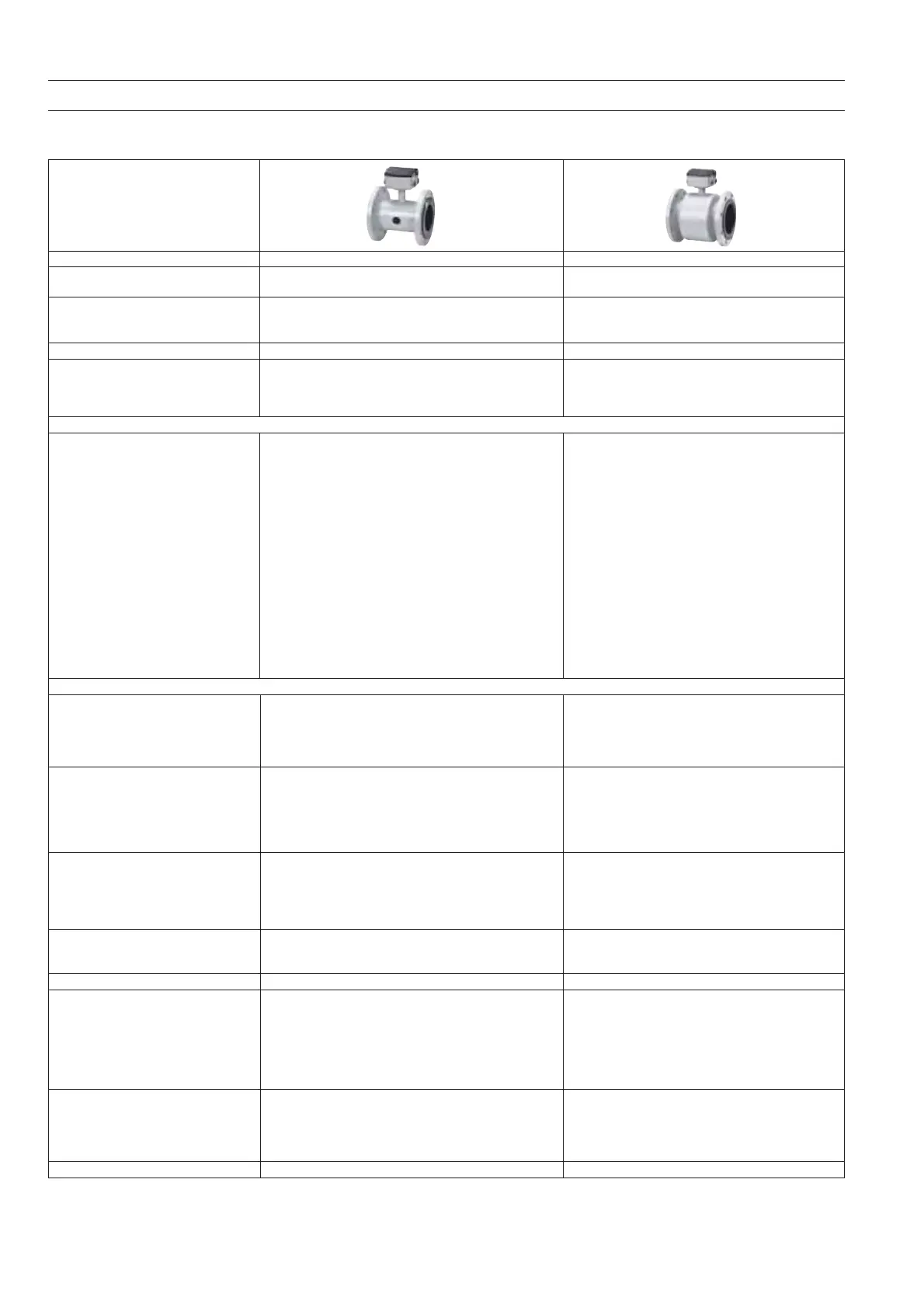

2. Technical data
SITRANS F M
MAG 5100 W
2.4 Sensor MAG 5100 W
1)
For sizes larger than 600 mm (24”) in PN 16, PED conformity is available as a cost-added option. The basic unit will carry the LVD (Low Voltage Directive) and
EMC approvals.
Technical specifications EPDM or NBR lining (Order No. 7ME6520) Ebonite lining (Order No. 7ME6580)
Product characteristic: Targeted towards the EU water markets and Targeted towards the Non EU water markets
low flow applications:
Design and nominal size Full bore sensor: DN 25 ... 40 (1" ... 1
½
") Full bore sensor: DN 25 ... 2000 (1" ... 78")
Coned sensor: DN 50 ... 300 (2" ... 12")
Full bore sensor: DN 350 ... 1200 (14" ... 48")
Measuring principle Electromagnetic induction Electromagnetic induction
Excitation frequency DN 25 ... 65 (1" ... 2½"): 12.5 Hz /15 Hz DN 25 ... 65 (1" ... 2½"): 12.5 Hz /15 Hz
(Mains supply: 50 Hz/60 Hz) DN 80 ... 150 (3" ... 6"): 6.25 Hz /7.5 Hz DN 80 ... 150 (3" ... 6"): 6.25 Hz /7.5 Hz
DN 200 ... 300 (8" ... 12"): 3.125 Hz / 3.75 Hz DN 200 ... 1200 (8" ... 48"): 3.125 Hz / 3.75 Hz
DN 350 ... 1200 (14" ... 48"): 1.5625 Hz /1.875 Hz DN 1400 ... 2000 (54" ... 78"): 1.5625 Hz /1.875 Hz
Process connection
Flanges
•
EN 1092-1 PN 10 (145 psi): DN 200 ... 300 (8" ... 12"): Raised face (EN 1092-1, DIN 2501 and BS 4504
Flat face flanges have the same mating dimensions)
PN 10 (145 psi): DN 350 ... 1200 (14" ... 48"): PN 6 (87 psi): DN 1400 ... 2000 (54" ... 78")
Raised face flanges PN 10 (145 psi): DN 200 ... 2000 (8" ... 78")
PN 16 (232 psi): DN 50 ... 300 (2" ... 12"): PN 16 (232 psi): DN 65 ... 600 (2" ... 24")
Flat face flanges PN 40 (580 psi): DN 25 ... 50 (1" ... 2
“
)
PN 16 (232 psi): DN 350 ... 1200 (14" ... 48
“
):
Raised face flanges
PN 40 (580 psi): DN 25 ... 40 (1" ... 1½"):
Raised face flanges
•
ANSI B16.5 Class 150 lb: 1" ... 24": 1" ... 24
“
: Class 150 lb
•
AWWA C-207 Class D: 28
”
... 48", Flat face Class D: 28" ... 78"h, Flat face
•
AS4087 PN 16 (DN 50 ... 1200), (2" ... 48") PN 16 (DN 50 ... 1200), (2" ... 48")
16 bar (232 psi) 16 bar (232 psi)
•
JIS B 2220:2004 - K10 (1" ... 24")
Rated Operation conditions
Ambient temperature
•
Sensor -40 ... +70
°C
(-40 ... +158
°
F) -20 ... +70
°
C (-4 ... +158
°
F)
•
With compact transmitter -20 ... +50
°C
(-4 ... +122
°
F) -20 ... +50
°
C (-4 ... +122
°
F)
MAG 5000/6000
•
With compact transmitter MAG 6000 I -20 ... +60
°C
(-4 ... +140
°
F) -20 ... +60
°
C (-4 ... +140
°
F)
Operating pressure (Abs) DN 25 ... 40 (1" ... 1½"): DN 25 ... 50 (1" ... 2"):
[abs. bar] (maximum operating 0.01 ... 40 bar (0.15 ... 580 psi) 0.01 ... 40 bar (0.15 ... 580 psi)
pressure decreases with increasing DN 50 ... 300 (2" ... 12"): DN 65 ... 1200 (2½" ... 48"):
operating temperature) 0.03 ... 20 bar (0.44 ... 290 psi) 0.01 ... 16 bar (0.15 ... 232 psi)
DN 350 ... 1200 (14" ... 48"): DN 1400 ... 2000 (54" ... 78"):
0.01 ... 16 bar (0.15 ... 232 psi) 0.01 ... 10 bar (0.15 ... 145 psi)
Enclosure rating
•
Standard IP67 to EN 60529 / NEMA 4X/6 IP67 to EN 60529 / NEMA 4X/6
(1 mH2O for 30 min) (1 mH2O for 30 min)
•
Option IP68 to EN 60529 / NEMA 6P IP68 to EN 60529 / NEMA 6P
(10 mH2O continuously) (10 mH2O continuously)
Pressure drop at 3 m/s (10 ft/s) DN 25 ... 40 (1" ... 1½"): As straight pipe As straight pipe
DN 50 ... 300 (2" ... 12"): Max. 25 mbar (0.36 psi)
DN 350 ... 1200 (14" ... 48"): As straight pipe
Test pressure 1.5 x PN (where applicable) 1.5 x PN (where applicable)
Mechanical load 18 ... 1000 Hz random in x, y, z, directions for 2 18 ... 1000 Hz random in x, y, z, directions for
hours according to EN 60068-2-36 2 hours according to EN 60068-2-36
Sensor: 3.17 grms Sensor: 3.17 grms
Sensor with compact MAG 5000/6000 mounted Sensor with compact MAG 5000/6000 mounted
transmitter: 3.17 grms transmitter: 3.17 grms
Sensor with compact MAG 6000 I mounted Sensor with compact MAG 6000 I mounted
transmitter: 1.14 grms transmitter: 1.14 grms
Medium conditions
Temperature of medium
•
NBR - 10 ... +70
°
C (14 ... 158
°
F) -
•
EPDM - 10 ... +70
°
C (14 ... 158
°
F) -
•
Ebonite - - 10 ... +70
°
C (14 ... 158
°
F)
EMC 89/336 EEC 89/336 EEC

Siemens MAG 5000 Specifications

General

Type	Electromagnetic Flowmeter
Protection Class	IP67
Material	Stainless Steel, Carbon Steel
Power Supply	24 V DC, 100-240 V AC
Accuracy	±0.2% of flow rate
Communication	HART, PROFIBUS, Modbus
Enclosure Rating	IP67
Ambient Temperature Range	-20°C to +60°C
Sizes	DN 2 to DN 3000
Lining Materials	PTFE, Hard Rubber
Electrode Materials	Stainless Steel, Hastelloy, Tantalum
Process Temperature	-40 to +180 °C (-40 to +356 °F) depending on liner
Process Pressure	Up to 40 bar (580 psi)
Approvals	ATEX, FM, CSA, IECEx
Flow Velocity Range	0 to 12 m/s
Output Signals	4-20 mA, Pulse, Frequency
