7ML19981FB05 MultiRanger 100/200 – INSTRUCTION MANUAL Page 81
mmmmm
Open Channel Monitoring
MR 200
Cut Throat Flume
Application Information
• Similar to Parshall flume except that the floor is flat bottomed and throat has no
virtual length.
• Refer to manufacturer’s specifications for flow equation and point of head
measurement.
Flume Size
(pipe diameter in inches)
Point of Measurement
cm inches
4-12 2.5 1
15 3.2 1¼
18 4.4 1¾
21 5.1 2
24 6.4 2½
30 7. 6 3
42 8.9 3½
48 10.2 4
54 11.4 4½
60 12.7 5
66 14.0 5½
72 15.2 6
Parameter Index Value
P600 G 1–Cut Throat Flume
P601 G 1.55
P603 G Maximum Head (preset P007)
P604 G Maximum Flow
P606 G Time Units

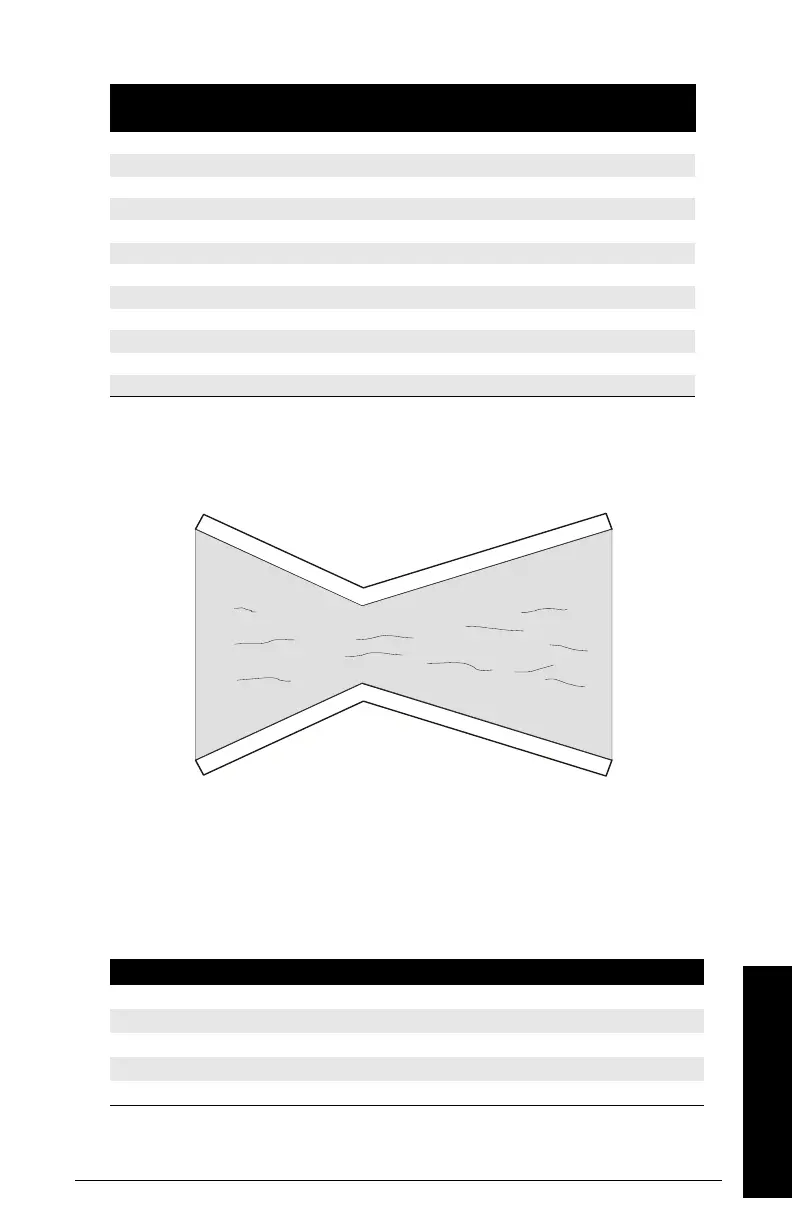

Plan View

Siemens MAG 5000 Specifications

General

Type	Electromagnetic Flowmeter
Protection Class	IP67
Material	Stainless Steel, Carbon Steel
Power Supply	24 V DC, 100-240 V AC
Accuracy	±0.2% of flow rate
Communication	HART, PROFIBUS, Modbus
Enclosure Rating	IP67
Ambient Temperature Range	-20°C to +60°C
Sizes	DN 2 to DN 3000
Lining Materials	PTFE, Hard Rubber
Electrode Materials	Stainless Steel, Hastelloy, Tantalum
Process Temperature	-40 to +180 °C (-40 to +356 °F) depending on liner
Process Pressure	Up to 40 bar (580 psi)
Approvals	ATEX, FM, CSA, IECEx
Flow Velocity Range	0 to 12 m/s
Output Signals	4-20 mA, Pulse, Frequency
