Page 76 MultiRanger 100/200 – INSTRUCTION MANUAL 7ML19981FB05
mmmm
m
Open Channel Monitoring
MR 200

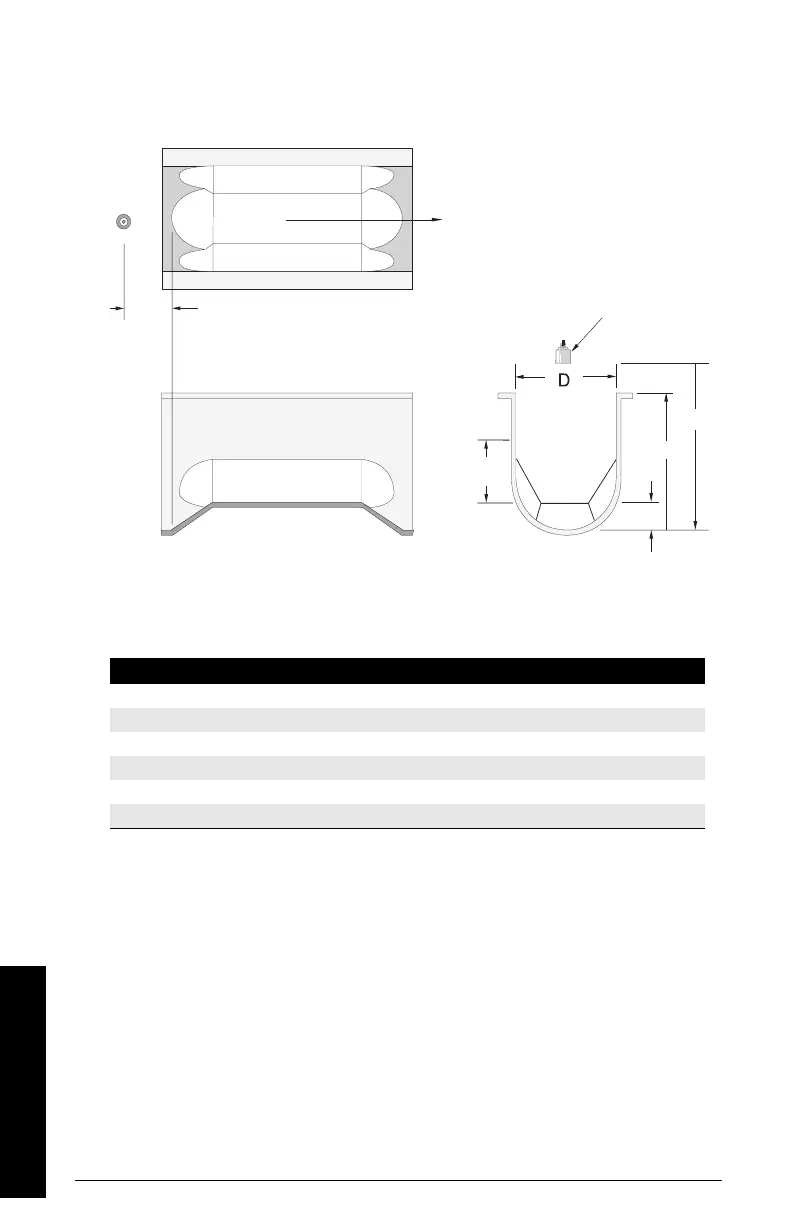

Palmer Bowlus Flume
Application Information
• Sized by pipe diameter D
• Flume relief is trapezoidal
• Designed to install directly into pipelines and manholes
• Head is referenced to bottom of the throat, not bottom of the pipe
• For rated flows under free flow conditions, the head is measured at a distance of
D/2 upstream from the beginning of the converging section
Parameter Index Value
P600 G 2–Palmer Bowlus Flume
P602 1 Flume width (D)
P603 G Maximum Head (preset = P007)
P604 G Maximum Flow
P605 G Zero Head
P606 G Time Units
P006
P007
P605
P603
Transducer
D/2, point of
measurement
Flow
Plan View
Front View
Side View

Siemens MAG 5000 Specifications

General

Type	Electromagnetic Flowmeter
Protection Class	IP67
Material	Stainless Steel, Carbon Steel
Power Supply	24 V DC, 100-240 V AC
Accuracy	±0.2% of flow rate
Communication	HART, PROFIBUS, Modbus
Enclosure Rating	IP67
Ambient Temperature Range	-20°C to +60°C
Sizes	DN 2 to DN 3000
Lining Materials	PTFE, Hard Rubber
Electrode Materials	Stainless Steel, Hastelloy, Tantalum
Process Temperature	-40 to +180 °C (-40 to +356 °F) depending on liner
Process Pressure	Up to 40 bar (580 psi)
Approvals	ATEX, FM, CSA, IECEx
Flow Velocity Range	0 to 12 m/s
Output Signals	4-20 mA, Pulse, Frequency
