39

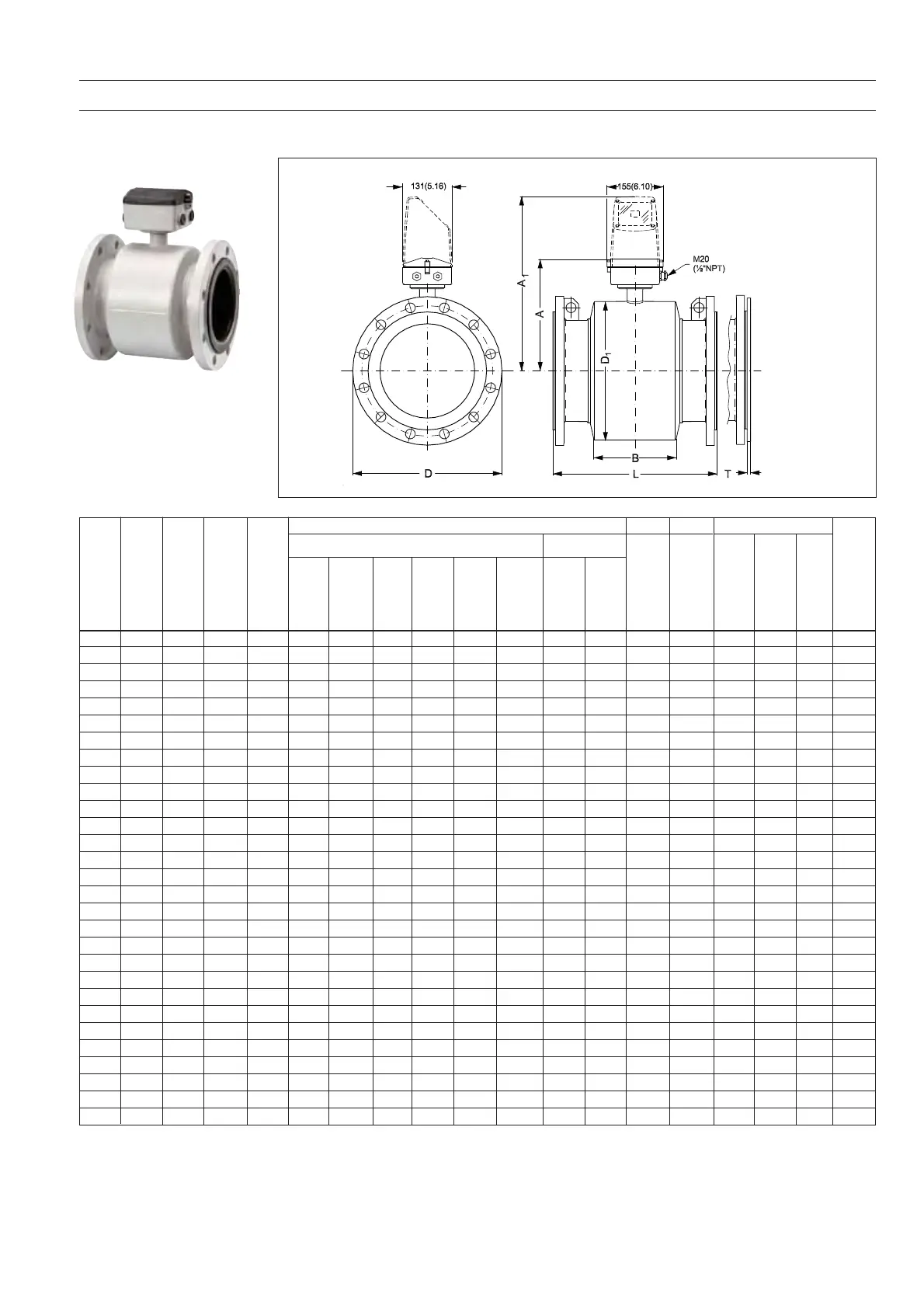

SITRANS F M 4. Dimensions and weight
4.4
Sensor MAG 3100
MAG 3100, compact/remote
DN A
1)
A
1
BD
1
L
2)
T (grounding ring)
AS AWWA
2129 E, C-207
PN PN 16/ PN PN PN PN Class Class
AS 4087 Class
6, 10 PN 16 25 40 63 100 150 300 PN D
non 16-21- Type Type Type
PED 35 C E
3)
F
4)
[mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [kg]
15 187 338 59 104 200 200 200 200 - - 200 200 200 - - 6 2 4
25 187 338 59 104 200 200 200 200 - 260 200 200 200 - 1,2 6 2 5
40 197 348 82 124 200 200 200 200 - 280 200 200 200 - 1,2 6 2 8
50 205 356 72 139 200 200 200 200 276 300 200 200 200 - 1,2 6 2 9
65 212 363 72 154 200 200 200 200 320 350 200 272 200 - 1,2 6 2 11
80 222 373 72 174 200 200 272 272 323 340 272 272 200
6)
- 1,2 6 2 12
100 242 393 85 214 250 250 250 250 380 400 250 310 250 - 1.2 6 2 16
125 255 406 85 239 250 250 250 250 420 450 250 335 250 - 1.2 6 2 19
150 276 427 85 282 300 300 300 300 415 450 300 300 300 - 1.2 6 2 27
200 304 455 137 338 350 350 350 350 480 530 350 350 350 - 1.2 8 2 40
250 332 483 137 393 450 450 450 450 550 620 450 450 450 - 1.2 8 2 60
300 357 508 137 444 500 500 500 500 600 680 500 500 500 - 1.6 8 2 80
350 362 513 270 451 550 550 550 550 - - 550 550 550 - 1.6 8 - 110
400 387 538 270 502 600 600 600 600 - - 600 600 600 - 1.6 10 - 125
450 418 569 310 563 600 600 600 600 - - 600 640 600 - 1.6 10 - 175
500 443 594 350 614 600 600 625 680 - - 600 730 600
7)
- 1.6 10 - 200
600 494 645 430 715 600 600 750 800 - - 600 860 600
8)
- 1.6 10 - 287
700 544 695 500 816 700 700 - - - - - - 700 700 2.0 - - 330
750 571 722 556 869 - - - - - - - - 750 750 2.0 - - 360
800 606 757 560 927 800 800 - - - - - - 800 800 2.0 - - 450
900 653 804 630 1032 900 900 - - - - - - 900 900 2.0 - - 530
1000 704 906 670 1136 1000 1000 - - - - - - 1000 1000 2.0 - - 660
1100 755 906 770 1238 - - - - - - - - 1100 1400 2.0 - - 1140
1200 810 961 792 1348 1200 1200 - - - - - - 1200 1200 2.0 - - 1180
1400 925 1076 1000 1675 1400 1400 - - - - - - - 1400 2.0 - - 1600
1500 972 1123 1020 1672 - - - - - - - - - 1500 3.0 - - 2460
1600 1025 1176 1130 1915 1600 1600 - - - - - - - 1600 3.0 - - 2140
1800 1123 1274 1250 1974 1800 1800 - - - - - - - 1800 3.0 - - 2930
2000 1223 1374 1375 2174 2000 2000 - - - - - - - 2000 3.0 - - 3665
Weight
5)
EN 1092-1-2001 ANSI 16.5
1)
14.5 mm shorter when the AISI terminal box is used (Ex or high
temperature 200 °C version)
2)
When earthing flanges are used, the thickness of the earthing flange must
be added to the build-in length
3)
Included and factory-mounted on high temperature 180 °C PTFE
4)
Tantalum flat type grounding ring 1 mm
5)
Weights are approx. (for PN 16) without transmitter
6)
PN 35 DN 80 = 272 mm
7)
PN 35 DN 500 = 680 mm
8)
PN 35 DN 600 = 750 mm
D = Outside diameter of flange, see flange tables

Siemens MAG 5000 Specifications

General

Type	Electromagnetic Flowmeter
Protection Class	IP67
Material	Stainless Steel, Carbon Steel
Power Supply	24 V DC, 100-240 V AC
Accuracy	±0.2% of flow rate
Communication	HART, PROFIBUS, Modbus
Enclosure Rating	IP67
Ambient Temperature Range	-20°C to +60°C
Sizes	DN 2 to DN 3000
Lining Materials	PTFE, Hard Rubber
Electrode Materials	Stainless Steel, Hastelloy, Tantalum
Process Temperature	-40 to +180 °C (-40 to +356 °F) depending on liner
Process Pressure	Up to 40 bar (580 psi)
Approvals	ATEX, FM, CSA, IECEx
Flow Velocity Range	0 to 12 m/s
Output Signals	4-20 mA, Pulse, Frequency
