Siemens MAG 5000 User Manual

71
SITRANS F M
8. Commissioning
0HQX
0HQX
7H[W
6HQVRUVL]H
7H[W
6HQVRUW\SH
(UURU
SHQGLQJ
6WDWXVORJ

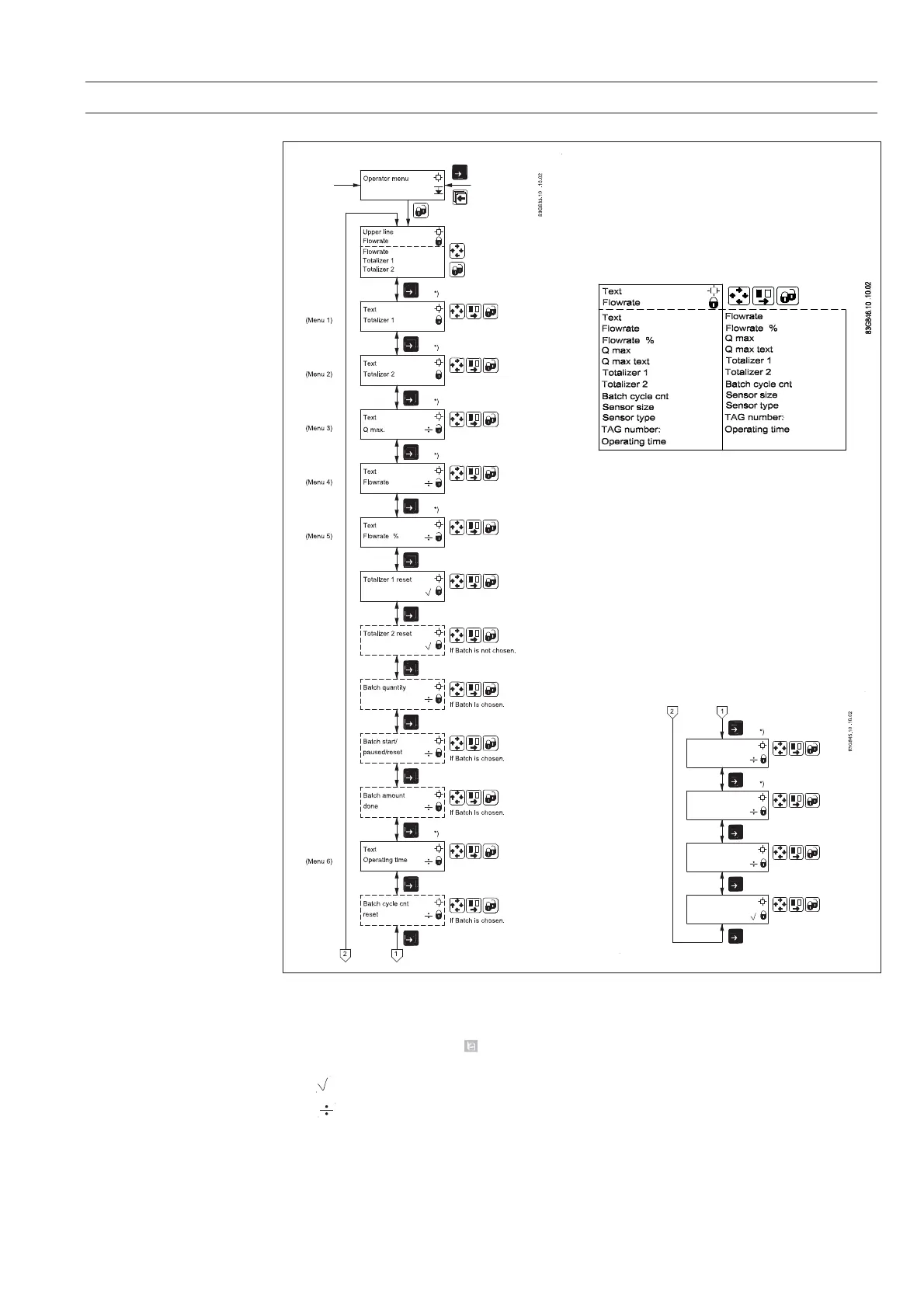

Menu setup
8.4.9
Operator menu setup
The upper line is always active and can never be deselected.
The two lower lines are for individual operator information. Information which the operator can scroll
through with the forward key
.
• A
in the operator menu setup, means that the menu is enabled when viewing the operator menu.
• A
means that the menu is not available in the operator menu.
The middle line can either be used as a heading “Text line” for the lower line, or as a flow reading.
A flow reading can be individually selected for each menu.
The lower line may be used for an additional flow reading to the reading already available in the
upper line.
Text means that the text for the chosen measured value is
shown.
For example if text is chosen in line 2 and flow rate is chosen in
line 3, the text “flow rate” is shown in line 2 and the measured
flow rate value is show in line 3.

Siemens MAG 5000 Specifications

General

Type	Electromagnetic Flowmeter
Protection Class	IP67
Material	Stainless Steel, Carbon Steel
Power Supply	24 V DC, 100-240 V AC
Accuracy	±0.2% of flow rate
Communication	HART, PROFIBUS, Modbus
Enclosure Rating	IP67
Ambient Temperature Range	-20°C to +60°C
Sizes	DN 2 to DN 3000
Lining Materials	PTFE, Hard Rubber
Electrode Materials	Stainless Steel, Hastelloy, Tantalum
Process Temperature	-40 to +180 °C (-40 to +356 °F) depending on liner
Process Pressure	Up to 40 bar (580 psi)
Approvals	ATEX, FM, CSA, IECEx
Flow Velocity Range	0 to 12 m/s
Output Signals	4-20 mA, Pulse, Frequency
