7ML19981FB05 MultiRanger 100/200 – INSTRUCTION MANUAL Page 237
mmmmm
Appendix C: Troubleshooting
If multiple echoes appear on the Echo Profile, typical of a flat material profile (especially if
the vessel top is domed), use the “first” Algorithm.
If the Echo Profile repeatedly switches from short to long, adjust the Short Shot Range
(P852) to stabilize the “shot” mode used for the echo evaluation. Also, adjust the Short
Shot Bias to increase (or decrease the amount of preference given to short shot echoes
over long shot echoes.
Should a stable measurement still not be attainable, contact Siemens Milltronics or your
local distributor.
Transducer Ringing
If the transducer is mounted too tightly, or if it is mounted so that its side touches
something, its resonance characteristics change and this can cause problems.

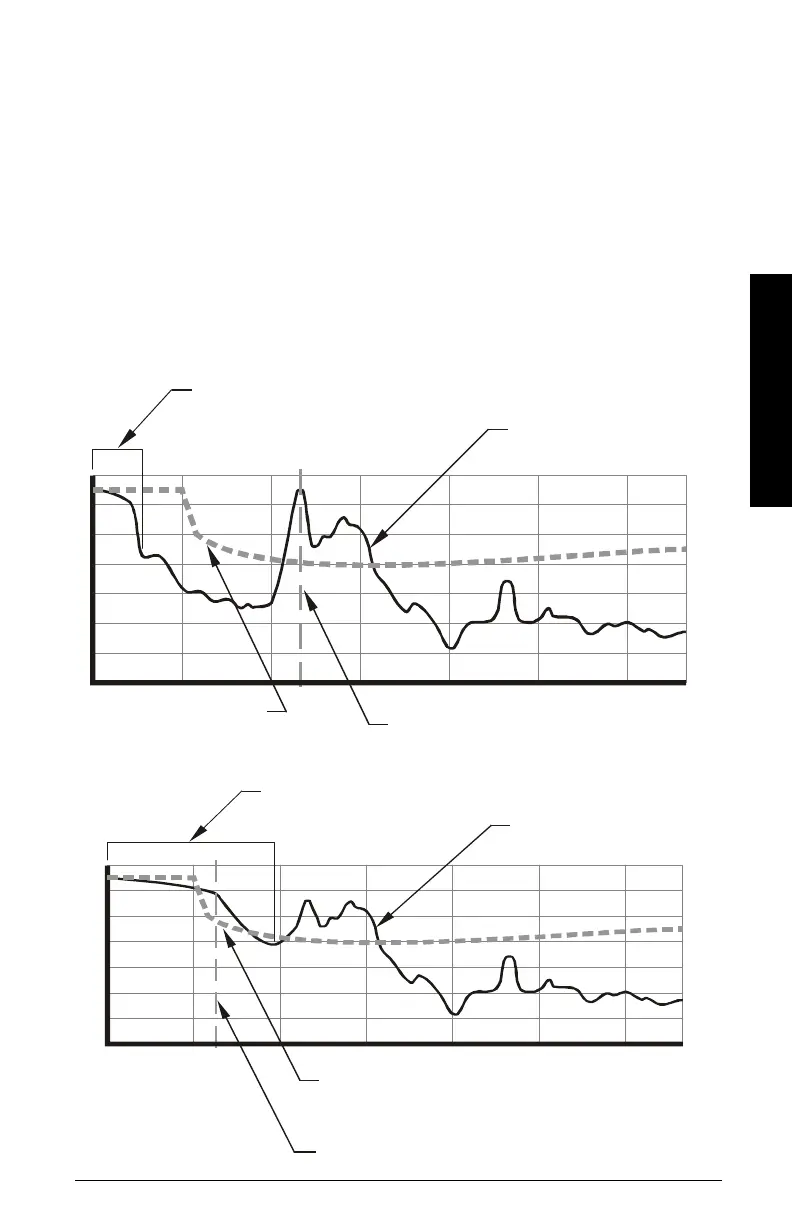

Normal Ring Down
Poor Ring Down
Ring Down
Echo Profile
TVT curve
Time of Correct Echo
Ring Down
Echo Profile
TVT Curve
Time of false echo from ringing

Siemens MAG 5000 Specifications

General

Type	Electromagnetic Flowmeter
Protection Class	IP67
Material	Stainless Steel, Carbon Steel
Power Supply	24 V DC, 100-240 V AC
Accuracy	±0.2% of flow rate
Communication	HART, PROFIBUS, Modbus
Enclosure Rating	IP67
Ambient Temperature Range	-20°C to +60°C
Sizes	DN 2 to DN 3000
Lining Materials	PTFE, Hard Rubber
Electrode Materials	Stainless Steel, Hastelloy, Tantalum
Process Temperature	-40 to +180 °C (-40 to +356 °F) depending on liner
Process Pressure	Up to 40 bar (580 psi)
Approvals	ATEX, FM, CSA, IECEx
Flow Velocity Range	0 to 12 m/s
Output Signals	4-20 mA, Pulse, Frequency
