Page 24 MultiRanger 100/200 – INSTRUCTION MANUAL 7ML19981FB05
mmmmm
Operation
Controlling the Display
RUN mode provides numerous parameters and variables that you can track on the
display (see Display on page 21).
The LCD displays EEEE if a value is too long.
Adjusting the primary reading for four-digit LCD readout:

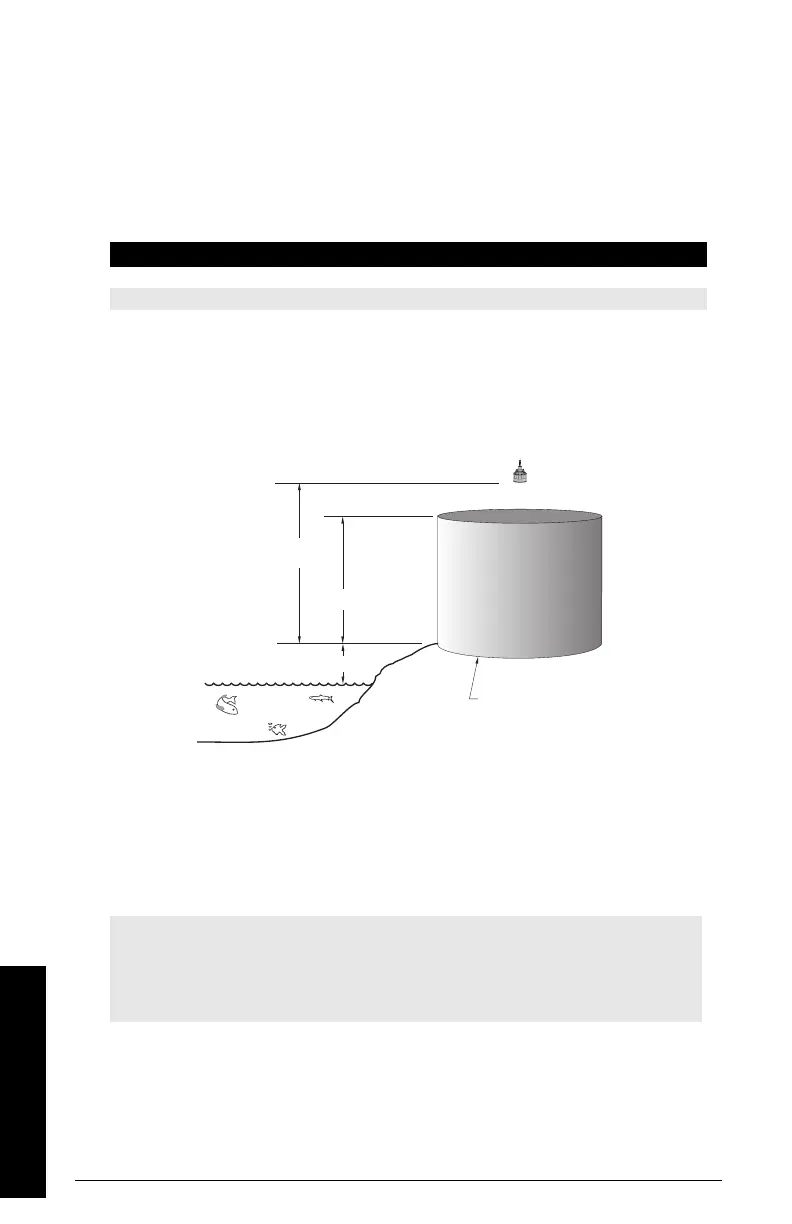

Example
To reference the displayed level to sea level, enter the distance in Units (P005), between
Empty (P006) and sea level. (Enter a negative value if Empty is below sea level.)
P062 is the distance between sea level and Empty.
Auxiliary Reading
The Auxiliary Reading area of the LCD displays parameter values while leaving the
primary reading on screen.
Parameter Action
P060 Decimal Position Sets maximum number of decimals
P061 Convert Reading Scales the reading to fit
P062 Offset Reading Shifts the reading up or down by a fixed amount
Note: The parameters shown in the auxiliary reading field are indexed as follows:
•global
•by transducer
• by level
P007
P006
Reservoir
P062
Sea Level

Siemens MAG 5000 Specifications

General

Type	Electromagnetic Flowmeter
Protection Class	IP67
Material	Stainless Steel, Carbon Steel
Power Supply	24 V DC, 100-240 V AC
Accuracy	±0.2% of flow rate
Communication	HART, PROFIBUS, Modbus
Enclosure Rating	IP67
Ambient Temperature Range	-20°C to +60°C
Sizes	DN 2 to DN 3000
Lining Materials	PTFE, Hard Rubber
Electrode Materials	Stainless Steel, Hastelloy, Tantalum
Process Temperature	-40 to +180 °C (-40 to +356 °F) depending on liner
Process Pressure	Up to 40 bar (580 psi)
Approvals	ATEX, FM, CSA, IECEx
Flow Velocity Range	0 to 12 m/s
Output Signals	4-20 mA, Pulse, Frequency
