SITRANS F M

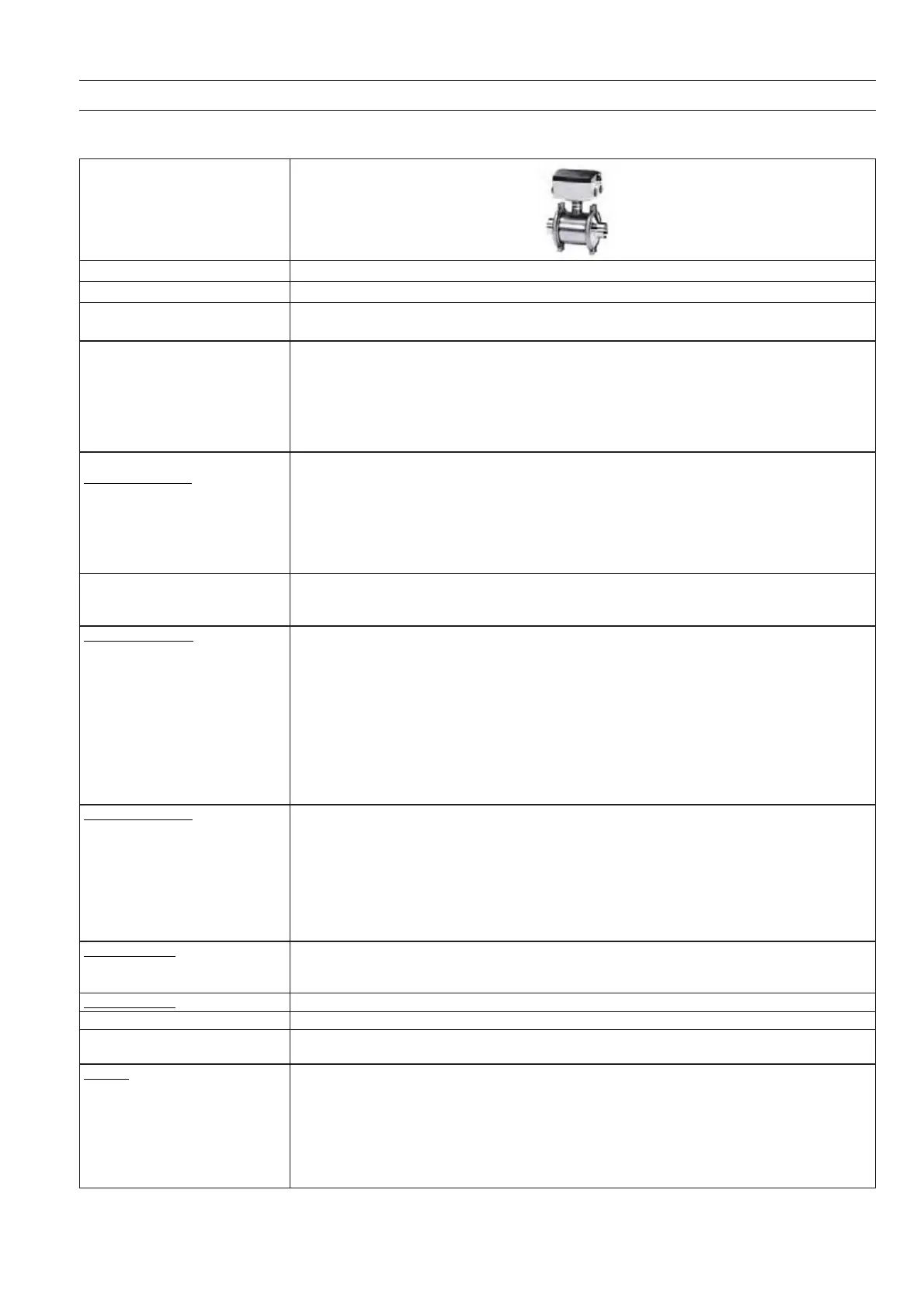

2. Technical data
Type MAG 1100 F
Measuring principle Electromagnetic induction
Excitation frequency DN 10 ... 65 (¼" … 2½"): 12.5 Hz / 15 Hz
(Main supply: 50 Hz / 60 Hz) DN 80 ... 100 (3”, 4”): 6.25 Hz / 7.5 Hz
Process connection
Nominal size DN 10 … DN 100 (
3
/
8
" … 4")
Process connection Hygienic adapters available for:
• Direct welding onto pipe
• Clamp fitting
• Threaded fitting
Rated operating conditions
Ambient conditions
Ambient temperature
1)
• Sensor -40 … +100 °C (-40 … +212 °F)
• Sensor ATEX -20 … +60 °C (-4 … +140 °F)
• Compact transmitter
MAG 5000/6000 -20 … +50 °C (-4 … +122 °F)
Temperature of medium
MAG 1100 F (Ceramic) -20 … +150 °C (-4 … +300 °F) Suitable for steam sterilization
MAG 1100 F (PFA) -30 … +130 °C (-20 … +270 °F) Suitable for steam steralization at 150 °C (300 °F)
Temperature shock
MAG 1100 F
• Duration ≤ 1 min, followed by
10
min rest • DN 10, 15, 25: Max. ΔT ≤ 80 °C/min
(
3
/
8
", ½", 1": Max. ΔT ≤ 80 °C/min)
• DN 40, 50, 65: Max. ΔT ≤ 70 °C/min
(1½", 2", 2½": Max. ΔT ≤ 70 °C/min)
•
DN 80, 100: Max. ΔT ≤ 60 °C/min
(3", 4": Max. ΔT ≤ 60 °C/min)
MAG 1100 F (PFA) Max. ± 100 °C (210 °F) momentarily
Operating pressure
MAG 1100 F (Ceramic) DN 10 ... 65: 40 bar (
3
/
8
" … 2½": 580 psi)
DN 80: 37.5 bar (3": 540 psi)
DN 100: 30 bar (4": 435 psi)
Vacuum: 1 x 10
-6
bar
abs
(1.5 x 10
-5
psi
abs
)
MAG 1100 F (PFA) 20 bar (290 psi)
Vacuum: 0.02 bar
abs
(0.3 psi
abs
)
DN 80 ... 100: CO
2
pressure max. 7 bar (101.5 psi)
Mechanical load 18 ... 1000 Hz random in x, y z, directions for 2 hours according to EN 60068-2-36
Sensor: 3.17 grms
Sensor with compact MAG 5000/6000 mounted transmitter: 3.17 grms
Enclosure rating IP67 to EN 60529 (NEMA 4X), 1 mH
2
O for 30 min
EMC 86/336 EEC
Design
Weight See dimensional drawings
Material
Enclosure
• MAG 1100 F Stainless steel AISI 316L (1.4404)
Terminal box (remote version only)
• Standard Fibre glass reinforced polyamide
• Option Stainless steel AISI 316 (1.4436)
• Ex ATEX (remote version only) Stainless steel AISI 316 (1.4436)
2.2 Sensor MAG 1100 F

Siemens MAG 5000 Specifications

General

Type	Electromagnetic Flowmeter
Protection Class	IP67
Material	Stainless Steel, Carbon Steel
Power Supply	24 V DC, 100-240 V AC
Accuracy	±0.2% of flow rate
Communication	HART, PROFIBUS, Modbus
Enclosure Rating	IP67
Ambient Temperature Range	-20°C to +60°C
Sizes	DN 2 to DN 3000
Lining Materials	PTFE, Hard Rubber
Electrode Materials	Stainless Steel, Hastelloy, Tantalum
Process Temperature	-40 to +180 °C (-40 to +356 °F) depending on liner
Process Pressure	Up to 40 bar (580 psi)
Approvals	ATEX, FM, CSA, IECEx
Flow Velocity Range	0 to 12 m/s
Output Signals	4-20 mA, Pulse, Frequency
