7ML19981FB05 MultiRanger 100/200 – INSTRUCTION MANUAL Page 21
mmmmm
Operation
Operating the MultiRanger
The MultiRanger has two modes of operation: RUN and PROGRAM.
RUN Mode
In RUN mode, the MultiRanger detects material level and provides control functions. The
MultiRanger automatically starts in RUN mode when power is applied.
System status is shown on the unit’s LCD, or on a remote communications terminal.

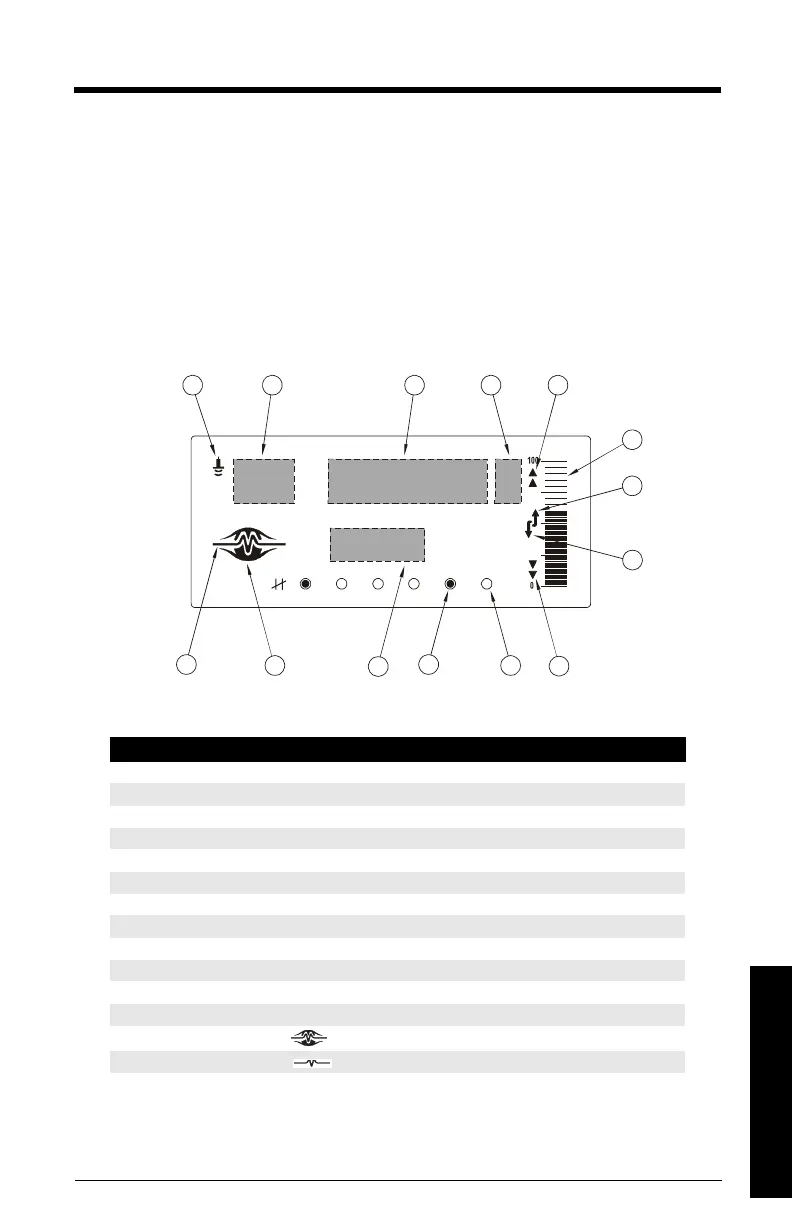

Display
Indicator Functions
RUN Mode PROGRAM Mode
1 index type (see below) index type (see next table)
2 index index
3 primary reading parameter value
4 units units
5 hi and hi hi alarm designation auxiliary function
6 level display n/a
7 filling display scroll access tag
8 emptying display scroll access tag
9 lo and lo lo alarm designation n/a
10 relay # programmed relay # programmed
11 relay # activated relay # activated
12 auxiliary reading parameter number
13
normal operation:
n/a
14 failsafe operation: n/a
1234 65
?
12
34
5
6
7
8
9
10
1112
13
14

Siemens MAG 5000 Specifications

General

Type	Electromagnetic Flowmeter
Protection Class	IP67
Material	Stainless Steel, Carbon Steel
Power Supply	24 V DC, 100-240 V AC
Accuracy	±0.2% of flow rate
Communication	HART, PROFIBUS, Modbus
Enclosure Rating	IP67
Ambient Temperature Range	-20°C to +60°C
Sizes	DN 2 to DN 3000
Lining Materials	PTFE, Hard Rubber
Electrode Materials	Stainless Steel, Hastelloy, Tantalum
Process Temperature	-40 to +180 °C (-40 to +356 °F) depending on liner
Process Pressure	Up to 40 bar (580 psi)
Approvals	ATEX, FM, CSA, IECEx
Flow Velocity Range	0 to 12 m/s
Output Signals	4-20 mA, Pulse, Frequency
