SITRANS F M
6. Installation of transmitter
55
6.2.8
Installation into the back
of a panel

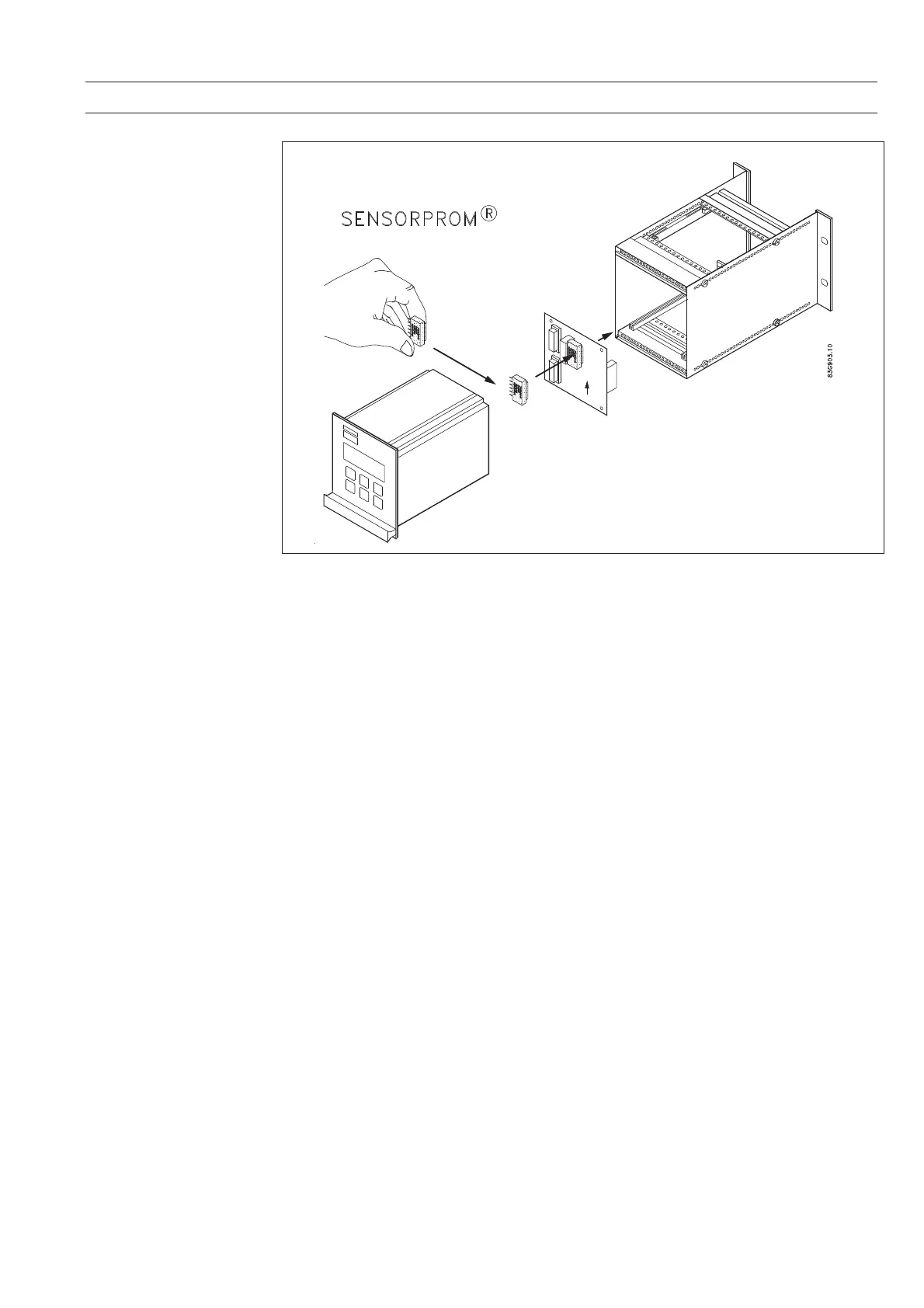

1. Mount the SENSORPROM
®
memory unit on the connection board as shown.
The SENSORPROM
®
unit is supplied with the sensor in the terminal box.
2. Mount the connection board into the back of the enclosure.
3. Connect the cables as shown under "Electrical connection", chapter 7.
4. Mount the enclosure into the back of a panel with four screws.
5. Insert the transmitter.

Siemens MAG 5000 Specifications

General

Type	Electromagnetic Flowmeter
Protection Class	IP67
Material	Stainless Steel, Carbon Steel
Power Supply	24 V DC, 100-240 V AC
Accuracy	±0.2% of flow rate
Communication	HART, PROFIBUS, Modbus
Enclosure Rating	IP67
Ambient Temperature Range	-20°C to +60°C
Sizes	DN 2 to DN 3000
Lining Materials	PTFE, Hard Rubber
Electrode Materials	Stainless Steel, Hastelloy, Tantalum
Process Temperature	-40 to +180 °C (-40 to +356 °F) depending on liner
Process Pressure	Up to 40 bar (580 psi)
Approvals	ATEX, FM, CSA, IECEx
Flow Velocity Range	0 to 12 m/s
Output Signals	4-20 mA, Pulse, Frequency
