7ML19981FB05 MultiRanger 100/200 – INSTRUCTION MANUAL Page 9
mmmmm
Installation
Mounting Instructions
The wall mount and panel mount units install differently. Please follow the specific
instructions for your unit.
Wall Mount

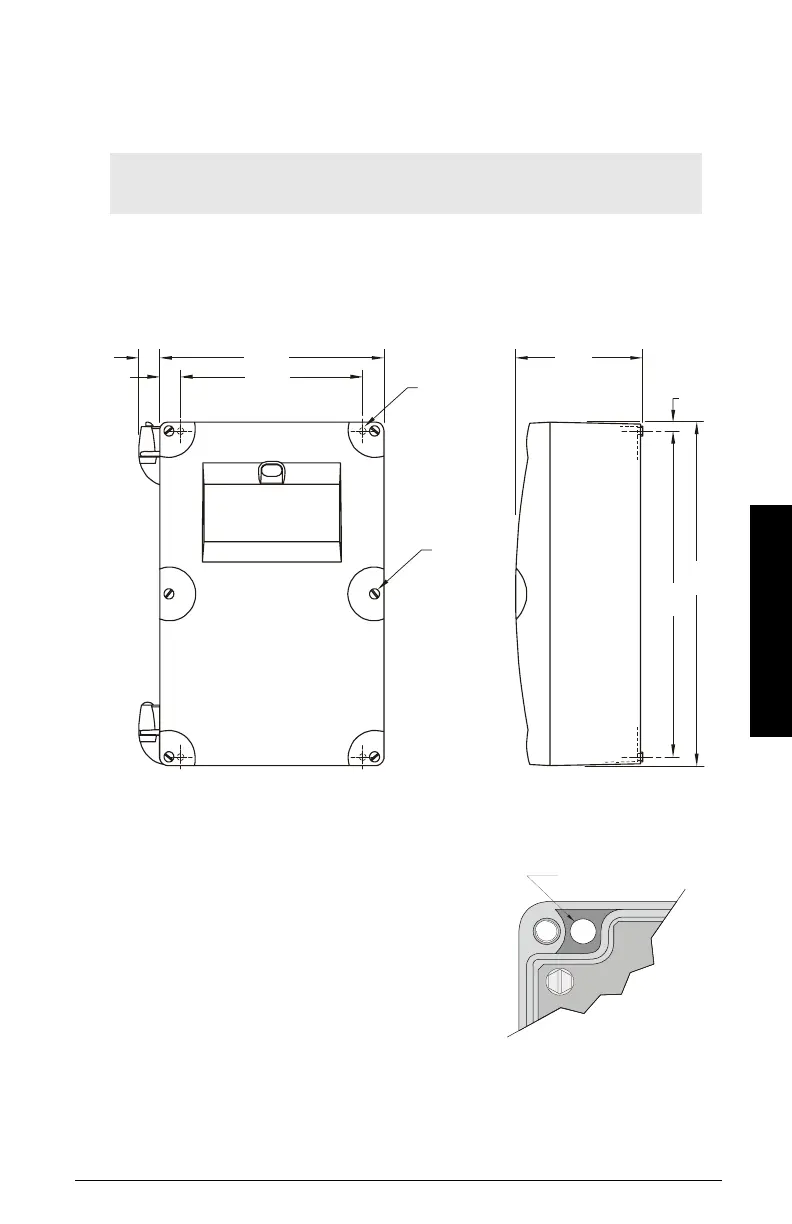

Enclosure Dimensions
Mounting the Enclosure
1. Remove the lid screws and open the lid to reveal the mounting screw holes.
2. Mark and drill four holes in the mounting
surface for the four screws (customer supplied).
3. Fasten with a long screwdriver.
Please note:
Recommended mounting: directly to wall or to
electrical cabinet back panel
Recommended mounting screws: #6
If alternate mounting surface is used, it MUST
be able to support four times the weight of the
unit.
Note: When routing cable through a conduit, please follow the Cable Routing
instructions on page 10 before mounting the MultiRanger.
160.3 mm
(6.325")
130 mm
(5.125")
91 mm
(3.58")
6.6 mm
(0.26")
240 mm
(9.45")
227 mm
(8.93")
4.3 mm dia.
(0.17")
four mounting
holes
14.9 mm
(0.58")
15.2 mm
(0.6")
lid screws
(6)
mounting screw holes
