Siemens MAG 5000 User Manual

48
SITRANS F M
6. Installation of transmitter

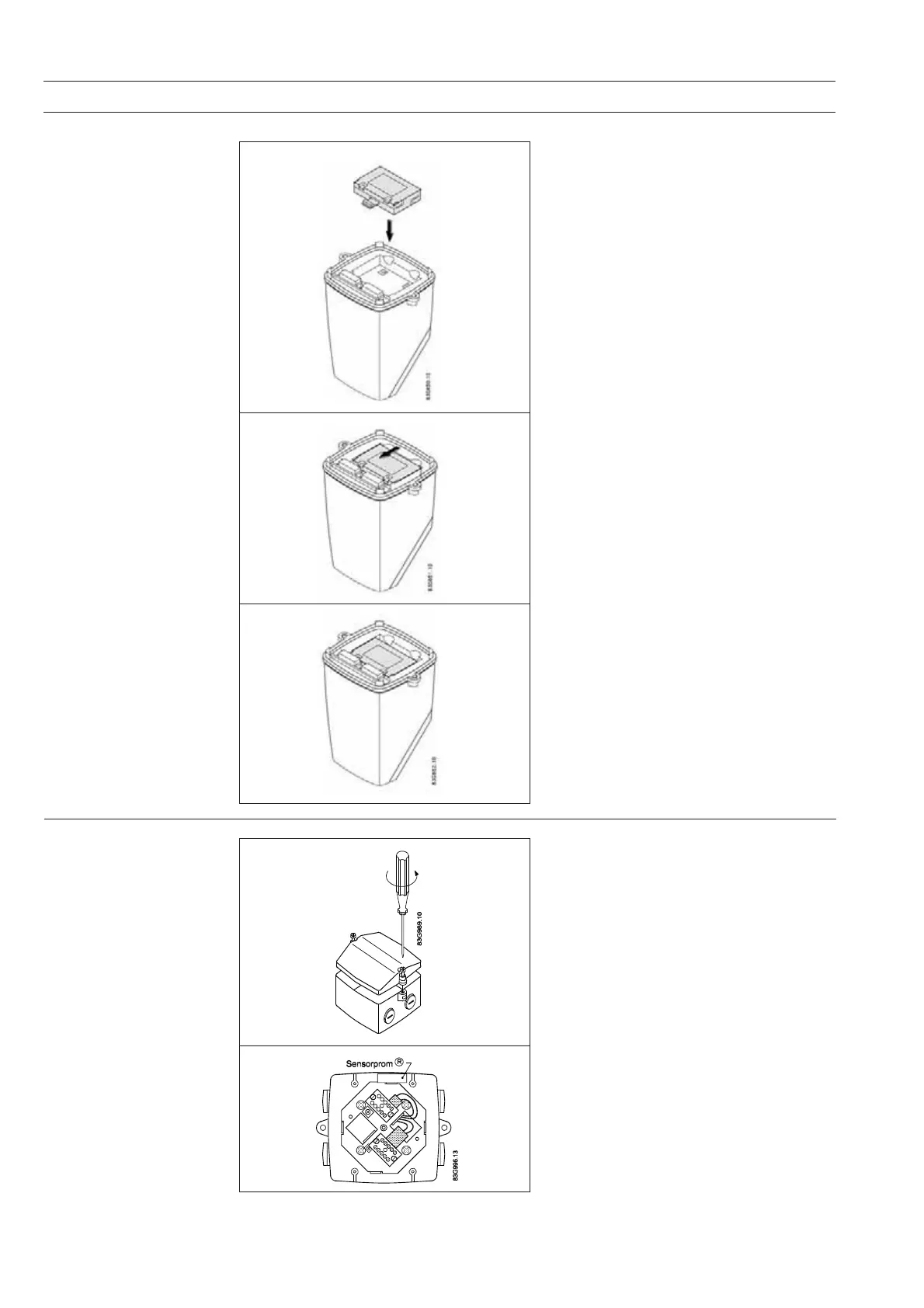

Locate the add-on module in the bottom of the
MAG 6000 transmitter.
6.2.1
Add-on modules
MAG 6000 only
Press the add-on module forwards as far as
possible.
The add-on module has now been installed
and the transmitter is ready to be installed on
the terminal box.
Communication to the operator menu and
electrically inputs and outputs is automatically
established by power on.
6.2.2
Remote installation -
At the sensor
Step 2
Remove the SENSORPROM
®
unit from the
sensor and mount it on the connection plate in
the transmitter.
Step 1
Remove the terminal box lid of the sensor.
