Page 28 MultiRanger 100/200 – INSTRUCTION MANUAL 7ML19981FB05
mmmmm
Operation
Dolphin Plus
(compatible with product software versions 1.06 and earlier)
1

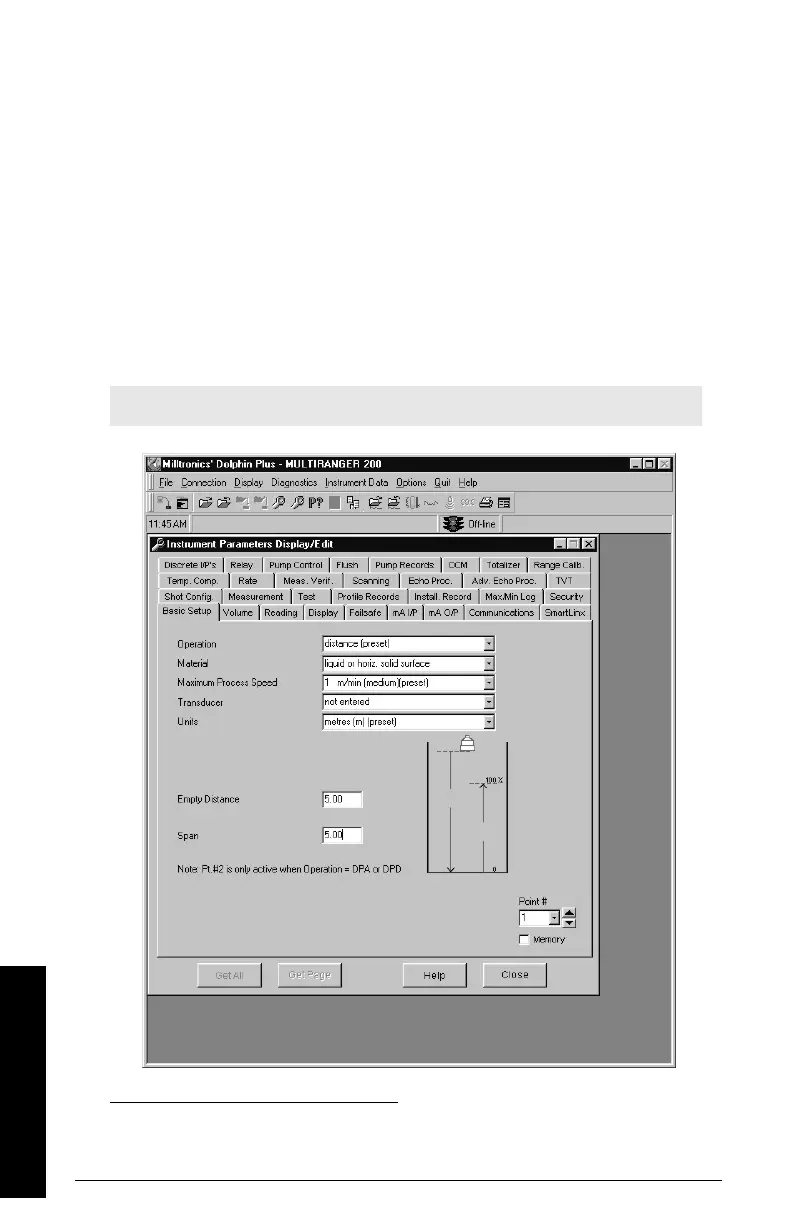

Use Dolphin Plus software to configure, monitor, tune, and diagnose the MultiRanger
from a PC or directly in the field with a laptop.
Dolphin Plus is easy to install and easy to use. Just load the software from the CD onto a
desktop PC or Laptop and then set up or modify complete parameter configurations in a
Windows
®2
environment.
After configuration, you can edit parameters, upload and download parameter sets to
and from disk, and use parameter sets saved from other instruments. You can also work
with echo profiles for fine tuning without the need for special instruments. Built-in Quick
Start features and Help files guide you through the entire process.
1.
See P900 for Software Revision Number.
2.
Windows is a registered trademark of Microsoft Corporation.
Note: Dolphin Plus is ordered separately from Siemens Milltronics.
