7ML19981FB05 MultiRanger 100/200 – INSTRUCTION MANUAL Page 77
mmmmm
Open Channel Monitoring
MR 200

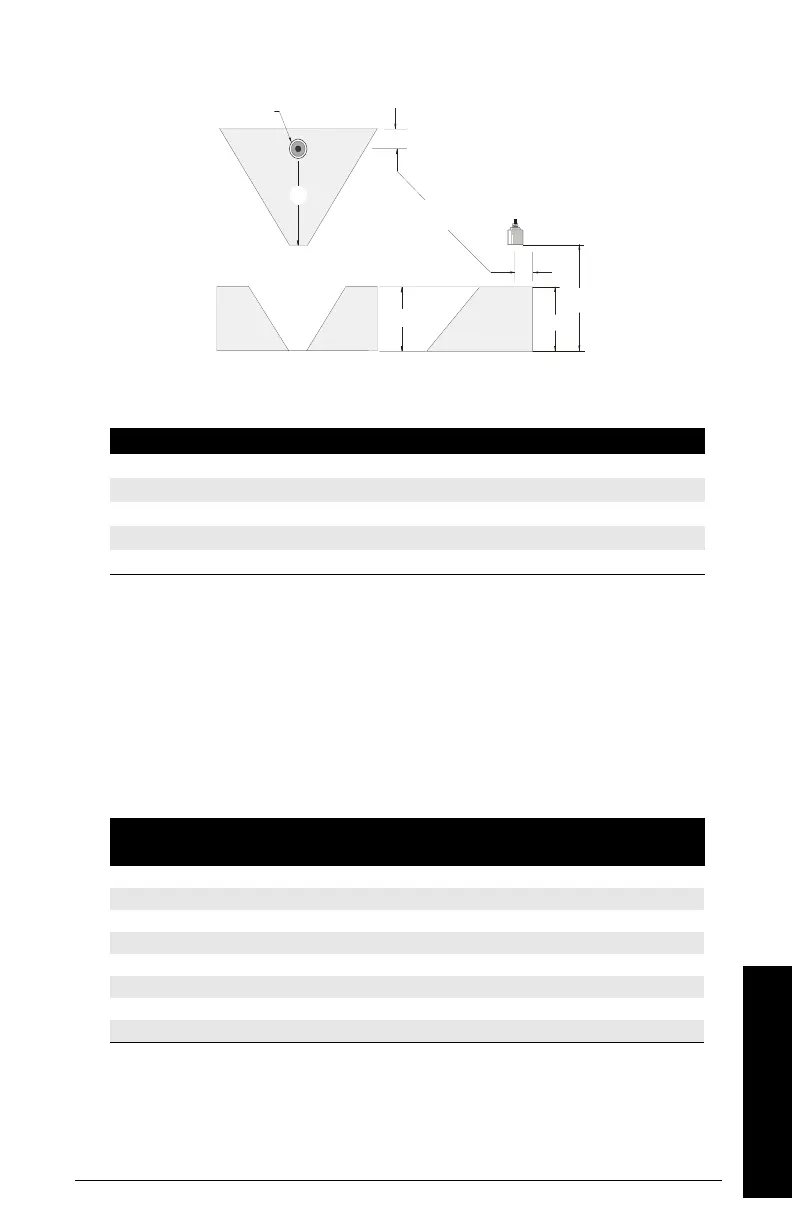

H Flume
• Sized by maximum depth of flume
• Approach is preferably rectangular, matching width and depth for distance 3 to 5
times the depth of the flume
• May be installed in channels under partial submergence (ratio of downstream level
to head). Typical errors are:
• 1% @ 30% submergence
• 3% @ 50% submergence
• For rated flows under free flow conditions, the head is measured at a point
downstream from the flume entrance
• H flumes come with a flat or sloping floor. The same flow table can be used because
error is less than 1%.
Parameter Index Value
P600 G 3–H Flume
P602 1 Flume height (D)
P603 G Maximum Head (preset = P007)
P604 G Maximum Flow
P606 G Time Units
Flume Size
(Diameter in feet)
Point of Measurement
cm inches
0.5 5 1¾
0.75 7 2¾
1.0 9 3¾
1.5 14 5½
2.0 18 7¼
2.5 23 9
3.0 28 10¾
4.5 41 16¼
Flow
D
Front View
Side View
Point of Measurement
Transducer
P006
P007
Plan View

Siemens MAG 5000 Specifications

General

Type	Electromagnetic Flowmeter
Protection Class	IP67
Material	Stainless Steel, Carbon Steel
Power Supply	24 V DC, 100-240 V AC
Accuracy	±0.2% of flow rate
Communication	HART, PROFIBUS, Modbus
Enclosure Rating	IP67
Ambient Temperature Range	-20°C to +60°C
Sizes	DN 2 to DN 3000
Lining Materials	PTFE, Hard Rubber
Electrode Materials	Stainless Steel, Hastelloy, Tantalum
Process Temperature	-40 to +180 °C (-40 to +356 °F) depending on liner
Process Pressure	Up to 40 bar (580 psi)
Approvals	ATEX, FM, CSA, IECEx
Flow Velocity Range	0 to 12 m/s
Output Signals	4-20 mA, Pulse, Frequency
