Siemens MAG 5000 User Manual

69
SITRANS F M
8. Commissioning
6HQVRU
FKDUDFWHULVWLFV
6HQVRUSURP
,QVWDOOHG
,QVWDOOHG
1RWLQVWDOOHG
6XSSUHVV3
6(162535201R
<HV
1R
6HQVRUVL]H
&DOLEUDWLRQIDFWRU
&RUUHFWLRQIDFWRU
([FLWDWLRQ

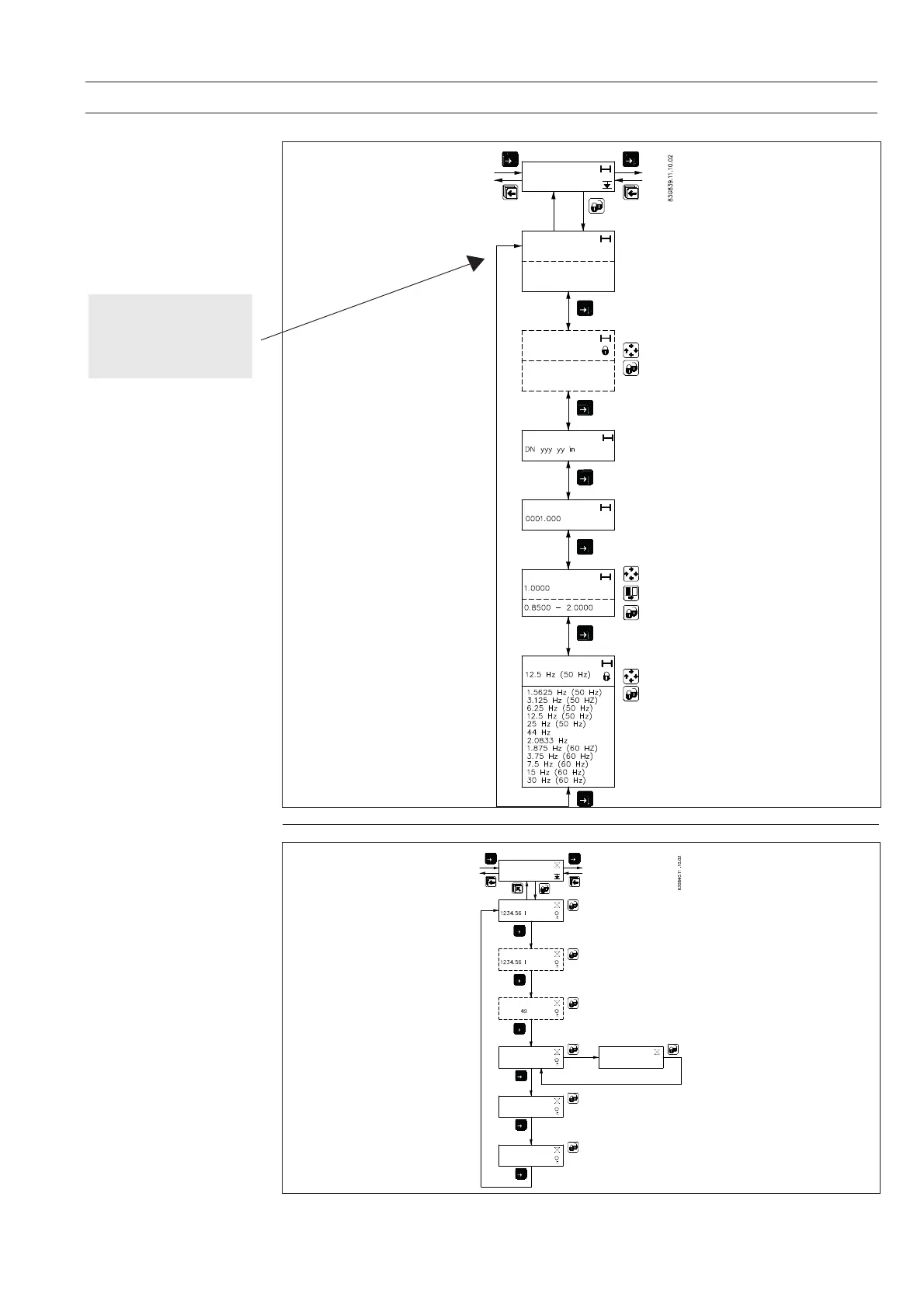

Menu detail
8.4.6
Sensor characteristics
8.4.7
Reset mode
5HVHW
PRGH
7RWDOL]HUUHVHW
7RWDOL]HUUHVHW
%DWFKF\FOHFQW
UHVHW
6HWGHIDXOW
VHWWLQJ
7RWDOL]HUSUHVHW
7RWDOL]HUSUHVHW
'HVWUR\RZQ
VHWWLQJV"
If “SENSORPROM not
installed” is shown, refer to
chapter 6 (depending on
type of mounting configura-
tion).

Siemens MAG 5000 Specifications

General

Type	Electromagnetic Flowmeter
Protection Class	IP67
Material	Stainless Steel, Carbon Steel
Power Supply	24 V DC, 100-240 V AC
Accuracy	±0.2% of flow rate
Communication	HART, PROFIBUS, Modbus
Enclosure Rating	IP67
Ambient Temperature Range	-20°C to +60°C
Sizes	DN 2 to DN 3000
Lining Materials	PTFE, Hard Rubber
Electrode Materials	Stainless Steel, Hastelloy, Tantalum
Process Temperature	-40 to +180 °C (-40 to +356 °F) depending on liner
Process Pressure	Up to 40 bar (580 psi)
Approvals	ATEX, FM, CSA, IECEx
Flow Velocity Range	0 to 12 m/s
Output Signals	4-20 mA, Pulse, Frequency
