Siemens MAG 5000 User Manual

38
SITRANS F M

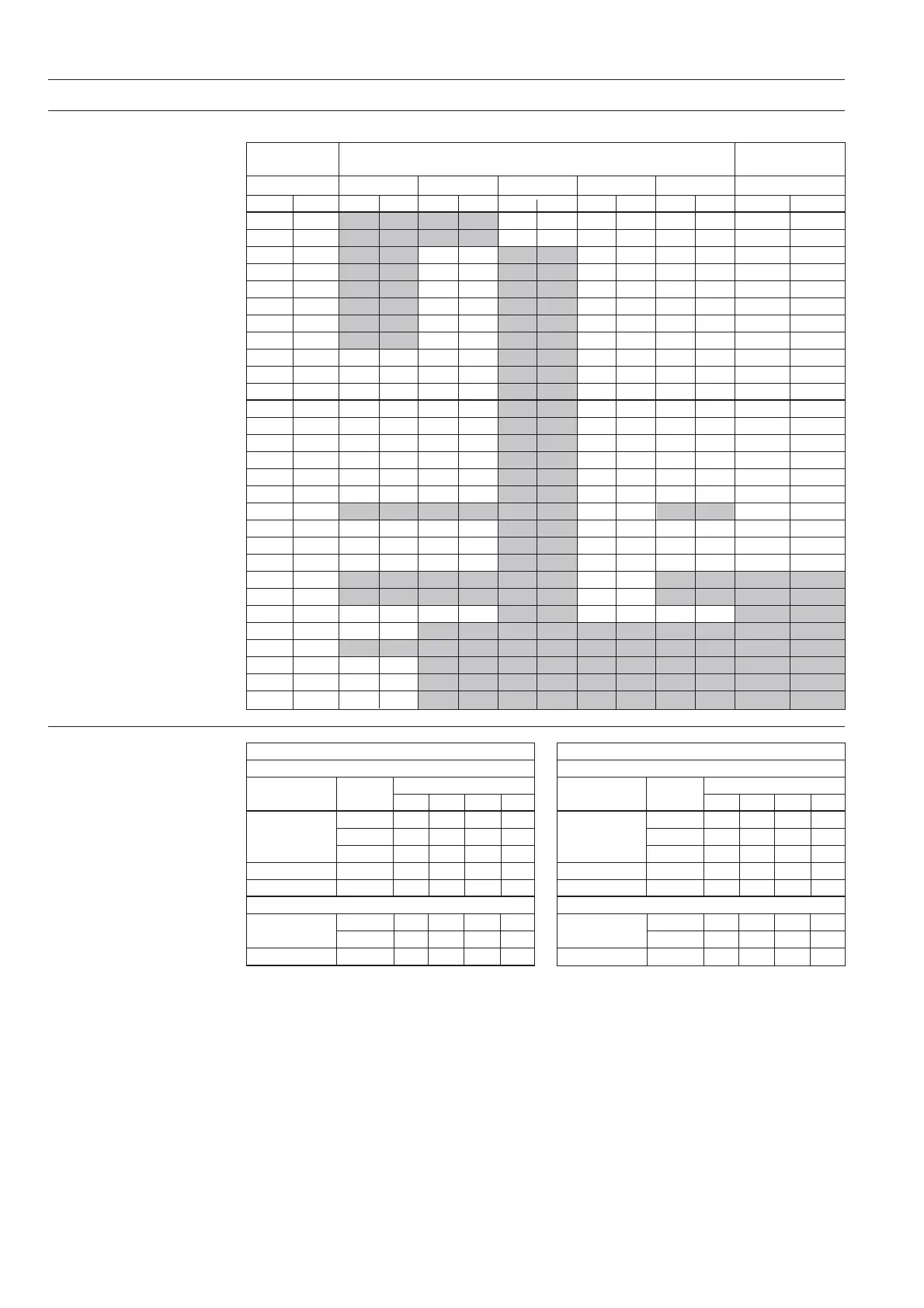

4. Dimensions and weight
AWWANominal size
PN 10
PN 16 PN 40 Class 150
MAG 5100 W weight
The effect of temperature on
working pressure
MAG 5100 W
Metric (pressures in bar)
Sizes 25 mm, 40 mm & > 300 mm
Flange spec. Flange Temperature
°°
°°
°C
rating −510 5090
EN 1092-1 PN 10 10.0 10.0 9.7 9.4
PN 16 16.0 16.0 15.5 15.1
PN 40 40.0 40.0 38.7 37.7
ANSI B16.45 150 lb 19.7 19.7 19.3 18.0
AWWA C-207 Class D 10.3 10.3 10.3 10.3
Sizes 50 mm ... 300 mm (order no. 7ME6520 only)
EN 1092-1 PN 10 10.0 10.0 10.0 8.2
PN 16 10.0 16.0 16.0 13.2
ANSI B16.45 150 lb 10.0 19.7 19.7 16.2
Imperial (pressures in psi)
Sizes 1", 1½”, & > 12"
Flange spec. Flange Temperature
°°
°°
°F
rating 23 50 120 200
EN 1092-1 PN 10 145 145 141 136
PN 16 232 232 225 219
PN 40 580 580 561 547
ANSI B16.45 150 lb 286 286 280 261
AWWA C-207 Class D 150 150 150 150
Sizes 2" ... 12" (order no. 7ME6520 only)
EN 1092-1 PN 10 145 145 145 119
PN 16 145 232 232 191
ANSI B16.45 150 lb 145 286 286 235
mm inch kg lbs kg lbs kg lbs kg lbs kg lbs kg lbs
25 1" N/A N/A N/A N/A 4 9 4 9 4 9 5 11
40 1½” N/A N/A N/A N/A 7 15 6 13 7 15 8 17
50 2" N/A N/A 9 20 N/A N/A 8 20 9 20 9 20
65 2½” N/A N/A 10.7 24 N/A N/A 11 24 10.7 24 11 24
80 3" N/A N/A 11.6 26 N/A N/A 13 28 11.6 26 12 24
100 4" N/A N/A 15.2 33 N/A N/A 19 41 15.2 33 16 35
125 5" N/A N/A 20.4 45 N/A N/A 24 52 20.4 45 19 42
150 6" N/A N/A 26 57 N/A N/A 29 64 26 57 27 60
200 8" 48 106 48 106 N/A N/A 56 124 48 106 40 68
250 10" 64 141 69 152 N/A N/A 79 174 69 152 60 132
300 12" 76 167 86 189 N/A N/A 110 243 86 189 80 176
350 14" 104 229 125 274 N/A N/A 139 307 115 254 110 242
400 16" 119 263 143 314 N/A N/A 159 351 125 277 125 275
450 18" 136 299 173 381 N/A N/A 182 400 141 311 175 385
500 20" 163 359 223 491 N/A N/A 225 495 189 418 200 440
600 24" 236 519 338 744 N/A N/A 320 704 301 664 287 633
700 28" 270 595 314 692 N/A N/A 273 602 320 704 330 728
750 30" N/A N/A N/A N/A N/A N/A 329 725 N/A N/A 360 794
800 32" 346 763 396 873 N/A N/A 365 804 428 944 450 992
900 36" 432 951 474 1043 N/A N/A 495 1089 619 1362 530 1168
1000 40" 513 1130 600 1321 N/A N/A 583 1282 636 1399 660 1455
42" N/A N/A N/A N/A N/A N/A 687 1512 N/A N/A N/A N/A
44 N/A N/A N/A N/A N/A N/A 763 1680 N/A N/A 1140 2513
1200 48 643 1415 885 1948 N/A N/A 861 1896 813 1789 1180 2601
1400 54 1592 3510 N/A N/A N/A N/A N/A N/A N/A N/A 1600 3528
1500 60 N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A 2460 5423
1600 66 2110 4652 N/A N/A N/A N/A N/A N/A N/A N/A 2525 5566
1800 72 2560 5644 N/A N/A N/A N/A N/A N/A N/A N/A 2930 6460
2000 78 3640 8025 N/A N/A N/A N/A N/A N/A N/A N/A 3665 8080
Order No. 7ME6520
NBR or EPDM liner
Order No. 7ME6580
Ebonite liner
PN 16

Siemens MAG 5000 Specifications

General

Type	Electromagnetic Flowmeter
Protection Class	IP67
Material	Stainless Steel, Carbon Steel
Power Supply	24 V DC, 100-240 V AC
Accuracy	±0.2% of flow rate
Communication	HART, PROFIBUS, Modbus
Enclosure Rating	IP67
Ambient Temperature Range	-20°C to +60°C
Sizes	DN 2 to DN 3000
Lining Materials	PTFE, Hard Rubber
Electrode Materials	Stainless Steel, Hastelloy, Tantalum
Process Temperature	-40 to +180 °C (-40 to +356 °F) depending on liner
Process Pressure	Up to 40 bar (580 psi)
Approvals	ATEX, FM, CSA, IECEx
Flow Velocity Range	0 to 12 m/s
Output Signals	4-20 mA, Pulse, Frequency
