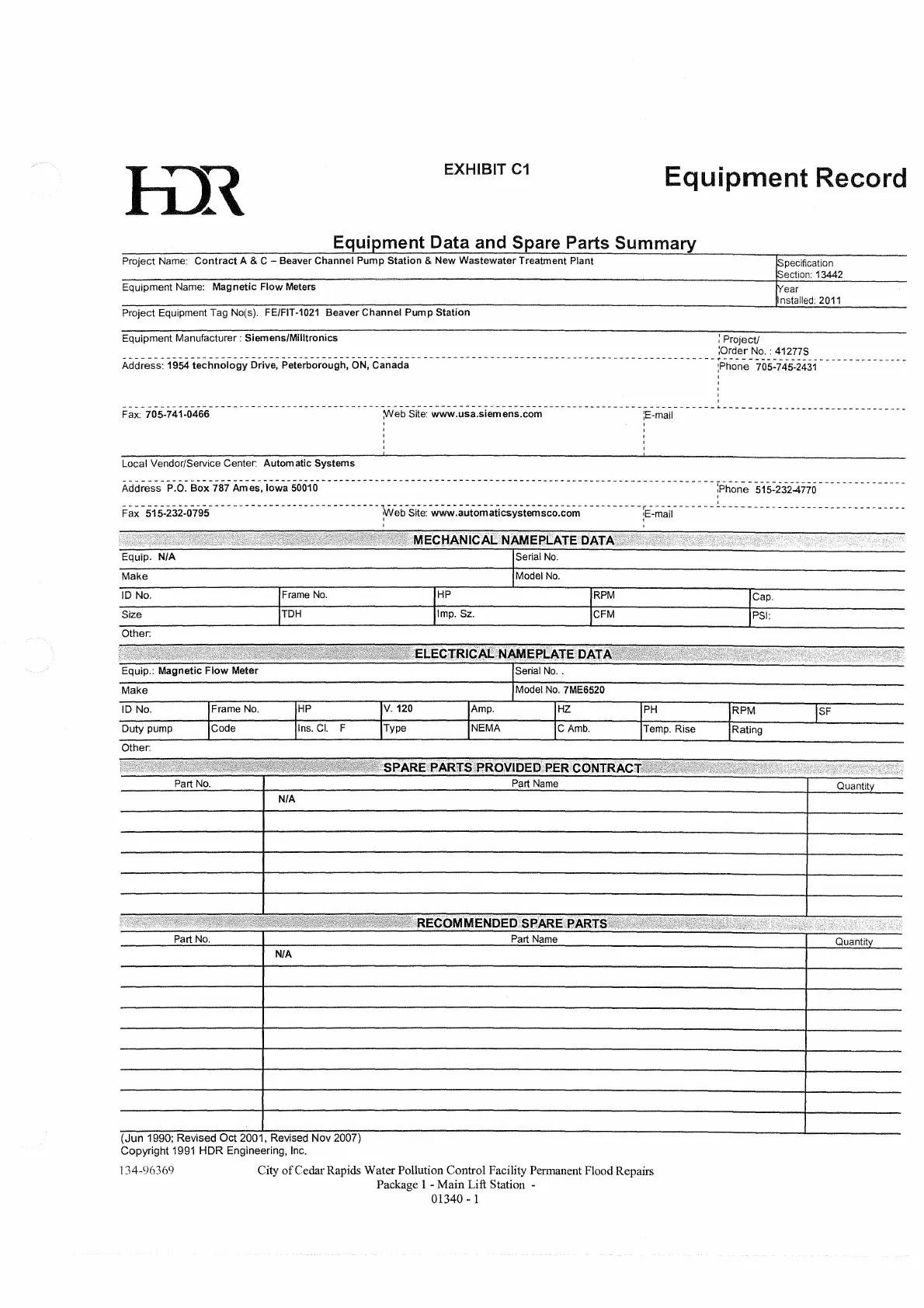

EXHIBIT C1
Equipment Record
Equi ment Data and Spare Parts Summary
Project Name: Contract A & C - Beaver Channel Pump Station & New Wastewater Treatment Plant
Equipment Name:
Magnetic Flow Meters
Project Equipment Tag No(s).
FE/FIT-1021 Beaver Channel Pump Station
Address: 1954 technology Drive, Peterborough, ON, Canada
Fax:
705-741·0466
,';';:;:;;;' ..
, .............
. t;UNI KAt;
\.'i;'!··~;;\\.;:r"'··
... . ..,. .. _ ...... ,.,,-
......
Part No.
Part Name
N/A
j···:.>:;:.:i·:<:::¥·::::;;.:>· •.•
w •• '/.
..•.•.
I "'.{"!'2]/.:£ i .• ;-;;-]'·.:;.: .•••. ~;.
Part No.
N/A
(Jun 1990; ReVised Oct 2001, ReVised Nov 2007)
Copyright 1991 HDR Engineering, Inc.
Part Name
134-96369 City of Cedar Rapids Water Pollution Control Facility Pennanent Flood Repairs
Package 1
- Main Lift Station -
01340 -
1
pecification
ection: 13442
ear
Installed: 2011
.> •
.. ··F. " ........
Quantity
.' "', :"
.
:
Quantity

Siemens MAG 5000 Specifications

General

Type	Electromagnetic Flowmeter
Protection Class	IP67
Material	Stainless Steel, Carbon Steel
Power Supply	24 V DC, 100-240 V AC
Accuracy	±0.2% of flow rate
Communication	HART, PROFIBUS, Modbus
Enclosure Rating	IP67
Ambient Temperature Range	-20°C to +60°C
Sizes	DN 2 to DN 3000
Lining Materials	PTFE, Hard Rubber
Electrode Materials	Stainless Steel, Hastelloy, Tantalum
Process Temperature	-40 to +180 °C (-40 to +356 °F) depending on liner
Process Pressure	Up to 40 bar (580 psi)
Approvals	ATEX, FM, CSA, IECEx
Flow Velocity Range	0 to 12 m/s
Output Signals	4-20 mA, Pulse, Frequency
