Page 250 MultiRanger 100/200 – INSTRUCTION MANUAL 7ML19981FB05
Appendix G
Product Group
2365031400
S. NGUYEN PETERBOROUGH 14/ AUG / 02 ULTRASONICS
FOR CONSTRUCTION
0
T. A DA M R. CLYSDALE
1 : 1
2
2
NONE

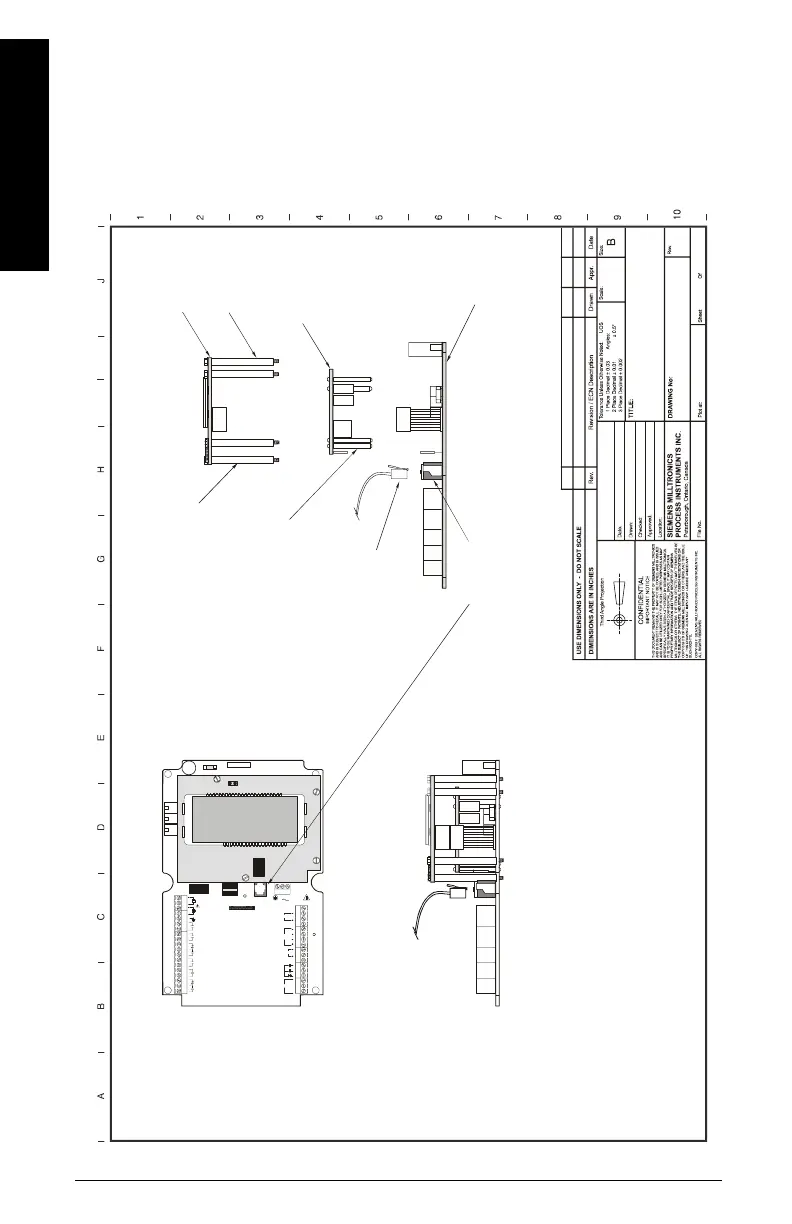

HINGED 6 X 9 ENCLOSURE WITH CONDUIT ENTREES & ASSEMBLE FOR CLASS 1 DIV 2 APPLICATIONS
23650314
0
RPC
SN
AUG
14/02
L2/N
L1
TB1
TB3
TB2
RELAY 1
RELAY 2
RELAY 3
RELAY 4
RELAY 5
RELAY 6
2
1
mA INPUT
SHIELD
SYNC
1
2
4 - 20 mA
OUTPUTS
TS-3
SHIELD
1
2
DISCRETE
INPUTS
RS485
B
A
COM
1.75”, 6-32
NYLON
STANDOFF
CERTIFIED
TYCO ELECTRONICS
MODULAR PLUG
5-641335
(SUPPLIED BY
CUSTOMER)
CERTIFIED
TYCO ELECTRONICS
MODULAR JACK
520425-2
(INSTALLED BY
SIEMENS MILLTRONICS)
POWER
SUPPLY
BOARD
MAIN
BOARD
1.12” RICHCO
DUAL LOCKING
MINI NYLON
STANDOFF
(4 PLACES)
1.75” , 6-32
BRASS
STANDOFF
(3 PLACES)
DISPLAY
BOARD
