Siemens simovert masterdrives

.03
.02
1
0

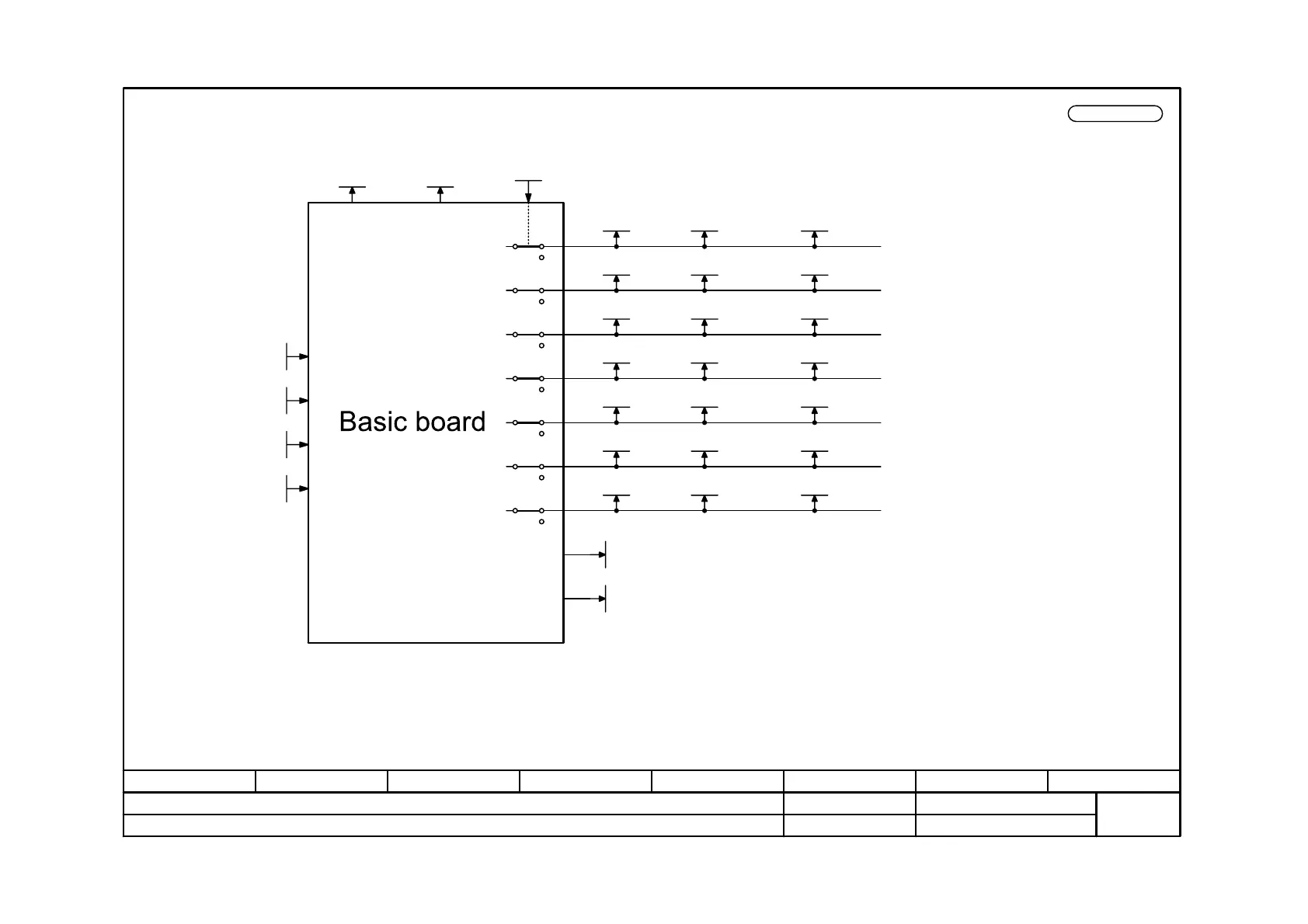

Function diagram
87654321
fp_mc_515_e.vsd
Hardware configuration
MASTERDRIVES MC
10.02.03
Part 1
-515 -
V2.5
Slot A (option board)
1
0
.04
1
0
.05
1
0
.06
1
0
.07
1
0
.08
1
0
Slot B (option board)
(only with Compact PLUS)
Slot C (option board)
Slot D (option board)
(not with Compact PLUS)
Slot E (option board)
(not with Compact PLUS)
Slot F (option board)
(not with Compact PLUS)
Slot G (option board)
(not with Compact PLUS)
Power-section definition
[517]
n959.70 = 8
Generat. Date
r827
Firmware Version
r069
Order No. 6SE70..
0 ... 255
P070 (~)
Line Volts
90 ... 1320 V
P071(~)
Rtd Drive Amps
0.0 ... 6450.0 A
P072 (~)
Rtd Drive Power
0.3 ... 6400.0 kW
P073 (~)
PCB Code
r826.01
PCB Code
r826.02
SW ID
r828.02
SlotDeselect
0 / 1
U910 (0)
Board ID
n911.02
PCB Code
r826.03
SW ID
r828.03
Board ID
n911.03
PCB Code
r826.04
SW ID
r828.04
Board ID
n911.04
PCB Code
r826.05
SW ID
r828.05
Board ID
n911.05
PCB Code
r826.06
SW ID
r828.06
Board ID
n911.06
PCB Code
r826.07
SW ID
r828.07
Board ID
n911.07
PCB Code
r826.08
SW ID
r828.08
Board ID
n911.08
SW ID
r828.01
