Siemens simovert masterdrives

Function diagram
87654321
fp_mc_540_e.vsd

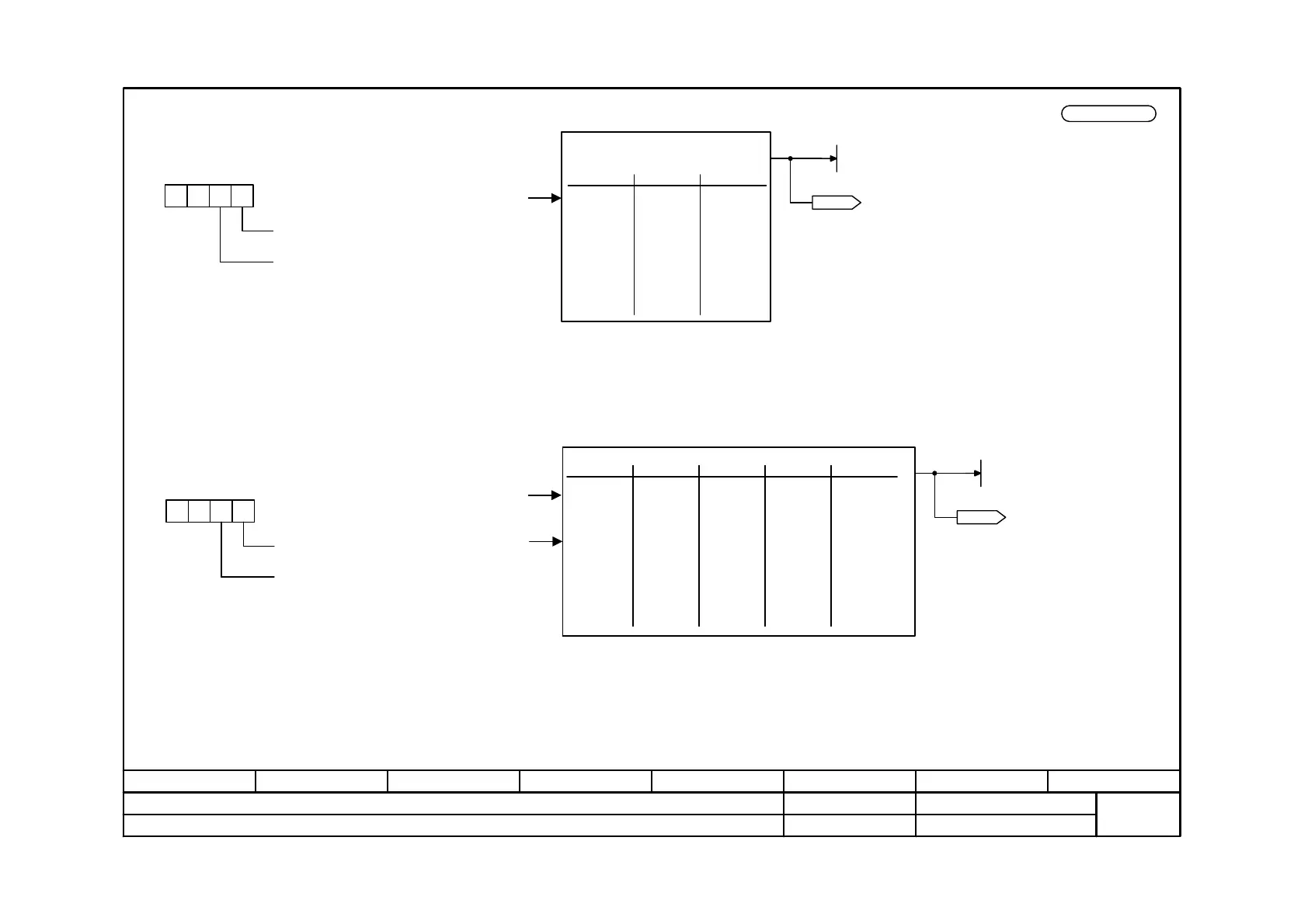

Data sets
MASTERDRIVES MC
18.01.06
-540 -
V2.5
Copy BICO DSet
0 ... 21
P363 (0)
Target data set (1/2)
Parameter
number
Index 1 Index 2
xxxx
xxxx
xxxx
xxxx
xxxx
xxxx
xxxx
xxxx
...
Changeover of binector
and connector parameters
Note: The parameters concerned are
designated by the code "B".
Source data set (1/2)
BICO data set bit 30
from control word 2
[190.6]
Copy FuncDSet
0 ... 43
P364 (0)
Target data set (1 ... 4)
Parameter
number
Index 1 Index 2 Index 3 Index 4
xxxx
xxxx
xxxx
xxxx
xxxx
xxxx
xxxx
xxxx
...
Changeover of function parameters
Note: The parameters concerned are
designated by the code "F".
Source data set (1 ... 4)
Function data set bit 16
from control word 2
[190.6]
Function data set bit 17
from control word 2
[190.6]
e.g. copying data set 1 to data set 2:
-> P363 = 0012
BICO data set parameters
P190, P192, P193, P194, P196, P197, P203, P210, P211, P212, P213,
P220, P224, P225, P226, P227, P228, P232, P241, P242, P243, P245,
P248, P260, P261, P262, P265, P266, P270, P271, P275, P321, P417,
P418, P433, P438, P443, P554, P555, P556, P557, P558, P559, P560,
P561, P562, P563, P564, P565, P567, P568, P569, P571, P572, P573,
P574, P575, P576, P577, P580, P581, P583, P584, P585, P586, P587,
P588, P589, P591, P640, P647, P648, P651, P652, P653, P654
Function data set parameters
P191, P195, P199, P204, P206, P207, P221, P233, P234, P235, P236,
P240, P246, P249, P250, P263, P264, P401, P402, P403, P404, P405,
P406, P407, P408, P409, P410, P411, P412, P413, P414, P415,
P416, P421, P422, P426, P431, P432, P434, P439, P444, P448, P449,
P450, P452, P453, P462, P464, P469, P471, P595, P641, P642, P643,
P644, P792, P793, P794, P796, P797, P798, P800, P801,
U001, U002, U003, U004, U005, U006, U007, U008, U009, U011, U012,
U013, U014, U015, U016, U017, U018, U021, U022, U023, U024, U025,
U026, U027, U028, U129, U131, U133, U156, U157, U158, U159, U162,
U163, U164, U165, U294, U297, U300, U303, U306, U309, U313, U331,
U332, U333, U334, U335
Active BICO DSet
r012
n959.66 = 4
K0035
Active FuncDSet
r013
K0036
