Instructions for Design of Drives in Conformance with EMC Regulations 05.2003
6SE7087-6QX70 (Version AD) Siemens AG
3-18 Compendium Motion Control SIMOVERT MASTERDRIVES
♦ Every SIMOVERT
MASTERDRIVES has shield
clamps to connect the signal
cable shields.
♦ For chassis units (sizes ≥ E),
the shields can be additionally
connected using cable
connectors at the shield
connecting locations.

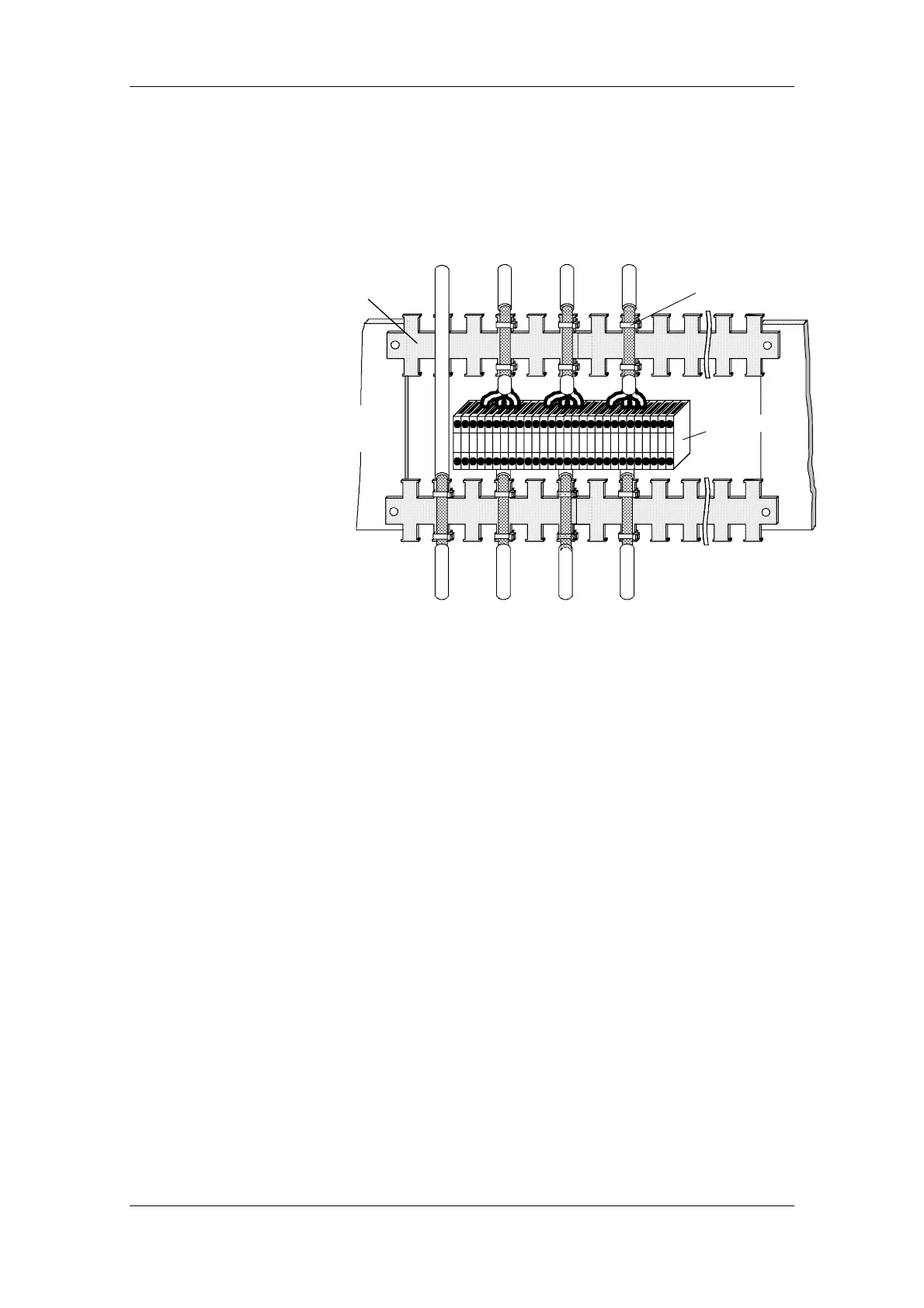

Cable connector
Serrated bar
Intermediate terminals
Connect serrated bars
at both ends to the
cabinet housing
through the largest
possible surface area!
Fig. 3-13 Connecting signal cable shields in the cabinet
Wherever possible, intermediate terminals should not be used as they
reduce the shielding effect!
