05.2003 Instructions for Design of Drives in Conformance with EMC Regulations
Siemens AG 6SE7087-6QX70 (Version AD)
SIMOVERT MASTERDRIVES Compendium Motion Control 3-17
PG gland
Motor terminal box

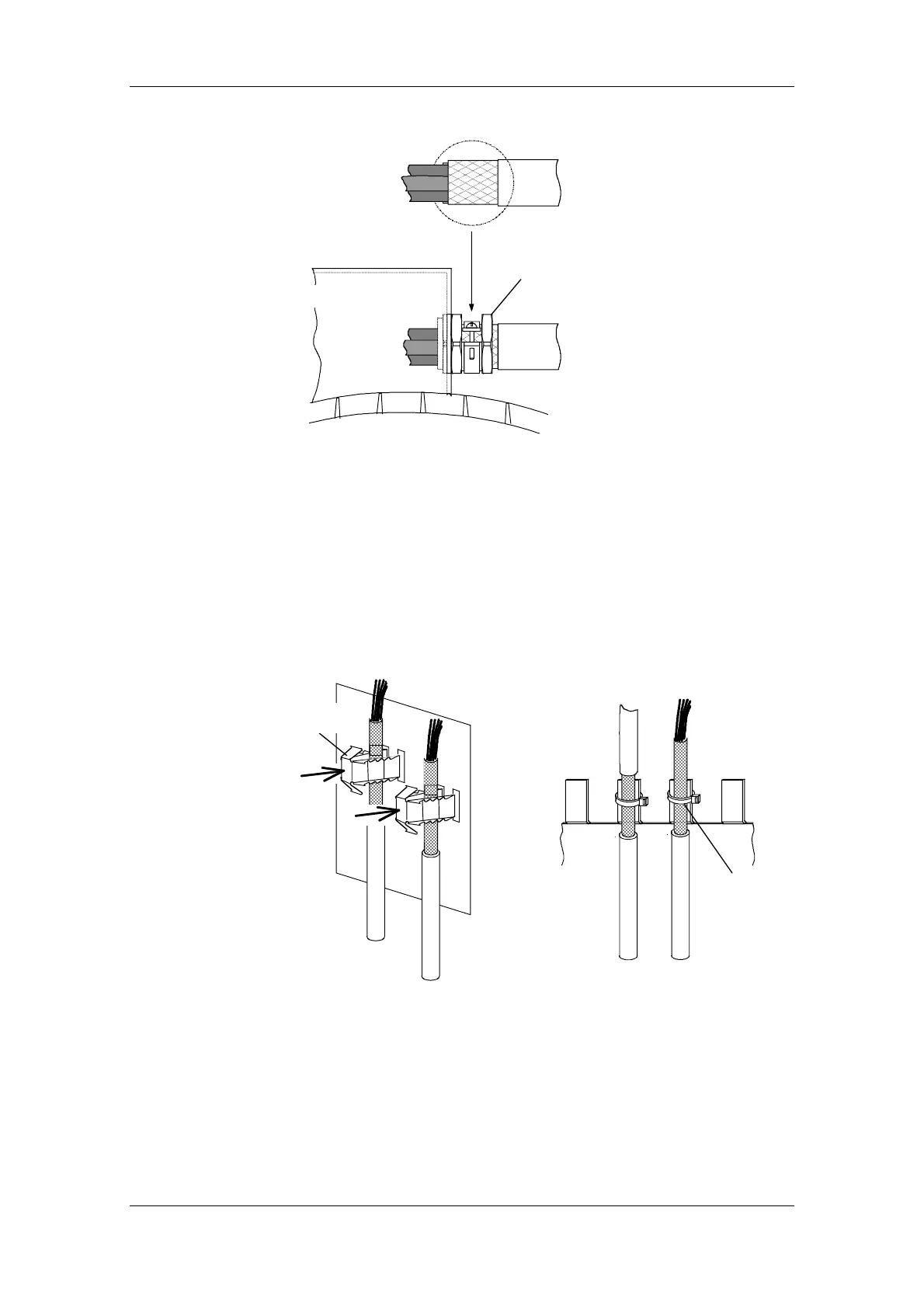

Fig. 3-11 Shield connection at the motor
The shield can be connected through a PG gland (nickel-plated brass)
with a strain relief bar. Thus, the degree of protection IP 20 can be
achieved.
For higher degrees of protection (up to IP 68), there are special PG
glands with shield connection, e.g.:
♦ SKINDICHT SHVE, Messrs. Lapp, Stuttgart
♦ UNI IRIS Dicht or UNI EMV Dicht, Messrs. Pflitsch, Hückeswagen
It is not permissible to use plastic motor terminal boxes!
Shield
clamp
Cable con-
nector
Fig. 3-12 Connecting the signal cable shields for SIMOVERT MASTERDRIVES
