-753 -

Function diagram

87654321

fp_mc_753_e.vsd

Free blocks

MASTERDRIVES MC

23.10.02

Analog signal multiplexers

V2.5

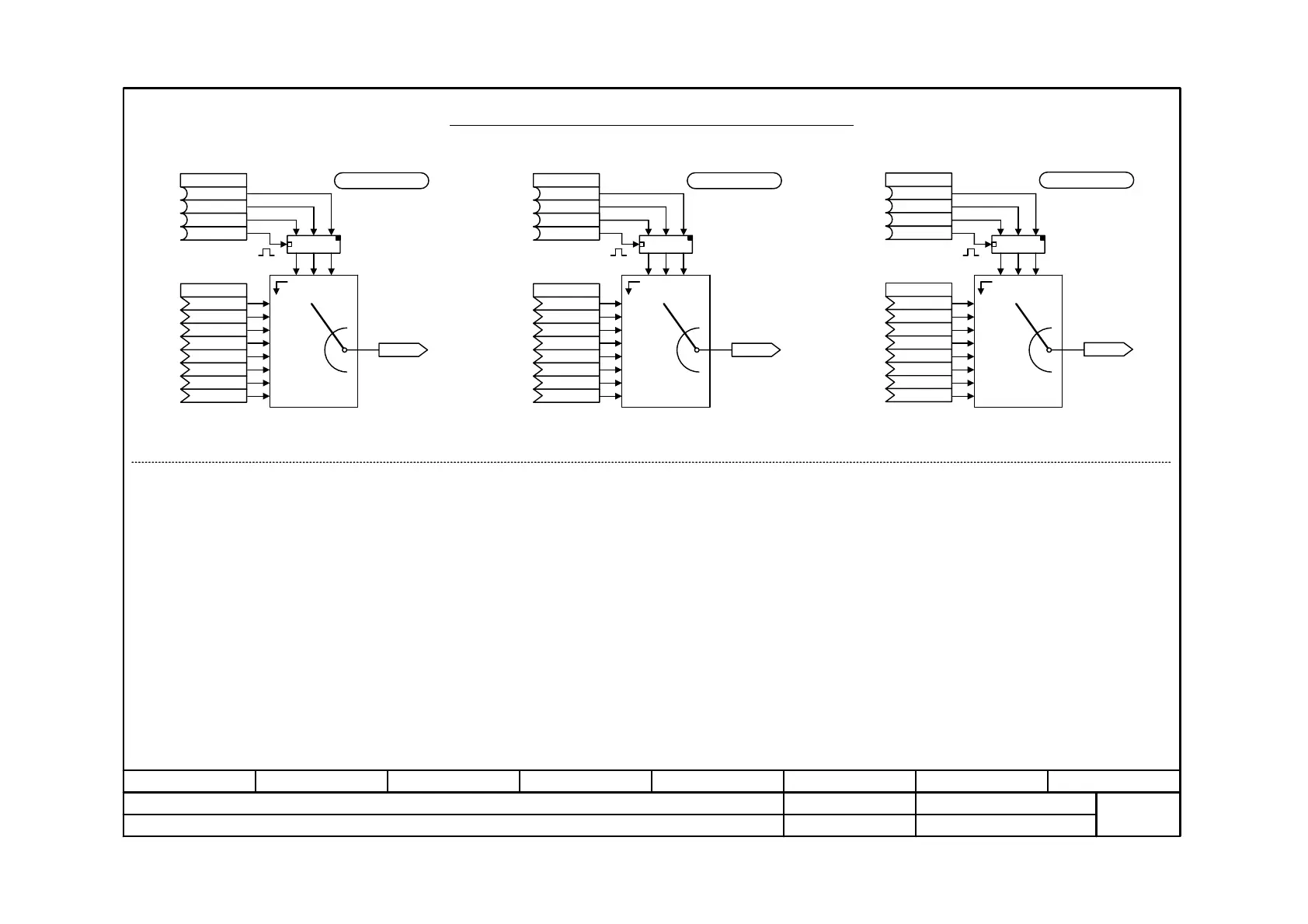

3 Analog signal multiplexer with 8 channels (2-word) {3 µs}

For a further multiplexer: see function diagram 750

Memory

ENABLE

Signal select

MUX

Memory

ENABLE

Signal select

MUX

Memory

ENABLE

Signal select

MUX

U790 (0)

.01

.02

U950.72 = __ (20)

KK0547

U789

.01 (0)

.02 (0)

.03 (0)

B 0001

.04 (1)

.03

.04

.05

.06

.07

.08

U792 (0)

.01

.02

U951.88 = __ (20)

KK0548

U791

.01 (0)

.02 (0)

.03 (0)

B 0001

.04 (1)

.03

.04

.05

.06

.07

.08

U794 (0)

.01

.02

U952.17 = __ (20)

KK0549

U793

.01 (0)

.02 (0)

.03 (0)

B 0001

.04 (1)

.03

.04

.05

.06

.07

.08

Signal selector

switch does not

switch until

ENABLE = 1

Signal selector

switch does not

switch until

ENABLE = 1

Signal selector

switch does not

switch until

ENABLE = 1
