05.2003 Instructions for Design of Drives in Conformance with EMC Regulations
Siemens AG 6SE7087-6QX70 (Version AD)
SIMOVERT MASTERDRIVES Compendium Motion Control 3-21
Mains
Load
Mounting panel
e.g. galvanized
steel plate
Line reactor
Shielded motor cable
Line
supply
cable
(non-
shielded)
Line supply
cable
Radio in-
erference
uppression
filter
Radio interference
suppression filter
Line
reactor
Connecting
adapter
Connecting
adapter
Shielded
motor cable
Options
e.g. braking
unit

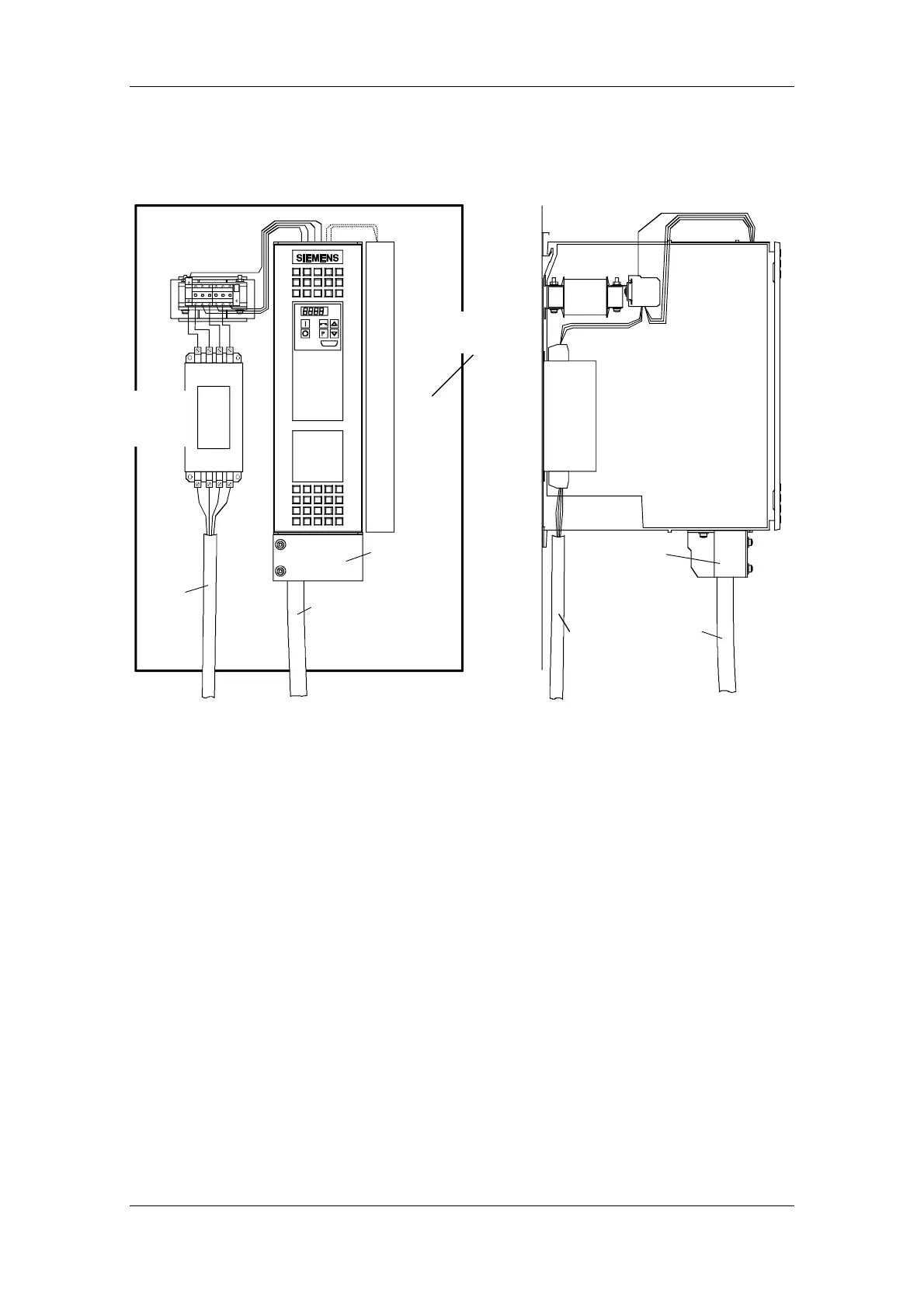

Fig. 3-16 Example of a Compact type unit with radio interference suppression filter
and line reactor
The cabling should be kept as short as possible. The line supply cable
to the radio interference suppression filter must be routed separately
away from other cables (zone concept!).
The motor must be connected using a shielded cable! The shield must
be connected through the largest possible surface area at the motor
and drive converter. The optional connecting adapter can be used to
connect the shield to SIMOVERT MASTERDRIVES.
Drive unit of
Compact type
