Instructions for Design of Drives in Conformance with EMC Regulations 05.2003
6SE7087-6QX70 (Version AD) Siemens AG
3-22 Compendium Motion Control SIMOVERT MASTERDRIVES
B
A

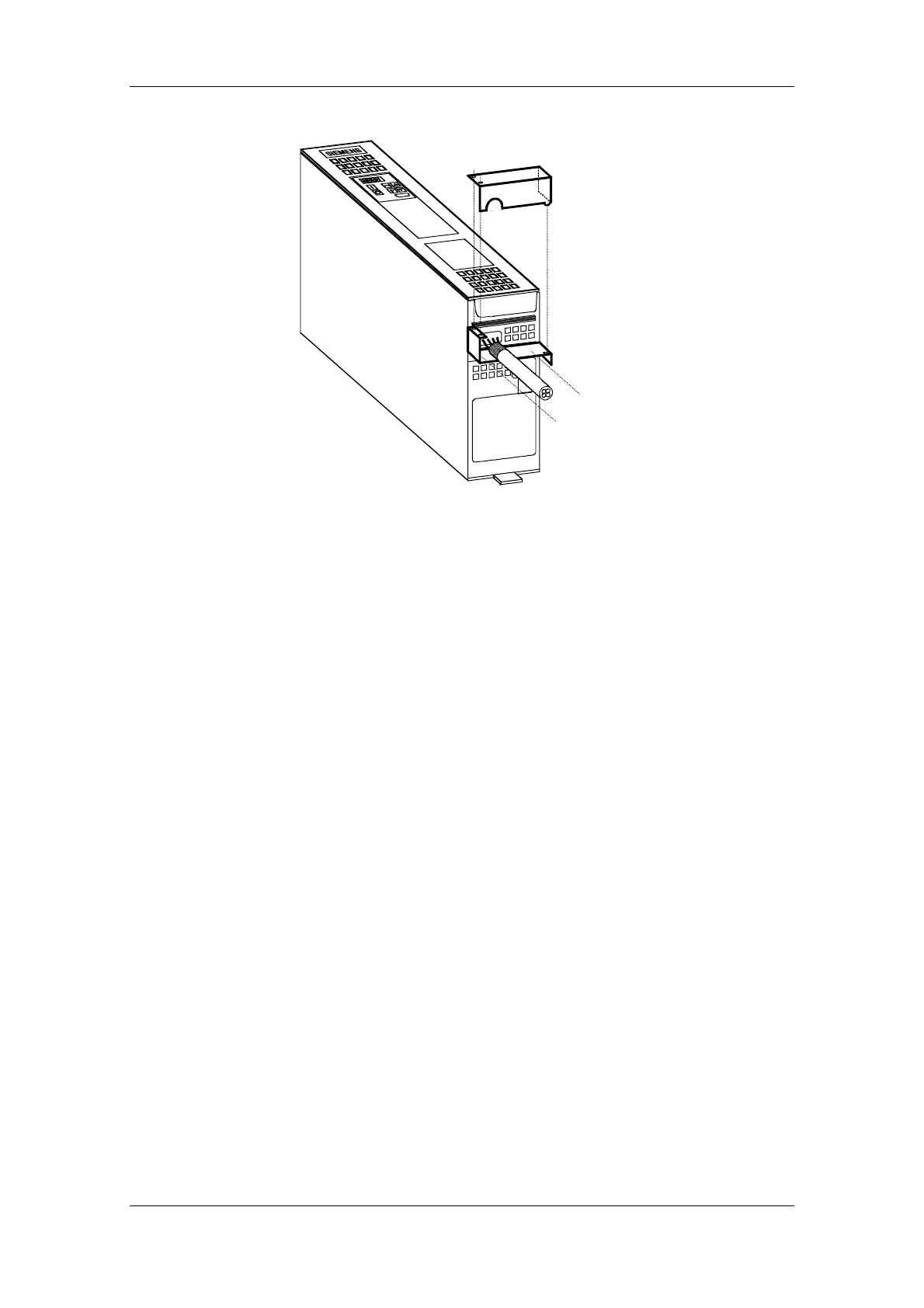

Fig. 3-17 Mounting the connecting adapter
♦ Screw lower section A to SIMOVERT MASTERDRIVES.
♦ Mount SIMOVERT MASTERDRIVES on the mounting panel.
♦ Connect the shielded motor cable and shield to section A through
the largest possible surface area, e.g. attach using cable
connectors.
♦ Locate upper part B and screw into place. The shields of signal
cables can be connected to the upper section.
