05.2003 Instructions for Design of Drives in Conformance with EMC Regulations

Siemens AG 6SE7087-6QX70 (Version AD)

SIMOVERT MASTERDRIVES Compendium Motion Control 3-23

-X2

-F71-73

-L3

-U1

-U9

U2/T1 V2/T2 W2/T3W1/L3U1/L1 V1/L2

-T1

-G1

-Q4

-K10

-K1

-X1

-A101

-X62 -X70

-X60-X5

-F11 -F12 -F13

-Q1

-Q2

Shielded area

-X2

PE1

PE2

1) Shield rail

2) Shield housing for

options

3) Partition (shielding)

between input and out-

put circuit to which the

basic unit is connected

through the largest

possible surface area.

-A1 Radio interference

suppression filter

-K1 Main contactor

-L1 Line reactor

-L3 Output reactor

-U1 SIMOVERT

MASTERDRIVES

-U9 Braking unit

-A1

- L1

L+

L-

-X1

-L1

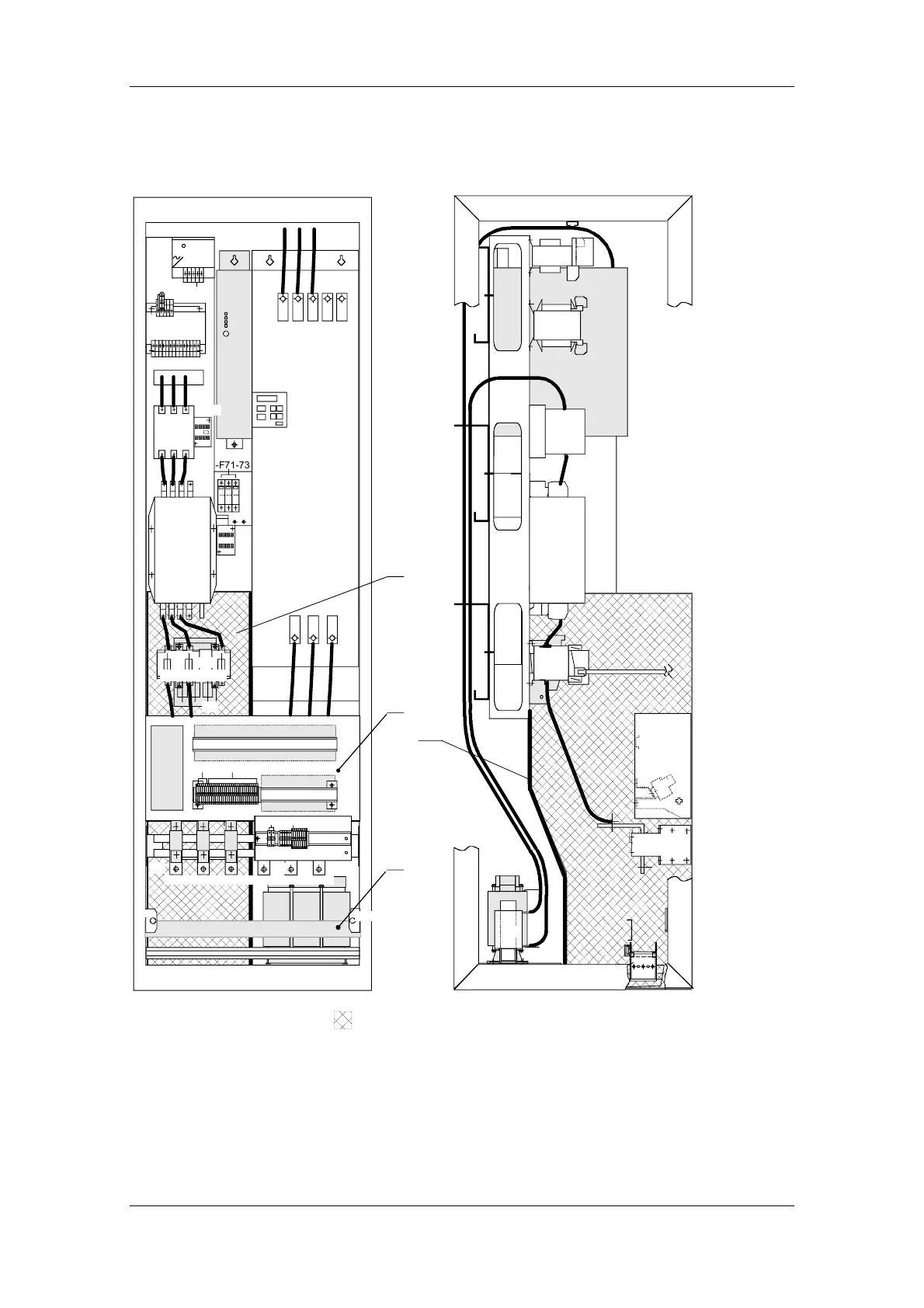

Fig. 3-18 Example of a chassis unit mounted in the cabinet with radio interference

suppression filter and line reactor

Chassis type drive

unit
