Instructions for Design of Drives in Conformance with EMC Regulations 05.2003
6SE7087-6QX70 (Version AD) Siemens AG
3-24 Compendium Motion Control SIMOVERT MASTERDRIVES
Cable duct only for
signal cables
Shielded motor cables
Cable duct only for line supply cables

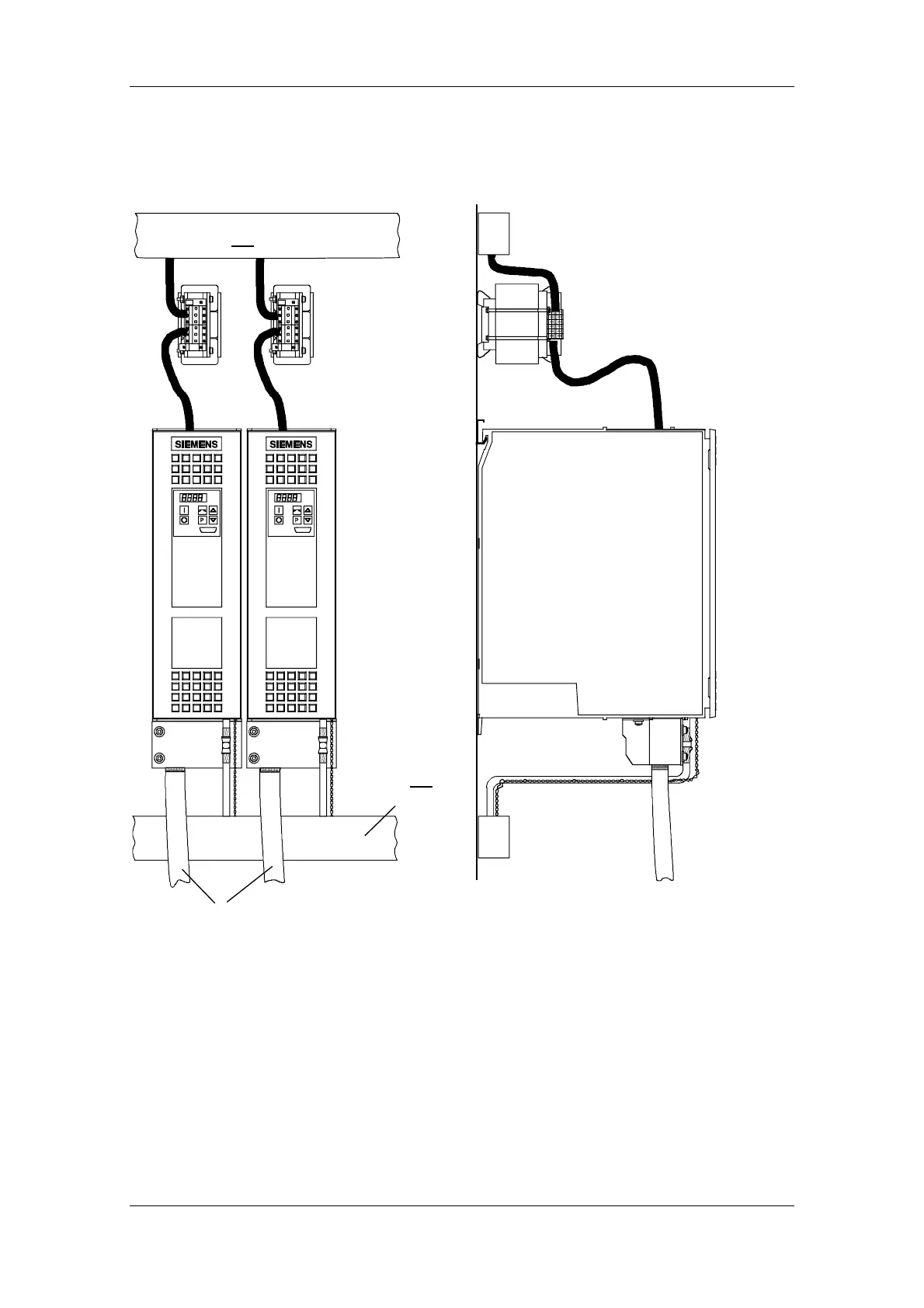

Fig. 3-19 Installation with separate cable ducts
Installation with cable ducts only for the line supply cables. Line supply
cables are non-shielded.
The motor and signal cables are routed separately from each other.
The shields of the motor and signal cables have to be mounted on the
shield connections through the largest possible surface area.
Example of correct
cable routing
