Siemens simovert masterdrives

Function diagram
87654321
fp_mc_796_e.vsd
Free blocks
MASTERDRIVES MC
10.09.03

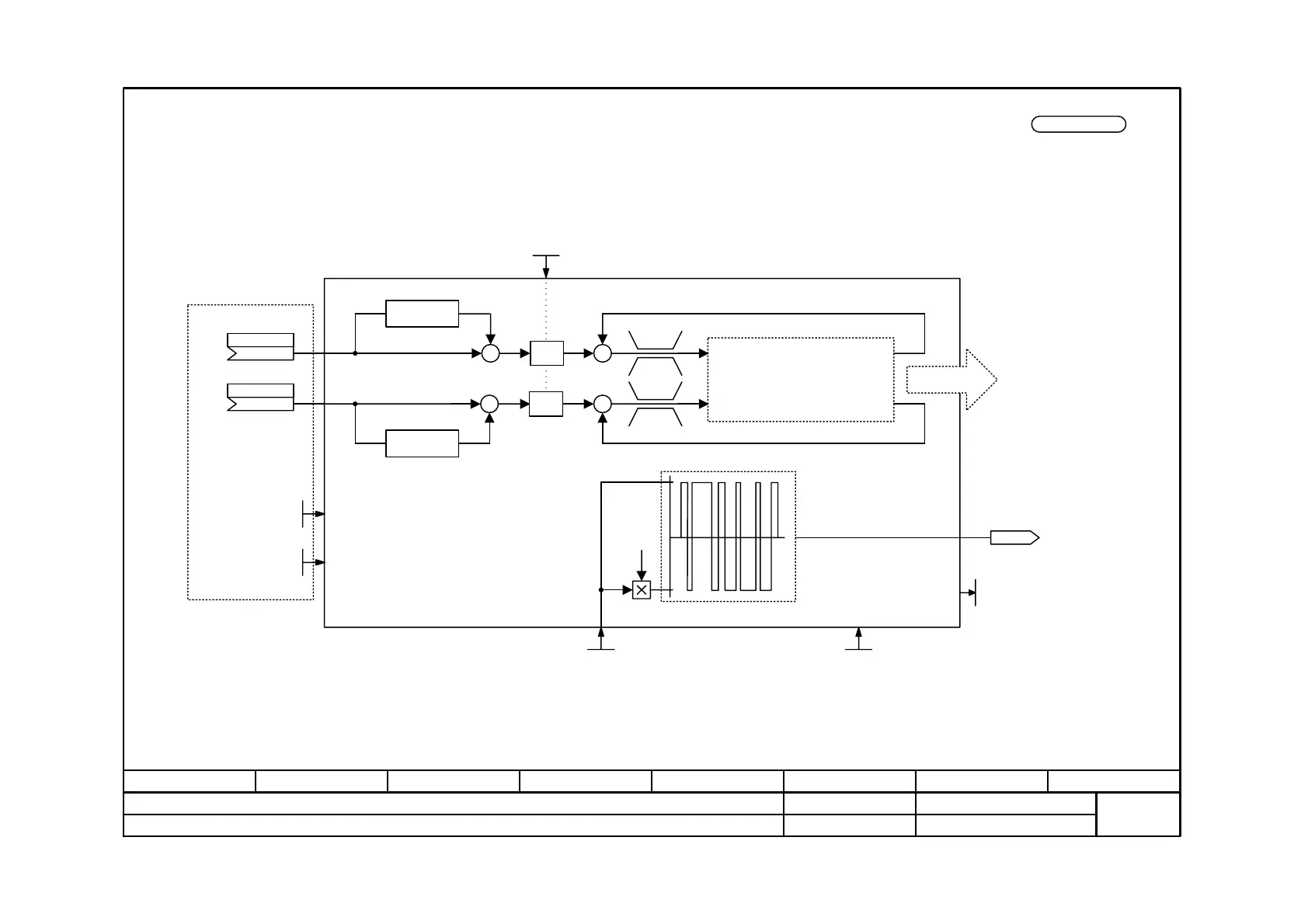

PRBS (Pseudo Random Binary Sequence) - Signal with Trace
-796 -
V2.5
-1
Trace memory
Channel 2 (System input / PRBS)
Mean value
first period
–
+
+
+
Number of cycles
Start measuring, number of channels
Averaging of cycles by addition
Frequency range 0.6 Hz ... 625 Hz
at a pulse frequency of 5 kHz . At
higher pulse frequencies, the
frequency range shifts upwards
accordingly.
Export trace file in ASCII
format to DriveMonitor. Data
analysis is the user's respon-
sibility.
Channel 1 (System output)
Only the values 20 and 02 are permitted.
To avoid overlaps, the usual trace must
be switched off with U953.72 = 20.
–
+
+
+
Mean value
first period
A032
Alarm
Overflow
Trace words or double words
DriveMonitor
To be set by means of the
DriveMonitor-mask
Diagnostics/trace: Trace
settings. Start noise and
trace with the
Start button !
>>
>>
K0630
Noise output
KK
U480.01 (0)
Src.Trace input
U953.70 = ___(20)
KK
U480.02 (0)
Src.Trace input
PRBS ampl
0.00 ... 100.00 %
U477 (1.00 %)
PRBS cycles
0 ... 200
U478 (20)
TraceStatusStart
0..2
U488.1/2 (0)
Trace double word
0..1
U481.1 (0)
PRBS cycles CntD
n479
PRBS shift div.
0..10
U476.1/2 (0)
