08.2012 Technology Option F01
Siemens AG 6SE7087-6QX70 (Version AN)
SIMOVERT MASTERDRIVES Compendium Motion Control 9-23

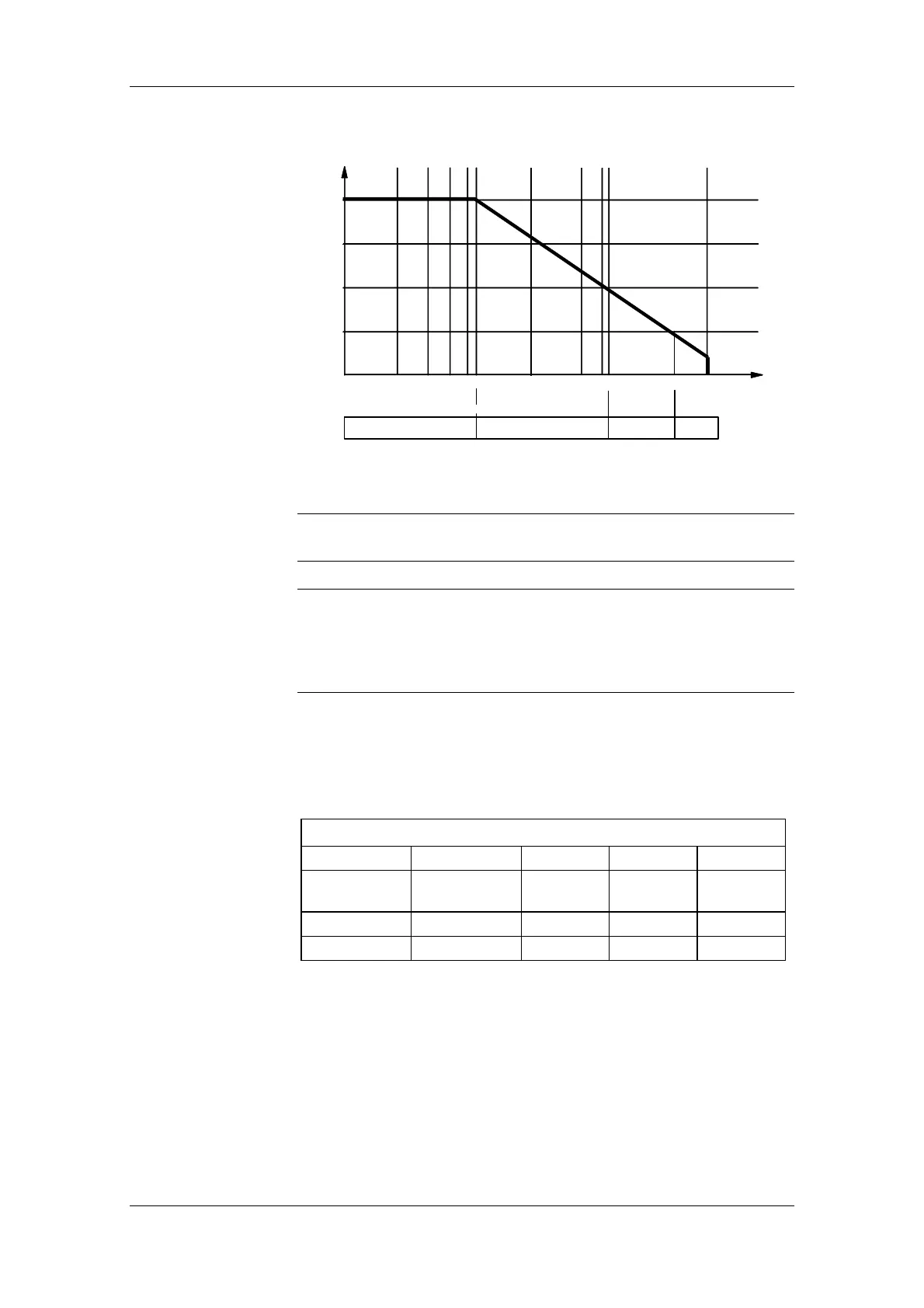

Possible baud rate depending on the cable length:
0
24
6 810
20 15060 80
500
1000
1500
2000
K
b
a
u
d
100
xxx
3
x xxx
2
x xxx
1
x xxx
0
x
Setting for P149.01 and P149.07
Cable length/m
Fig. 9-11 Possible baud rate depending on the cable length
The EQN1325, ECN1313 and EQI1325 encoders require a
6FX_002-2EQ10-____ connecting cable.
Not all measuring system manufacturers support baud rates up to
2 Mbaud. The serial protocol for the motor encoder is only required for
initialization and redundancy monitoring. These functions are non-time-
critical. A baud rate of 100 kHz (standard setting) is recommended for
immunity to interference.
Only encoders which generate incremental tracks, in addition to
transmitting the position using the serial protocol, are suitable as motor
encoders. The sensor board supports the serial SSI and EnDat
protocols.
Recommended coded rotary encoders:
Coded Rotary Encoder
Name Res./ Rev. Rev. Protocol
EQN 1325 8192 4096 EnDat
Multiturn
Standard
ECN1 313 8192 - EnDat Singleturn
EQI 1325 256 4096 EnDat Multiturn
NOTE
NOTE
Encoder types
