Siemens simovert masterdrives Compendium

08.2012 Technology Option F01
Siemens AG 6SE7087-6QX70 (Version AN)
SIMOVERT MASTERDRIVES Compendium Motion Control 9-43
A positive edge on the "enable homing" control signal enables the
homing logic for one cycle. When the home position is detected, the
position is set to the set value and the "home position detected"
checkback signal is output [330.7 and 335.7]. The checkback signal
remains active until the "enable homing" control signal is canceled

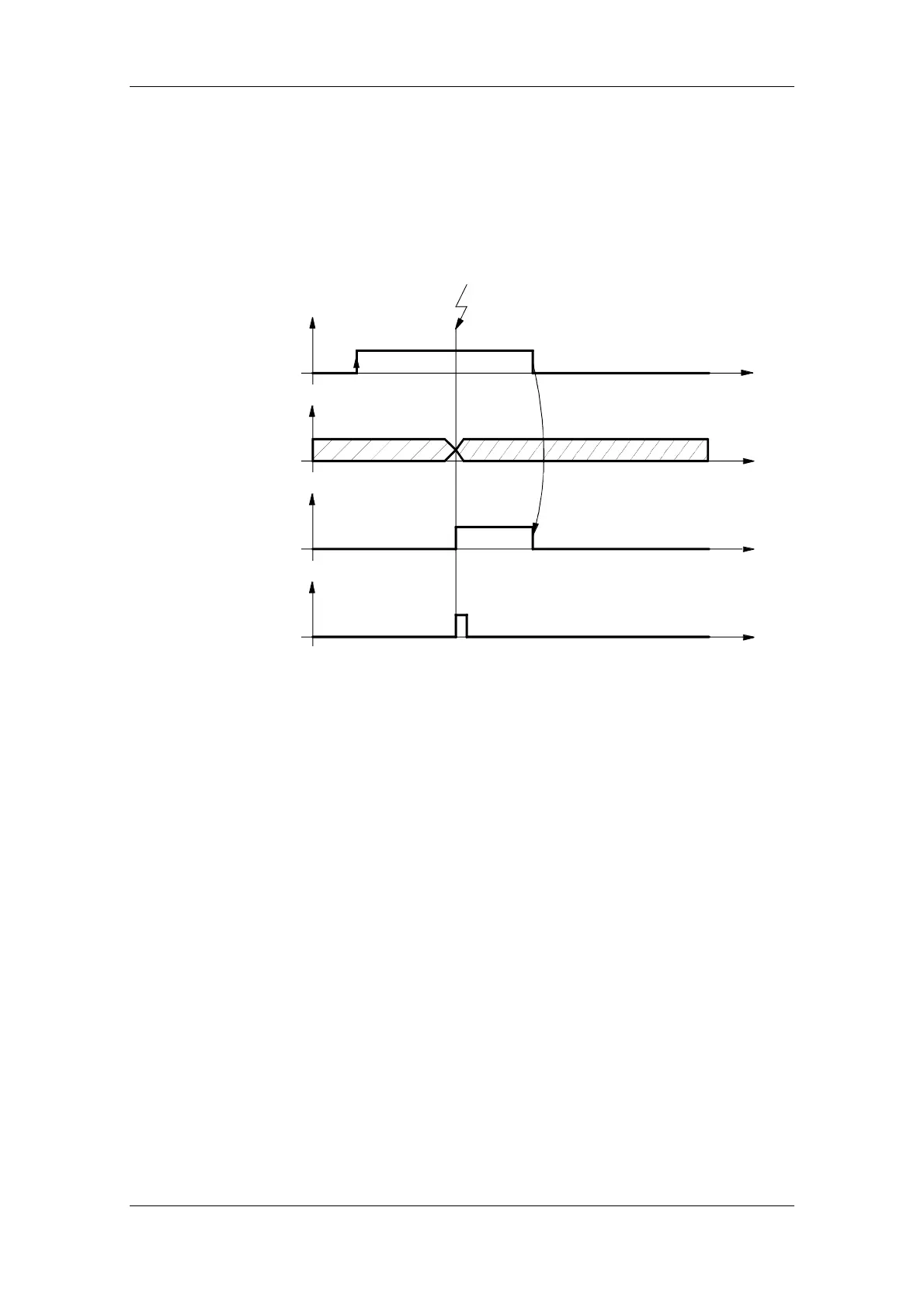

again. The time chart below illustrates the sequence.
Enable homing
Actual position
Home position detected
checkback signal
Home position
detection
(made up of coarse and fine pulses)
Home position
t
t
t
t
Fig. 9-17
Signal sequence for
homing P177
