Function diagram
87654321
fp_mc_171_e.vsd
Communication
MASTERDRIVES MC
08.01.02

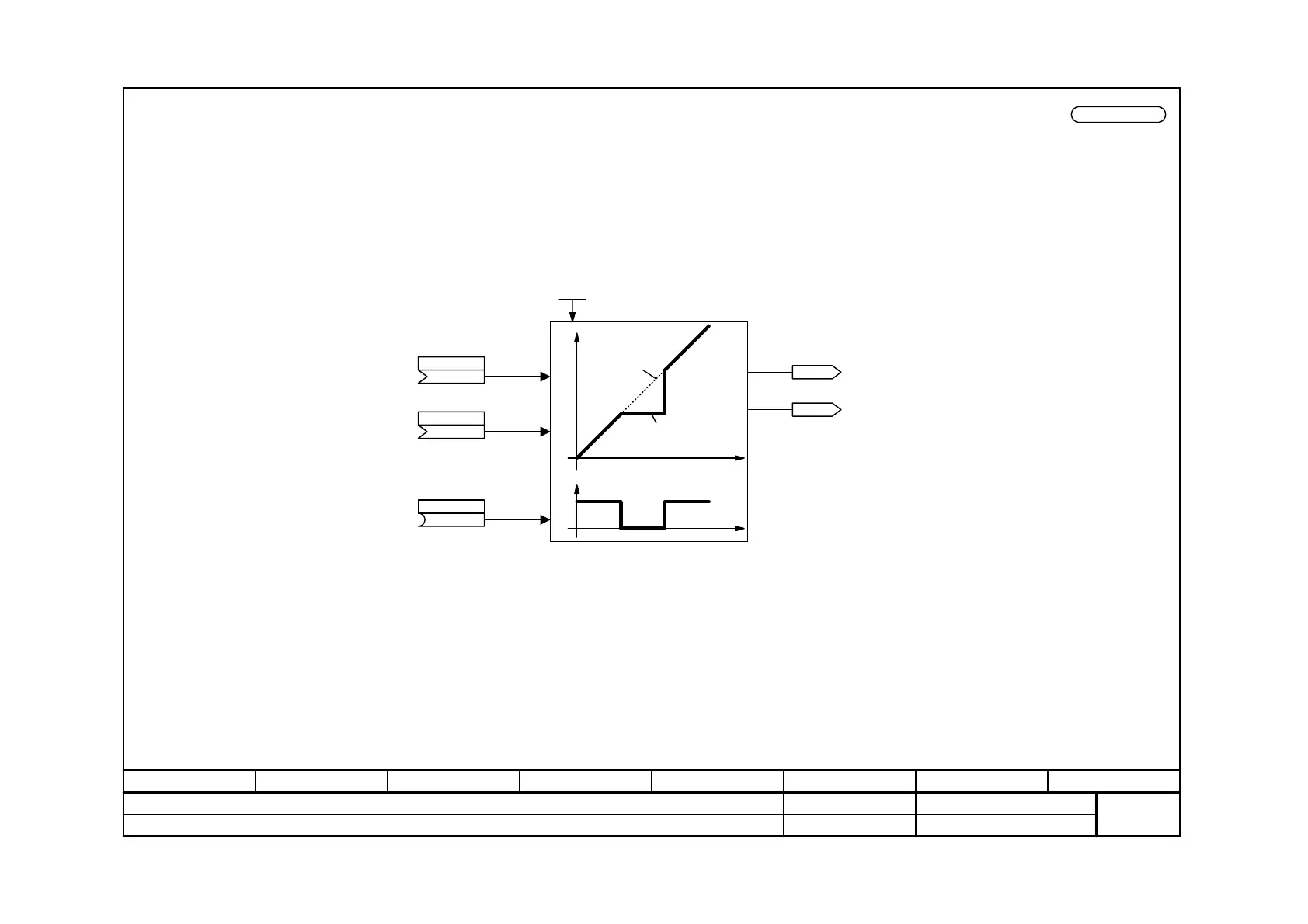

Position setpoint extrapolator for bridging telegram failures
-171 -
V2.5
Position setpoint
t
Telegram failure
Extrapolation
U953.29 =___ (20)
KK0846
Position setpoint output
B
U801 (0)
Communication fault
KK
U800.2 (0)
Speed setpoint
KK
U800.1 (0)
Position setpoint
KK0847
Speed setpoint output
Axis cycle length
0... 2
31
-1 [LU]
U802 (4096)
