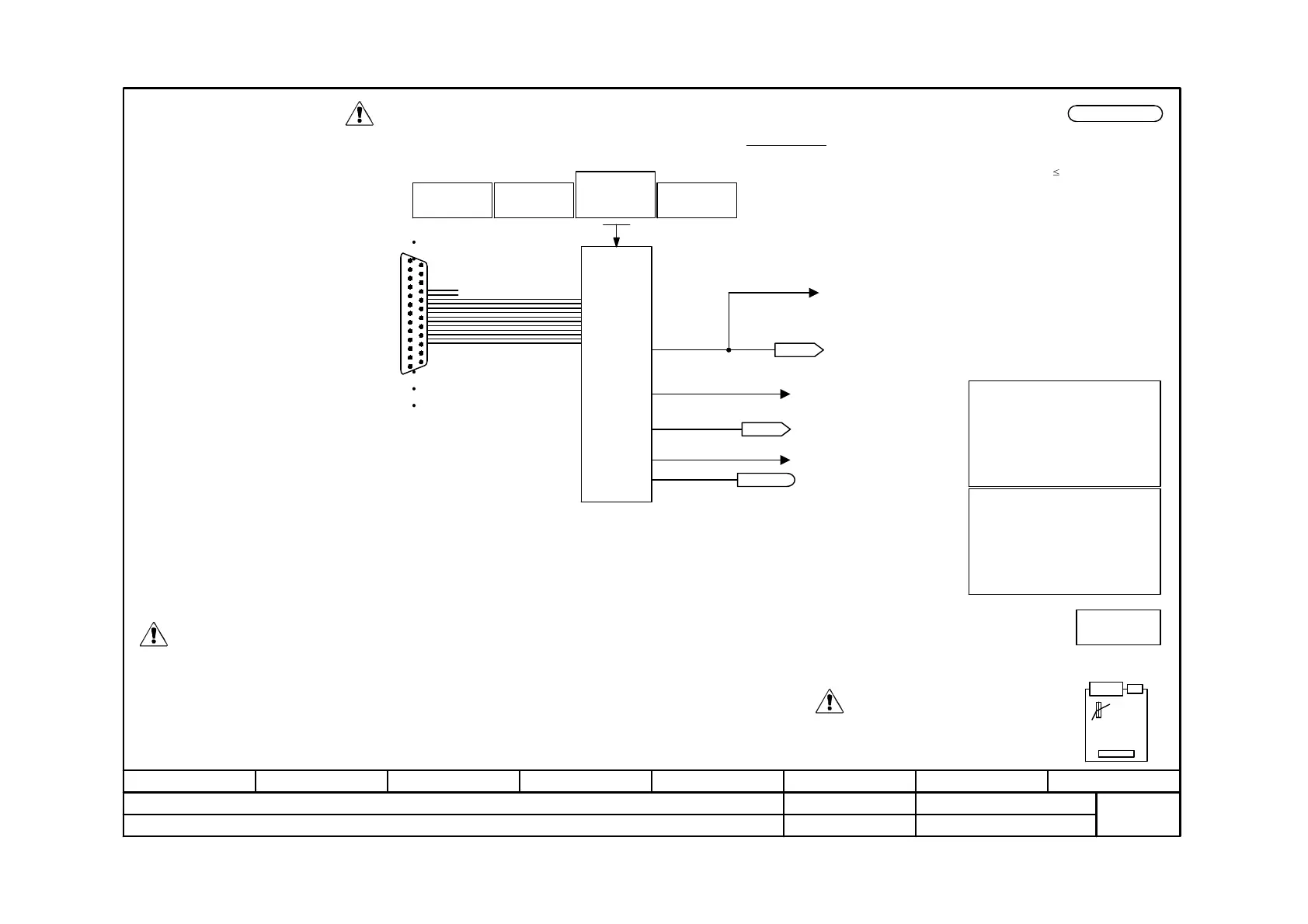

Function diagram
87654321
fp_mc_270_e.vsd
Encoder
MASTERDRIVES MC
14.10.10
Multiturn encoder evaluation for external encoder (SBM2 not in slot C)
-270 -
V2.5
Pin assignment -X424:
1 : P encoder
2 : M encoder
3:A +
4:A -
5 : Internal shield for 3+4
6:B +
7:B -
8 : Internal shield for 6+7
10 : Cycle +
12 : Cycle -
13 : + Temp
14 : Encoder sense
15 : Data +
16 : 0 V sense
17 : R +
18 : R -
19 : C +
20 : C -
21 : D +
22 : D -
23 : Data -
24 : Internal shield for 13+25
25 : - Temp
Housing: external shield
-X424
Multiturn
encoder
evaluation
ZeroPt Displace
P146.02 (0)
SelectMultiturn
0...11
P147.02 (3)
Pulse#Multiturn
1...32
P148.03 (13)
P148.04 (12)
Conf Protocol
0000...0431
P149.07...12
in increments <2>
F051 Encoder fault
No evaluation of
motor temperature
<1> Range of values = 0 ... 2
32
-1
for one encoder revolution
KK104 is supported only when used with an
external encoder with incremental tracks
(sine/cosine tracks) (P135 = 4).
<1>
Current rotor position of
external machine encoder [335.1]
P135 = 4
Setting of P147.2:
0: No standard encoder, parameterization in P148, P149
1: Encoder EnDat (EQN1325 Heidenhain)
2: Encoder EnDat (ECN1313 Heidenhain)
3: Standard Mutiturn 25 Bit SSI
4: Multiturn 21 Bit SSI
5: Singleturn 13 Bit SSI
6: Multiturn EnDat automatic identification
7: Encoder EnDat (EQI1325 Heidenhain)
10: Encoder SSI (ROQ424 Heidenhain)
11: Encoder EnDat (EQI1125 Heidenhain)
<2> Engineering note:
In the case of linear axes, the travel range must be within
the range of values of the encoder. Otherwise the range must
be shifter with the zero value offset.
In the case of EnDat multiturn encoders, P146 only applies if the
encoder pulse number (incr./rev.) corresponds to the protocol value
when multiplied by 4.
Example: EQN1325 with pulse number 2048 x 4 = protocol value 8192
Fine resolution external
encoder [335] (SBM2 only)
Absol. pos. from serial
protocol in increments
When using position detection via
external encoder (FP335), the
following setting is required:
U950.18
U950.17
SBM (6SE7090-0XX84-0FD0)
2 hook switches for voltage supply of the
encoder on the board:
5 V : Both switches open
7.5 V : S1 open, S2 closed
15 V : Both switches closed
X424 X420
S2
S1
Volts Enc SBM2
P145.02 (5)
SBM2 (6SE7090-0XX84-0FE0)
Setting of the supply voltage in volts via P145
(Maximum value of the output voltage:
in the case of Compact units: 15 V
in the case of Compact PLUS units: 19 V
independent of parameterizing)
It is not possible to evaluate the motor temperature for
encoder evaluations that are not inserted in slot C.
WARNING
The encoder connection may neither be closed nor removed when live!
The converter must be de-energized (24 V electronics power supply disconnected and DC link
fully discharged)!
NOTE:
Parameter P149.08 = 1xxx should be set if the
following general conditions exist:
1.) Use of EnDat absolute encoders
2.) Encoders with ratio of
(single-turn resolution protocol / pulse no. per
revolution ) <> 4
(e. g.: EQI1325)
With this setting the protocol value is mapped in
KK0100 in its full resolution.
NOTE:
Parameter P148.08 = xxxx should be set if the
following general conditions exist:
1.) Use of SSI absolute encoders
2.) Encoders with ratio of (single-turn resolution
protocol / pulse no. per revolution ) <> 4
(e. g.: ROQ424)
With this setting the protocol value and the signal
periodes (A/B track) can be processed in full
resolution.
U950.18 = ___(5)
KK0104
Mech. Angle
B0071
MeasV valid
KK0106
Absolute position ext. encoder
