4.7 Basic parameterization of the drive objects
Commissioning with Startdrive
170 Commissioning Manual, 11/2017, 6SL3097-4AA10-0BP1
The measuring sockets output the analog signals. Any freely interconnectable signal can be
output at any measuring socket. A measuring socket can be used, for example, to output the
actual speed value (r0063) to a measuring instrument connected to the measuring socket.

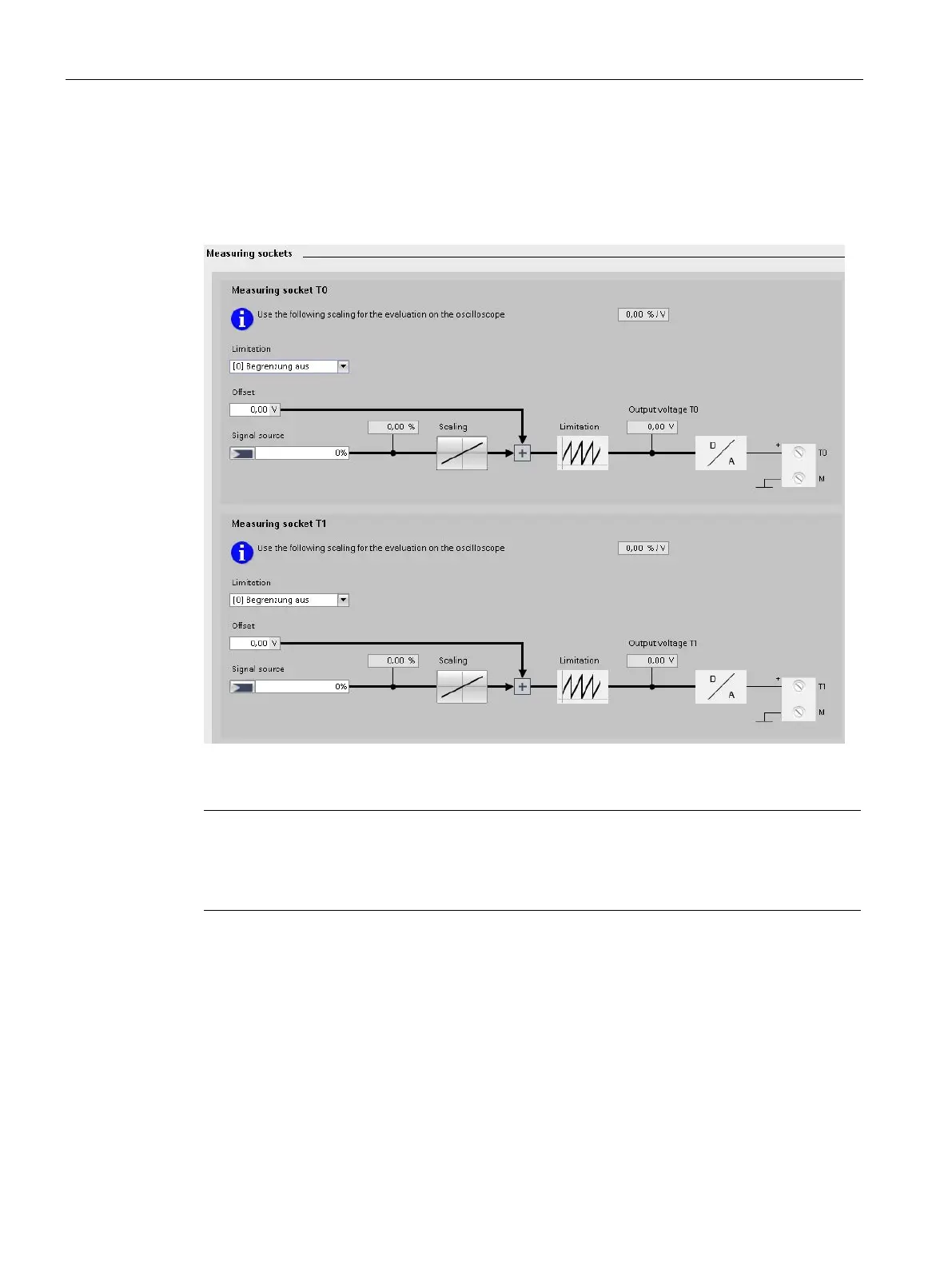

Figure 4-69 Measuring socket
Note
Only for commissioning and service
The measuring sockets may only be used for commissioning and s
ervice purposes. The
measurements may be performed only by appropriately trained skilled personnel.
