Commissioning
4.10 Safety Integrated commissioning
Commissioning with Startdrive
224 Commissioning Manual, 11/2017, 6SL3097-4AA10-0BP1
Making the basic settings for the Safety Basic Functions
The "Basic Functions" setting is selected in the first drop-down list.

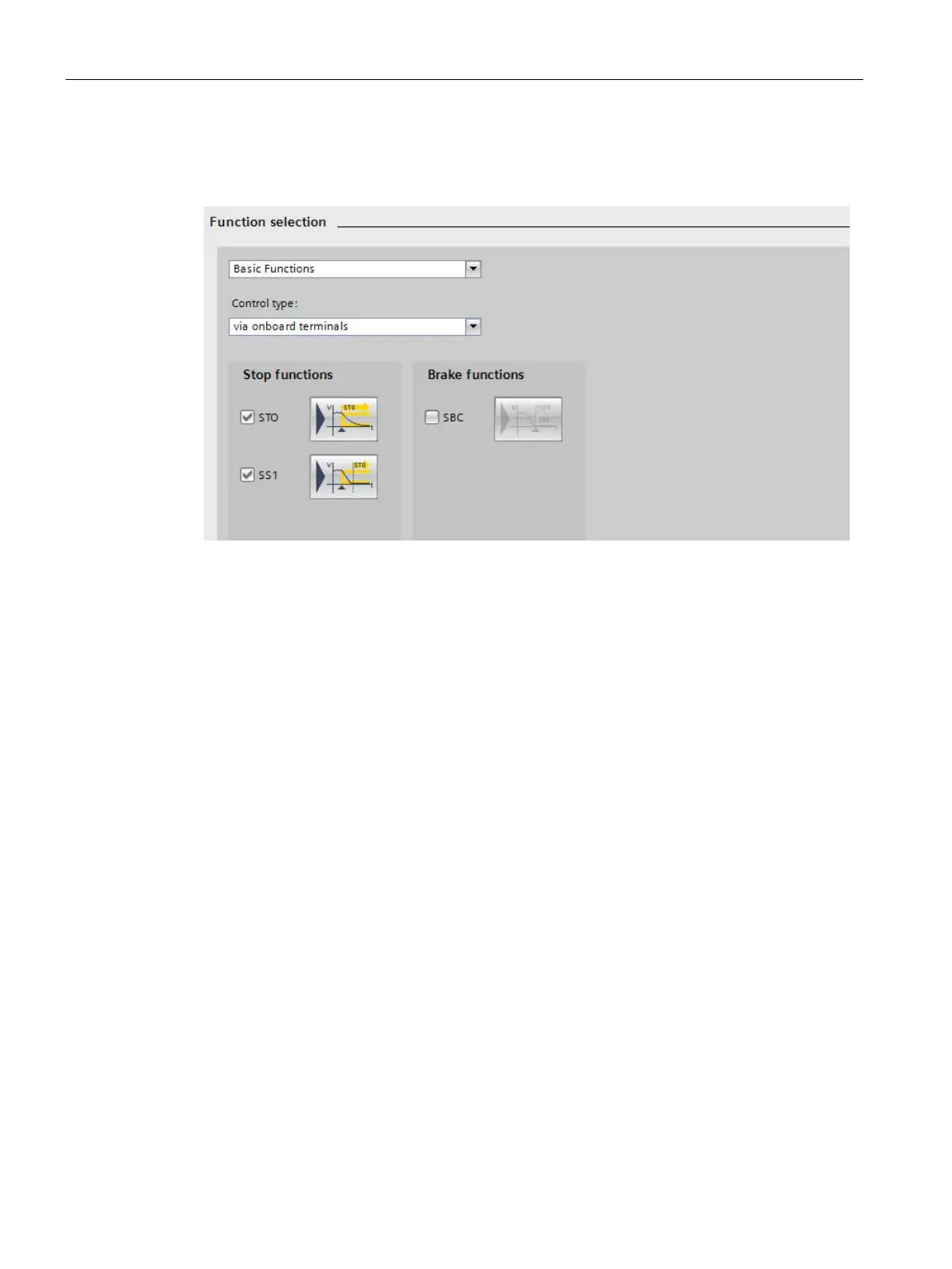

Figure 4-90 Basic functions
1. Select one of the following settings in the "Control type" drop-down list:
– via PROFIsafe (the "Basic functions via onboard terminals" option is automatically
active)
– via onboard terminals
– without selection
The associated stop functions are then active in the lower part of the screen form and can
be parameterized.
2. Click the button for the required stop function.
The corresponding screen form is displayed and can be parameterized (see Chapter
"Basic Functions (Page 228)").
