Line Connection Booksize
2.9 Active Interface Modules internal air cooling
Booksize power units
Manual, (GH2), 06/2008, 6SL3097-2AC00-0BP6
97

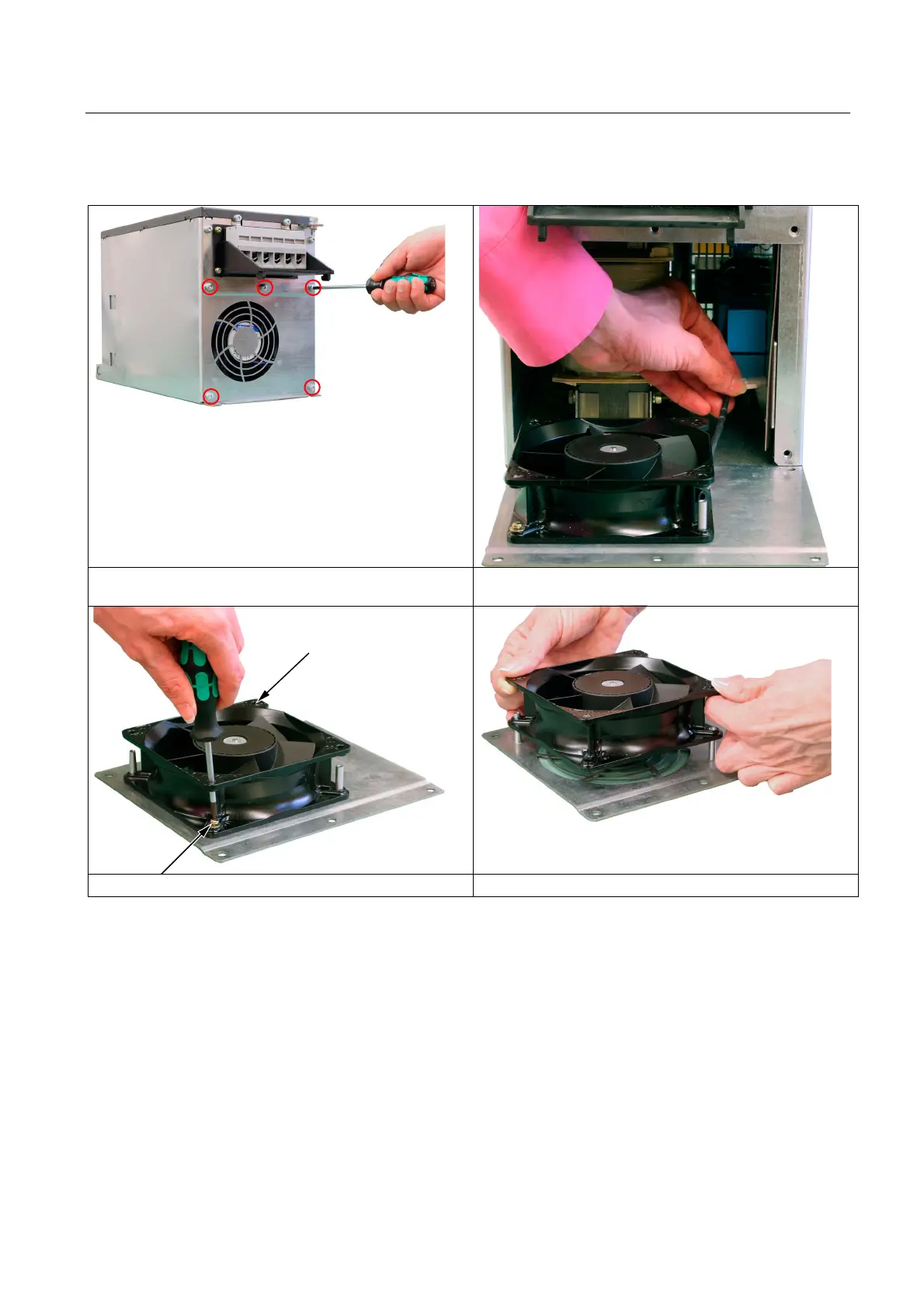

Table 2-28 Replacing the fan in an Active Interface Module, 55 kW
Open the fan cover. Unscrew the combination screws
M5/3 Nm
Open the fan cover and remove the connector
Unscrew the screws M3/1.8 Nm Remove the fan
