Configuring the system
2.4 Configuring the SITOP UPS module for use with the PCU Base Software
PCU-Basesoftware (IM8)
66 Commissioning Manual, 02/2014, 6FC5397-1DP40-4BA0

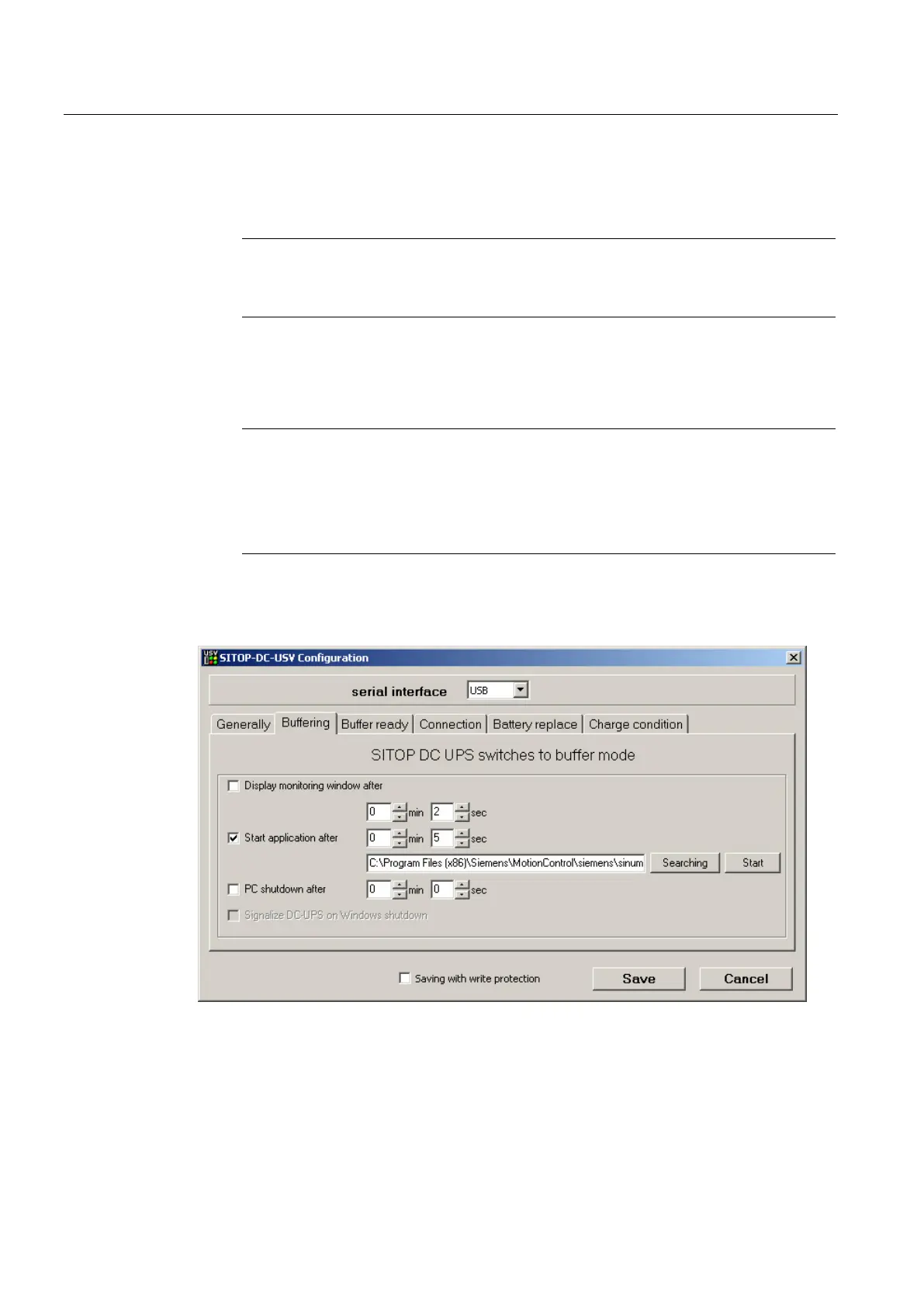

3. Switch to the "Floating operation" tab and make the following settings:
– Deactivate the "Display monitoring window after" checkbox
Note
Deactivating the monitoring window
Display of the monitoring window can cause malfunctioning of the HMI software.
– Click directly in the text field at "Start application after" and specify the path of the
Shutdown.bat:
C:\Program Files
(x86)\Siemens\MotionControl\siemens\sinumerik\hmi\base\Shutdown.bat
Note
Do not use the "Browse" button
The dialog can crash if you use the "Browse" button to specify the path of the
Shutdown.bat
.
Instead, enter the
path directly in the text field.
– After you have specified the path of the Shutdown.bat, activate the "Start application
after" checkbox. Optionally, you can specify the wait time after which the
Shutdown.bat
is to be executed (e.g. 5 seconds).
4. Confirm the settings with "Save."
