Structure of the Power-System Data
The Power-system data contain the block General and the Measuring points of the device. The following
figure shows the structure of the Power-system data:
[dwpow7ke-130213-01.tif, 2, en_US]

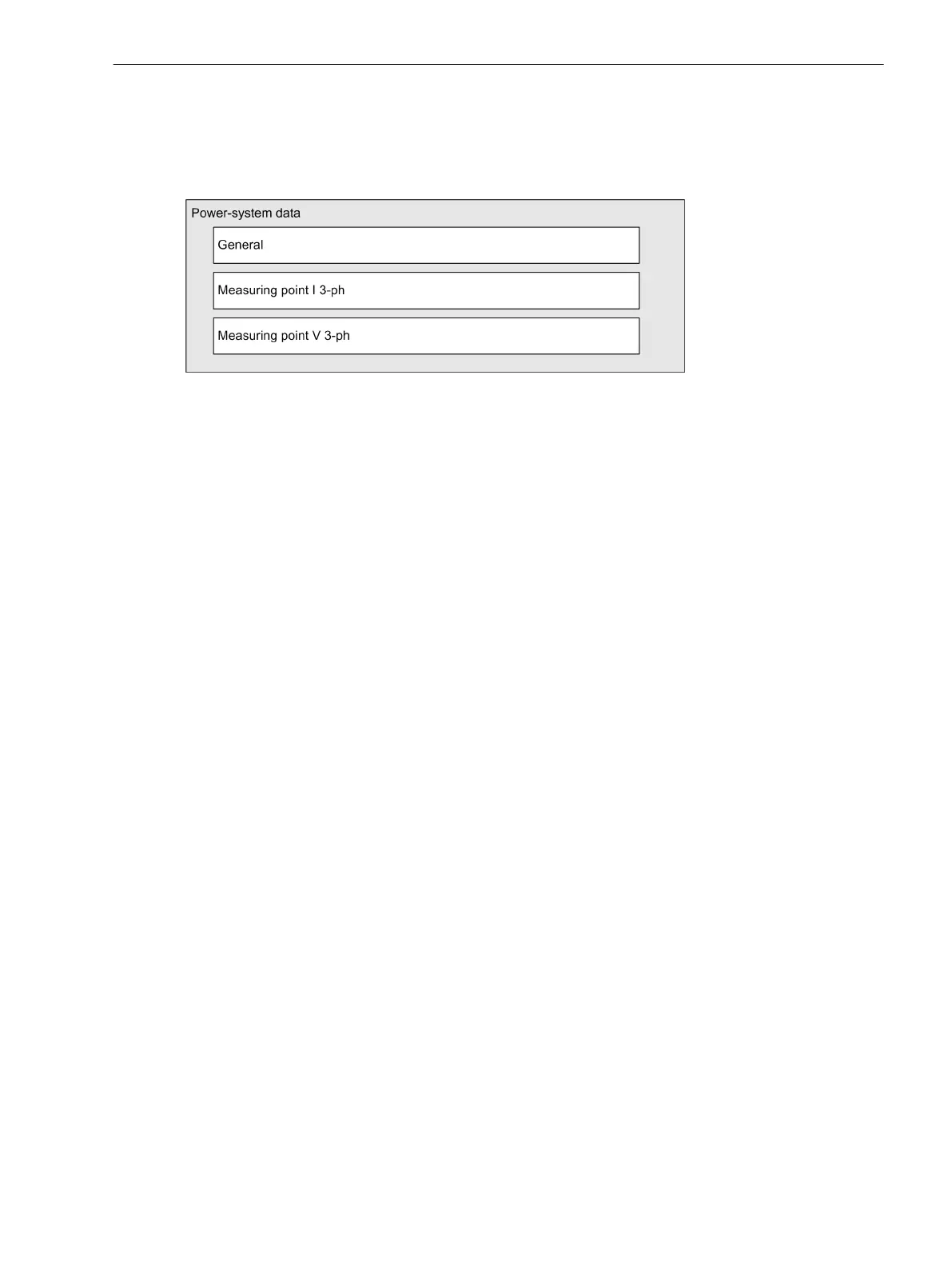

Figure 5-1 Structure of the Power-System Data
In order to adjust its functions to the application, the device requires some data about the power system. The
necessary settings can be found in the Power-system data under General as well as in the Measuring points.
Type and scope of the required measuring points depend on the application. Possible measuring points are:
•
Voltage 3-phase (measuring point V 3-ph)
•
Current 3-phase (measuring point I 3-ph)
The measuring points have interfaces to the following function groups:
•
VI 3-phase
•
V 3-phase
•
Phasor Measurement Unit
5.2
Power-System Data
5.2 Structure of the Power-System Data
SIPROTEC 5, Fault Recorder, Manual 111
C53000-G5040-C018-5, Edition 11.2017

Siemens SIPROTEC 5 Specifications

General

Series	SIPROTEC 5
Communication Protocols	IEC 61850, DNP3, Modbus
Cybersecurity	Role-based access control, secure communication
Modular Design	Yes
Hardware Redundancy	Optional
Operating Temperature	-25°C to +70°C
Digital Inputs	Configurable, number depends on I/O modules
Digital Outputs	Configurable, number depends on I/O modules
Analog Inputs	Configurable, number depends on I/O modules
Current Transformer Inputs	Configurable, number depends on I/O modules
Voltage Transformer Inputs	Configurable, number depends on I/O modules
Time Synchronization	IRIG-B, SNTP, PTP
Protection Functions	Overcurrent, Differential, Distance, Over/Under Voltage, Frequency
Housing	19-inch Rack Mount
Dimensions	Depends on module configuration
Weight	Depends on module configuration
Voltage Input	24V DC, 48V DC, 110V DC, 125V DC, 220V DC, 250V DC
