Connection Examples of Voltage Transformers for Modular Devices
[tvvolta1-260313-01.tif, 1, en_US]

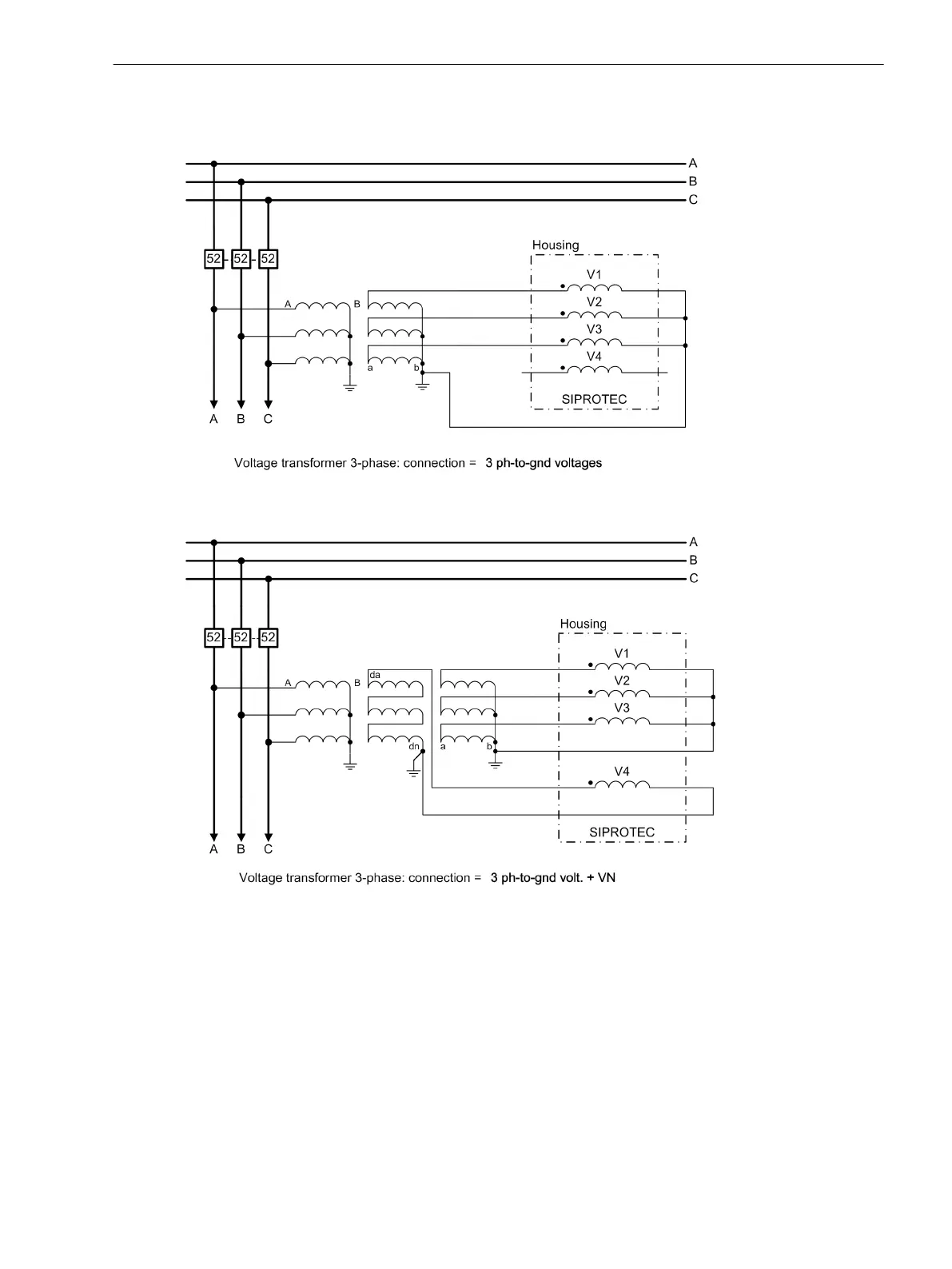

Figure A-11 Connection to 3 Star-Connected Voltage Transformers
[tvvolta2-260313-01.tif, 1, en_US]
Figure A-12 Connection to 3 Star-Connected Voltage Transformers and to the Broken-Delta Winding
