Siemens SIPROTEC 5 User Manual

20-mA Unit Ethernet
Overview
The function 20-mA unit Ether.:
•
Communicates in series with a 20-mA unit via the Slave Unit Protocol (SUP) and records the values meas-
ured by the 20-mA unit
•
Transforms the measured 20-mA values into slowly changing process tags such as temperature or gas
pressure
•
Makes the recorded process tags available to CFC, GOOSE, protocols and the device display
•
Monitors communication with the 20-mA unit
Structure of the Function
The function 20-mA unit Ether. can work only in the function group Analog units. A maximum of 4 function
instances can work simultaneously. Each instance contains 12 preconfigured channel function blocks.
The function 20-mA unit Ether. contains input and output channels which can be configured independently
of one another.
[dwstrfn2-150113-01.tif, 2, en_US]

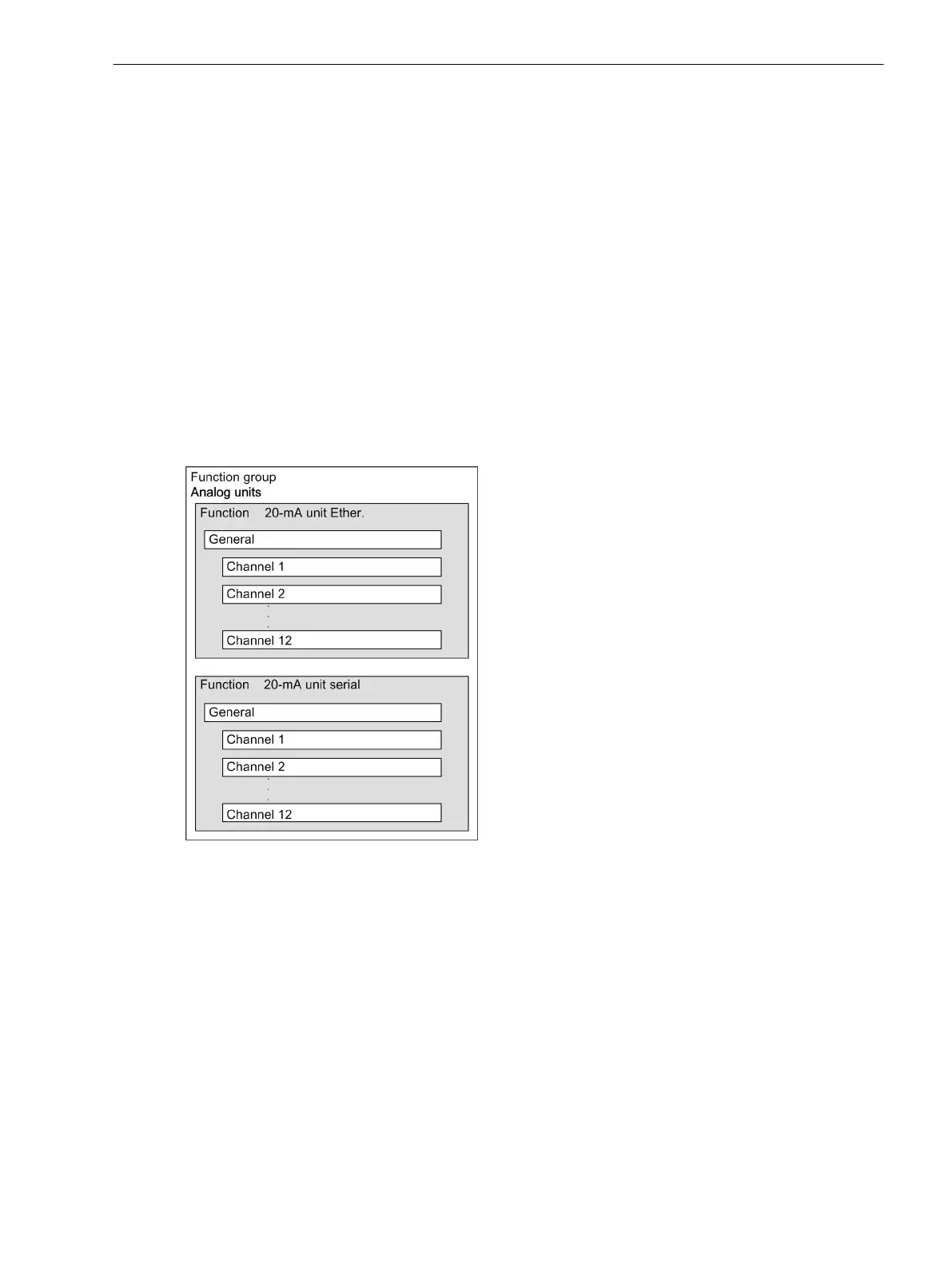

Figure 6-33 Structure/Embedding of the Function
6.5.3
6.5.3.1
6.5.3.2
Function-Group Types
6.5 Function-Group Type Analog Units
SIPROTEC 5, Fault Recorder, Manual 173
C53000-G5040-C018-5, Edition 11.2017

Siemens SIPROTEC 5 Specifications

General

Series	SIPROTEC 5
Communication Protocols	IEC 61850, DNP3, Modbus
Cybersecurity	Role-based access control, secure communication
Modular Design	Yes
Hardware Redundancy	Optional
Operating Temperature	-25°C to +70°C
Digital Inputs	Configurable, number depends on I/O modules
Digital Outputs	Configurable, number depends on I/O modules
Analog Inputs	Configurable, number depends on I/O modules
Current Transformer Inputs	Configurable, number depends on I/O modules
Voltage Transformer Inputs	Configurable, number depends on I/O modules
Time Synchronization	IRIG-B, SNTP, PTP
Protection Functions	Overcurrent, Differential, Distance, Over/Under Voltage, Frequency
Housing	19-inch Rack Mount
Dimensions	Depends on module configuration
Weight	Depends on module configuration
Voltage Input	24V DC, 48V DC, 110V DC, 125V DC, 220V DC, 250V DC
