Communication Log
The logging of the respective status such as ensuing faults, test and diagnosis operation, and communication
capacity utilizations is done for all hardware-based configured communication interfaces. Up to 500 indica-
tions can be stored in the communication log. Logging occurs separately for each communication port of the
configured communication modules.
Reading from the PC with DIGSI 5
•
Use the project tree window to reach the communication logs of your SIPROTEC 5 device.
Online access → USB → Device → Test suite → Communication module
•
Then click J:Onboard Ethernet → Communication log.
•
The communication indications are displayed when you click the arrow under Time stamp.
The communication log is shown to you in the state last loaded from the device.
•
To update (synchronization with the device) click the button Update in the headline of the indication list.

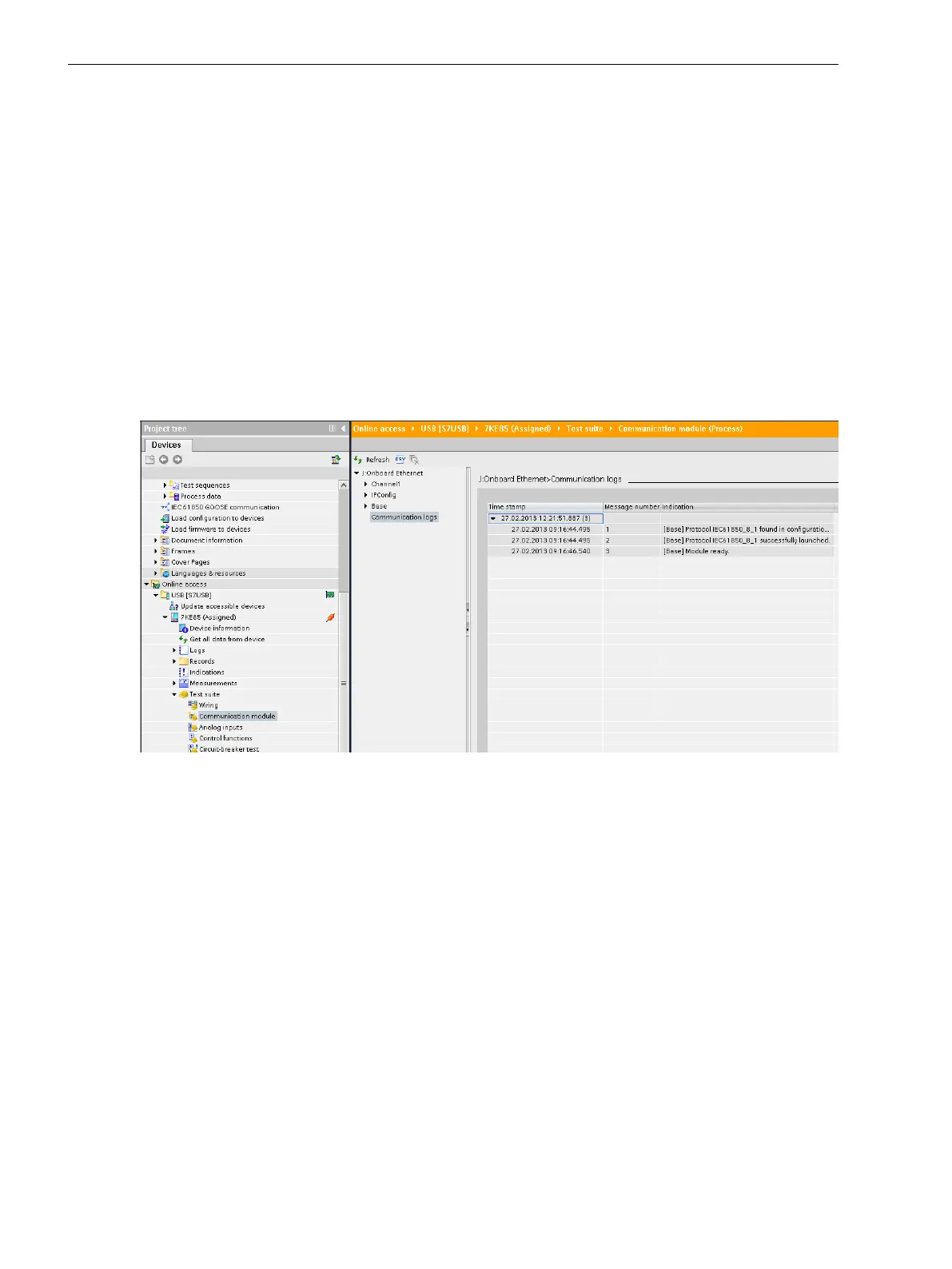

[sccompuf-270213-01.tif, 1, en_US]
Figure 3-13 Reading the Communication Log with DIGSI 5
Reading on the Device through the On-Site Operation Panel
•
To reach the communication log from the main menu, use the navigation keys of the on-site operation
panel.
Main Menu → Test & Diagnosis → Indications → Communication log
•
You can navigate within the displayed indication list using the navigation keys (up/down) on the on-site
operation panel.
3.1.7
System Functions
3.1 Indications
56 SIPROTEC 5, Fault Recorder, Manual
C53000-G5040-C018-5, Edition 11.2017

Siemens SIPROTEC 5 Specifications

General

Series	SIPROTEC 5
Communication Protocols	IEC 61850, DNP3, Modbus
Cybersecurity	Role-based access control, secure communication
Modular Design	Yes
Hardware Redundancy	Optional
Operating Temperature	-25°C to +70°C
Digital Inputs	Configurable, number depends on I/O modules
Digital Outputs	Configurable, number depends on I/O modules
Analog Inputs	Configurable, number depends on I/O modules
Current Transformer Inputs	Configurable, number depends on I/O modules
Voltage Transformer Inputs	Configurable, number depends on I/O modules
Time Synchronization	IRIG-B, SNTP, PTP
Protection Functions	Overcurrent, Differential, Distance, Over/Under Voltage, Frequency
Housing	19-inch Rack Mount
Dimensions	Depends on module configuration
Weight	Depends on module configuration
Voltage Input	24V DC, 48V DC, 110V DC, 125V DC, 220V DC, 250V DC
