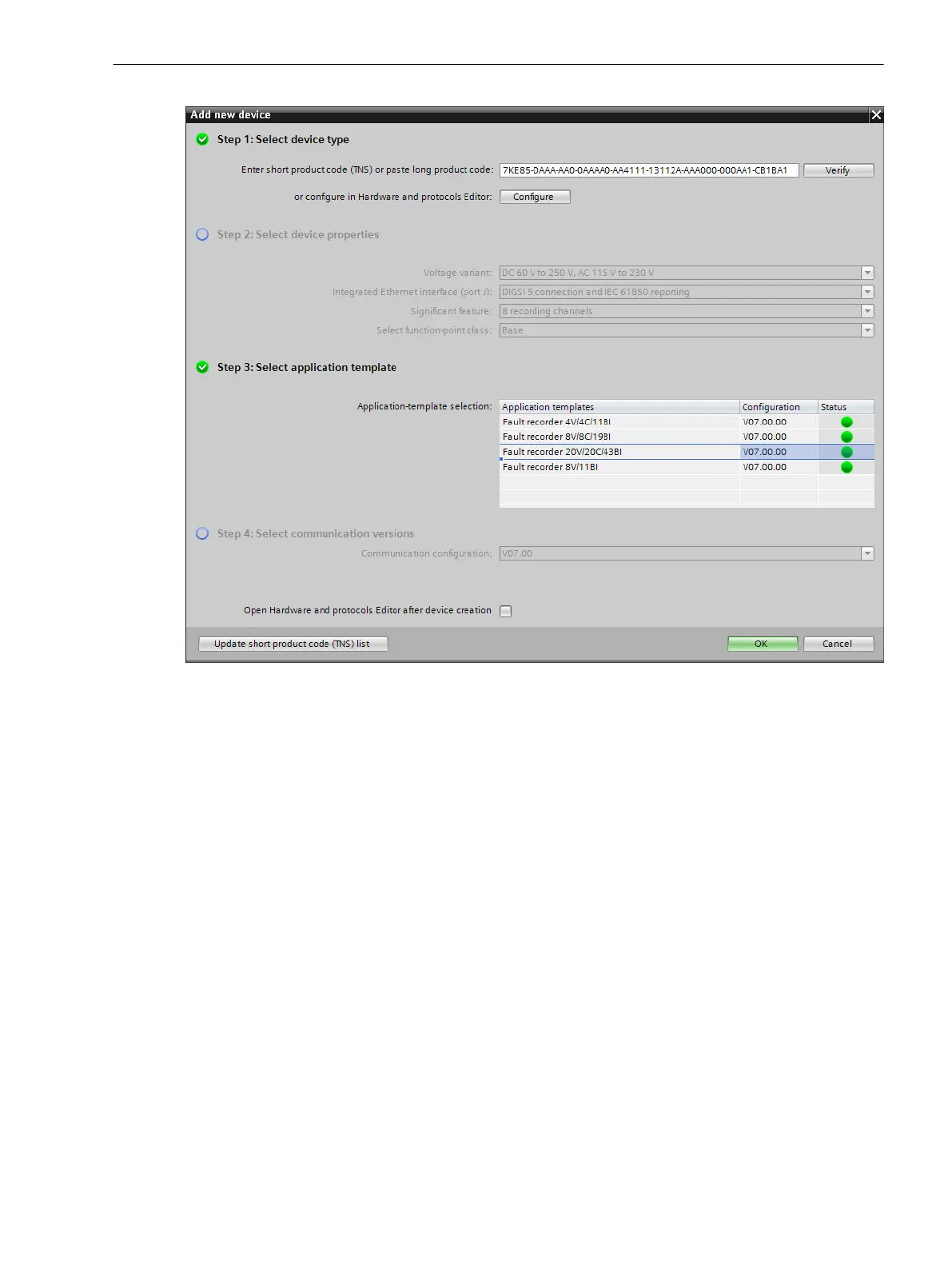

Figure 7-4
Select the Application Template
Step 4: Select the Communication Versions
The check box Step 4: Select the communication versions is dimmed. This selection is intended for future
activations.
You can find more details on this button in the DIGSI Help, Chapter Adding new device.
²
To add your new device to the project, finally click OK.
Step 2: Setting the Parameters and Routing in DIGSI 5
After you have added the fault recorder in DIGSI 5, you can set parameters and route signals, indications, trig-
gers, etc.
The sequence of the routing in DIGSI 5 corresponds to the signal flow direction.
7.1.3
Fault Recorder
7.1 Introduction to DIGSI 5
SIPROTEC 5, Fault Recorder, Manual 217
C53000-G5040-C018-5, Edition 11.2017

Siemens SIPROTEC 5 Specifications

General

Series	SIPROTEC 5
Communication Protocols	IEC 61850, DNP3, Modbus
Cybersecurity	Role-based access control, secure communication
Modular Design	Yes
Hardware Redundancy	Optional
Operating Temperature	-25°C to +70°C
Digital Inputs	Configurable, number depends on I/O modules
Digital Outputs	Configurable, number depends on I/O modules
Analog Inputs	Configurable, number depends on I/O modules
Current Transformer Inputs	Configurable, number depends on I/O modules
Voltage Transformer Inputs	Configurable, number depends on I/O modules
Time Synchronization	IRIG-B, SNTP, PTP
Protection Functions	Overcurrent, Differential, Distance, Over/Under Voltage, Frequency
Housing	19-inch Rack Mount
Dimensions	Depends on module configuration
Weight	Depends on module configuration
Voltage Input	24V DC, 48V DC, 110V DC, 125V DC, 220V DC, 250V DC
