Siemens SIPROTEC 5 User Manual

Routing the Measurands in DIGSI 5 for Processing in SICAM PQS
i
i
NOTE
SICAM PQS allows you, among others, to analyze power quality data. Different routing modules are avail-
able for recorder routing in DIGSI 5. These modules can have different calculation methods and the refresh
rates of the measurands.
If you record the same measurands using different calculation methods and refresh rates, Siemens recom-
mends routing these measurands to different recorders so that SICAM PQS can process these measurands.
EXAMPLE:
The Routing f and PQ 10/12 cyc routing modules record the measurands with different refresh rates.
Route the same measurands having different calculation methods and refresh rates to different recorders. The
following figure shows an example for suitable routing of similar measurands.

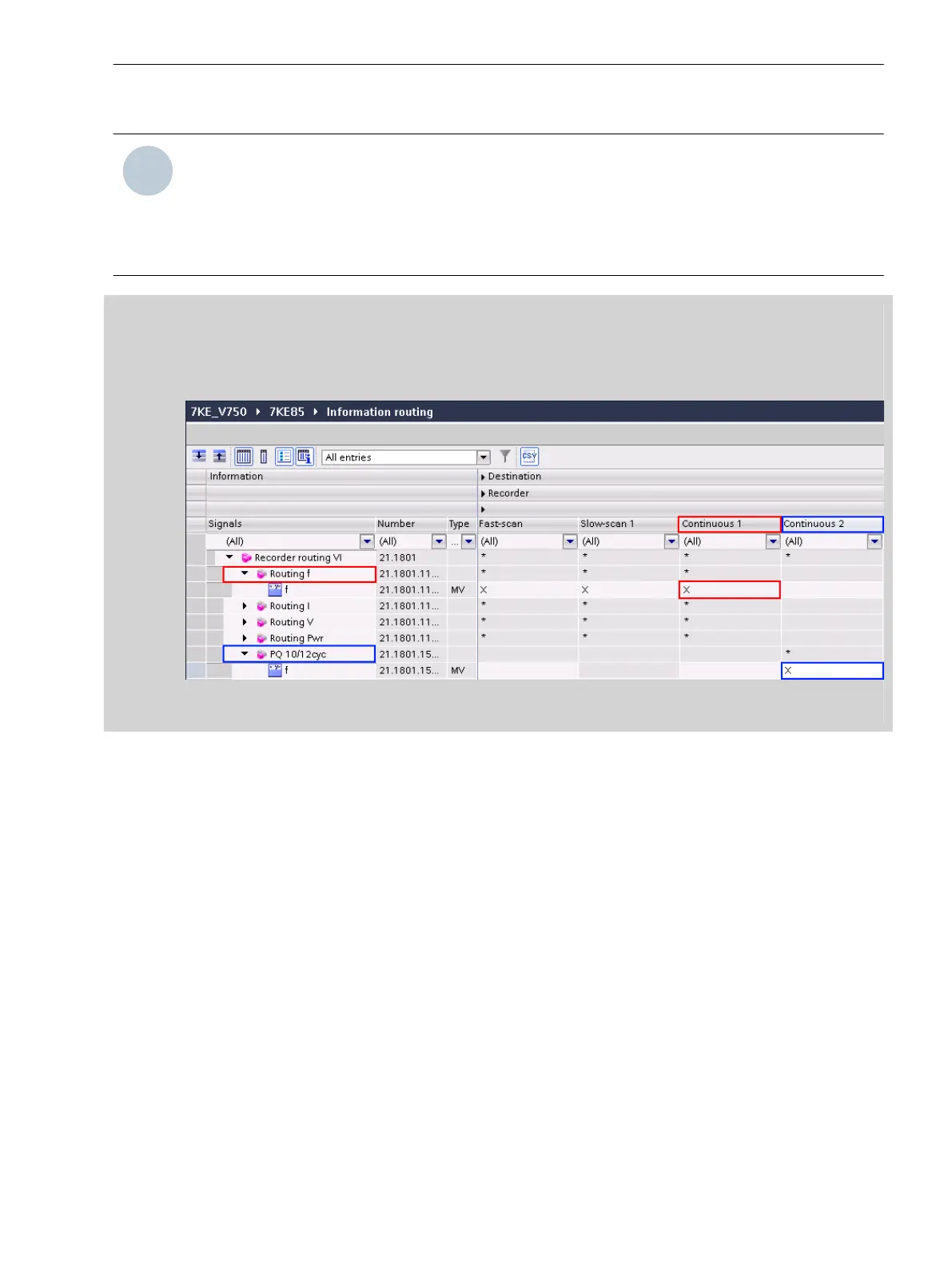

[sc pq, 1, en_US]
Figure 7-71 Example for Routing
Recorder Routing V
Overview of Functions
The Recorder routing V function starts when there is an exceedance of the set frequency and voltage toler-
ance values.
You can find more information on the Recorder routing V function in chapter 6.1.2 Structure of the Function
Group.
Structure of the Function
The Recorder routing V function is preconfigured once at the factory. Within the Voltage 3-phase function
group, the Recorder routing V function can be operated only once.
You can find more information on the Recorder routing V function in the chapters 6.1.2 Structure of the
Function Group and 7.6.1.2 Using Measurands .
Indications
Indications can be routed on recorders that are available via the GOOSE configurator.
Only SPS indications can be routed in DIGSI 5.
7.6.1.3
7.6.2
7.6.2.1
7.6.2.2
7.6.2.3
Fault Recorder
7.6 Measurands and Recorder Routing Functions
SIPROTEC 5, Fault Recorder, Manual 353
C53000-G5040-C018-5, Edition 11.2017

Siemens SIPROTEC 5 Specifications

General

Series	SIPROTEC 5
Communication Protocols	IEC 61850, DNP3, Modbus
Cybersecurity	Role-based access control, secure communication
Modular Design	Yes
Hardware Redundancy	Optional
Operating Temperature	-25°C to +70°C
Digital Inputs	Configurable, number depends on I/O modules
Digital Outputs	Configurable, number depends on I/O modules
Analog Inputs	Configurable, number depends on I/O modules
Current Transformer Inputs	Configurable, number depends on I/O modules
Voltage Transformer Inputs	Configurable, number depends on I/O modules
Time Synchronization	IRIG-B, SNTP, PTP
Protection Functions	Overcurrent, Differential, Distance, Over/Under Voltage, Frequency
Housing	19-inch Rack Mount
Dimensions	Depends on module configuration
Weight	Depends on module configuration
Voltage Input	24V DC, 48V DC, 110V DC, 125V DC, 220V DC, 250V DC
