The routing of the selected indication is done via right click. Select one of the options in the list box
shown:
– Routed (X)
– Unrouted

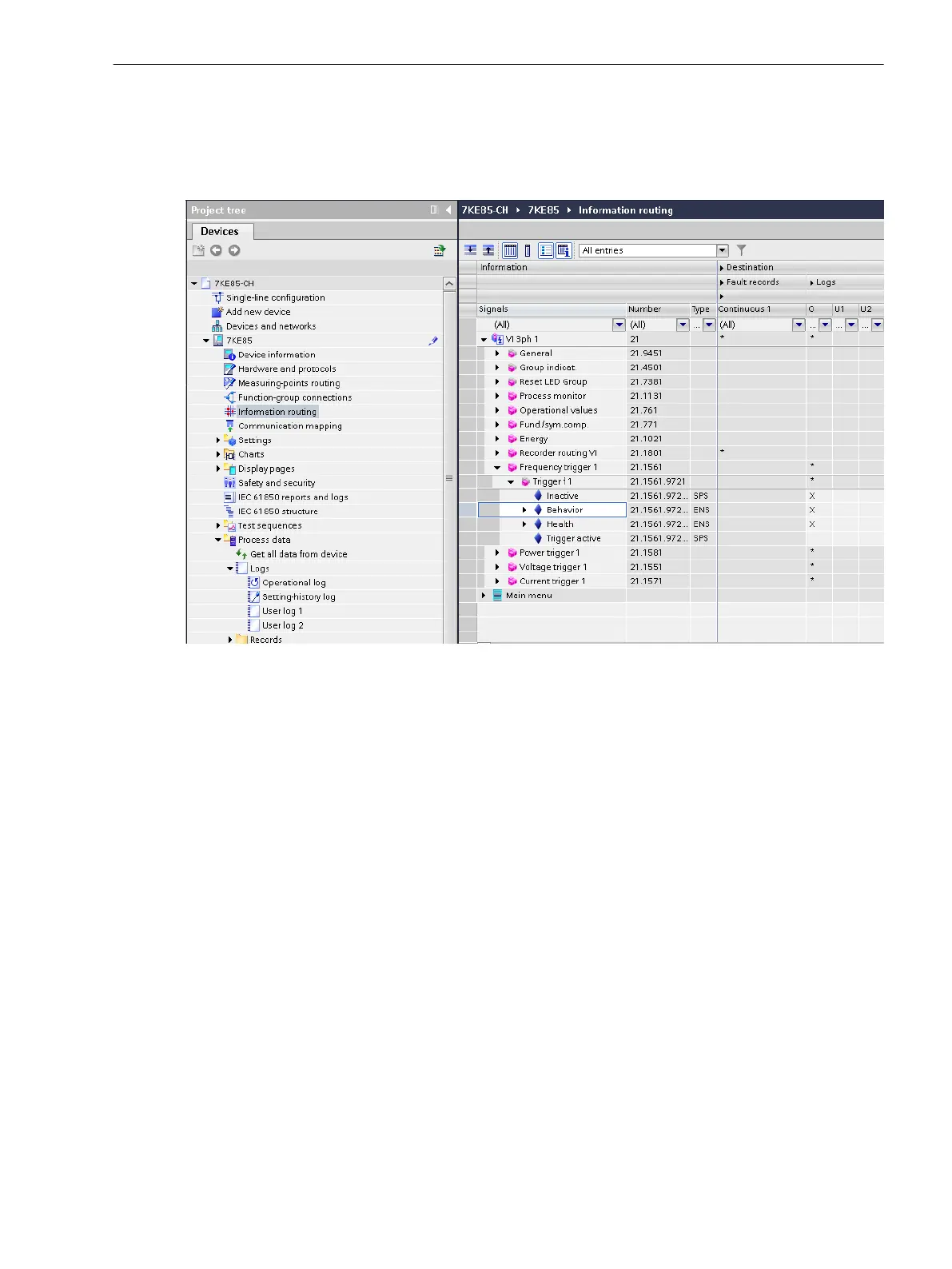

[sc7kekon-220213-01.tif, 1, en_US]
Figure 3-3
Indication Configuration in DIGSI 5
For non-configurable logs (for example, setting-history logs) scope and type of logged indications are
described separately (see following chapter about logs).
Operational Log
Operational indications are information that the device generates during operation. This includes information
about:
•
State of device functions
•
Measured data
•
Power-system data
Exceeding or dropping below limiting values generates as an operational indication. Up to 2000 indications
can be stored in the operational log.
Reading from the PC with DIGSI 5
•
To reach the operational log of your SIPROTEC 5 device, use the project tree window.
Project → Device → Process Data → Logs → Operational log
•
The operational log is shown to you in the state last loaded from the device. To update (synchronization
with the device), click the button Read log entries in the headline of the indication list (see the following
figure).
3.1.5.2
System Functions
3.1 Indications
SIPROTEC 5, Fault Recorder, Manual 47
C53000-G5040-C018-5, Edition 11.2017

Siemens SIPROTEC 5 Specifications

General

Series	SIPROTEC 5
Communication Protocols	IEC 61850, DNP3, Modbus
Cybersecurity	Role-based access control, secure communication
Modular Design	Yes
Hardware Redundancy	Optional
Operating Temperature	-25°C to +70°C
Digital Inputs	Configurable, number depends on I/O modules
Digital Outputs	Configurable, number depends on I/O modules
Analog Inputs	Configurable, number depends on I/O modules
Current Transformer Inputs	Configurable, number depends on I/O modules
Voltage Transformer Inputs	Configurable, number depends on I/O modules
Time Synchronization	IRIG-B, SNTP, PTP
Protection Functions	Overcurrent, Differential, Distance, Over/Under Voltage, Frequency
Housing	19-inch Rack Mount
Dimensions	Depends on module configuration
Weight	Depends on module configuration
Voltage Input	24V DC, 48V DC, 110V DC, 125V DC, 220V DC, 250V DC
