Siemens SIPROTEC 5 User Manual

[sckomhmi-230213-01.tif, 1, en_US]

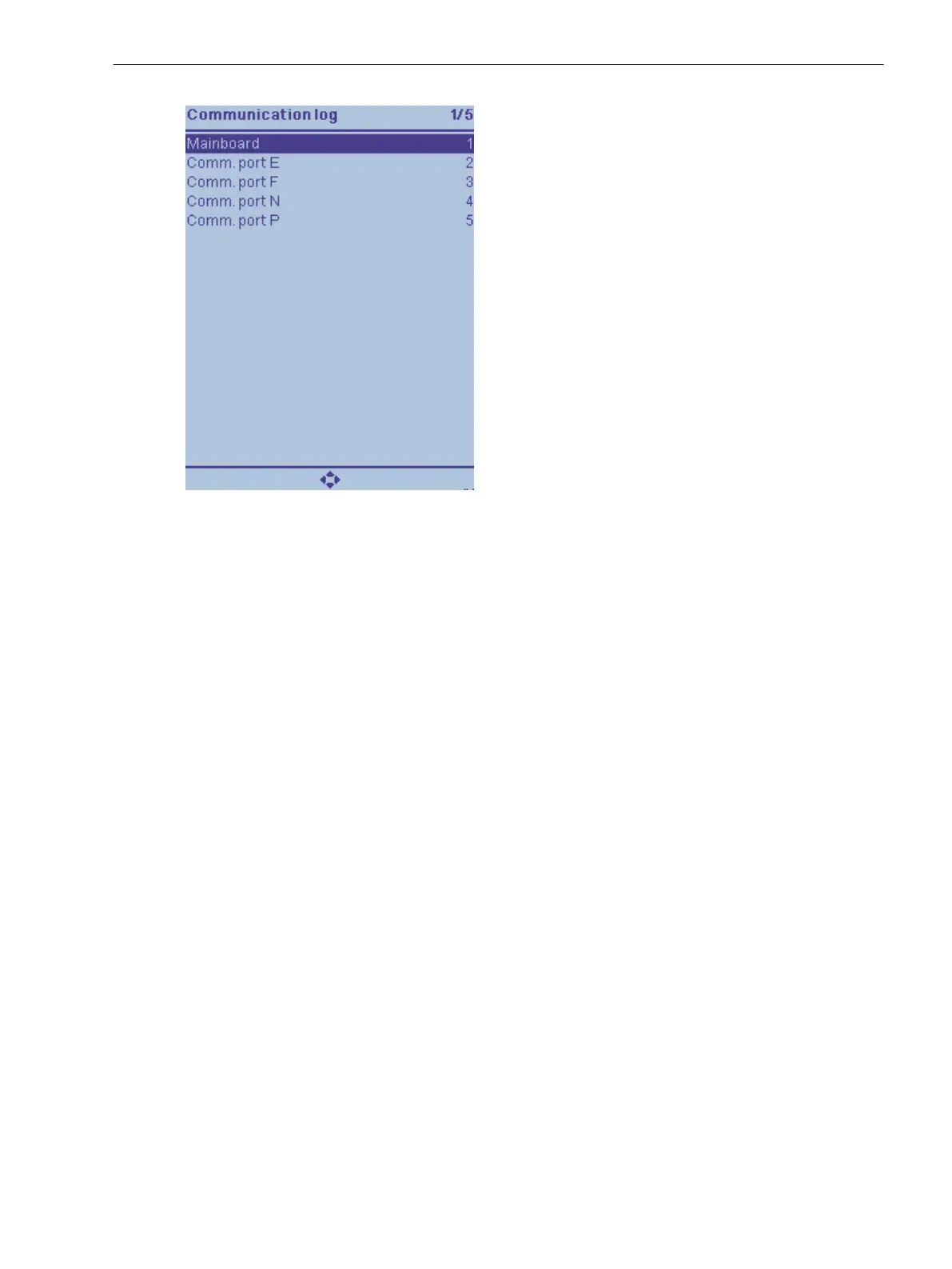

Figure 3-14 Reading the Communication Log on the On-site Operation Panel of the Device
Deletability
The communication logs of your SIPROTEC 5 device can be deleted. Read details about this in the chapter
3.1.10 Saving and Deleting the Log .
Configurability
The communication logs are not freely configurable. The entries are preconfigured.
Security Log
Access to areas of the device with restricted access rights is recorded in the security log. Unsuccessful and
unauthorized access attempts are also recorded. Up to 500 indications can be stored in the security log.
Reading from the PC with DIGSI 5
•
To reach the security log of your SIPROTEC 5 device, use the project tree window.
Project → Device → Device Information → Logs → Security log
The security log is shown to you in the state last loaded from the device.
•
To update (synchronization with the device) click the button Update in the headline of the indication list.
3.1.8
System Functions
3.1 Indications
SIPROTEC 5, Fault Recorder, Manual 57
C53000-G5040-C018-5, Edition 11.2017

Siemens SIPROTEC 5 Specifications

General

Series	SIPROTEC 5
Communication Protocols	IEC 61850, DNP3, Modbus
Cybersecurity	Role-based access control, secure communication
Modular Design	Yes
Hardware Redundancy	Optional
Operating Temperature	-25°C to +70°C
Digital Inputs	Configurable, number depends on I/O modules
Digital Outputs	Configurable, number depends on I/O modules
Analog Inputs	Configurable, number depends on I/O modules
Current Transformer Inputs	Configurable, number depends on I/O modules
Voltage Transformer Inputs	Configurable, number depends on I/O modules
Time Synchronization	IRIG-B, SNTP, PTP
Protection Functions	Overcurrent, Differential, Distance, Over/Under Voltage, Frequency
Housing	19-inch Rack Mount
Dimensions	Depends on module configuration
Weight	Depends on module configuration
Voltage Input	24V DC, 48V DC, 110V DC, 125V DC, 220V DC, 250V DC
