Addr. Parameter C Setting Options Default Setting
_:109 Superv.Grp.#:Binary
input
1 to 256 1
Information List
No. Information Data Class
(Type)
Type
Superv.Grp.#
_:52 Superv.Grp.#:Behavior ENS O
_:55 Superv.Grp.#:Sig. volt. disturbed SPS O
Voltage-Balance Supervision
Overview of Functions
In healthy system operation, a certain balance between voltages can be assumed.
The Voltage-balance supervision function detects the following errors:
•
Unbalance of phase-to-phase voltages in the secondary circuit
•
Connection errors during commissioning or short circuits and interruptions in the secondary circuit
The voltage measurement is based on the RMS values of the fundamental component.
Structure of the Function
The Voltage-balance supervision function is located in the Power-system data of each 3-phase voltage
measuring point.
[dwstrusy-300913, 2, en_US]

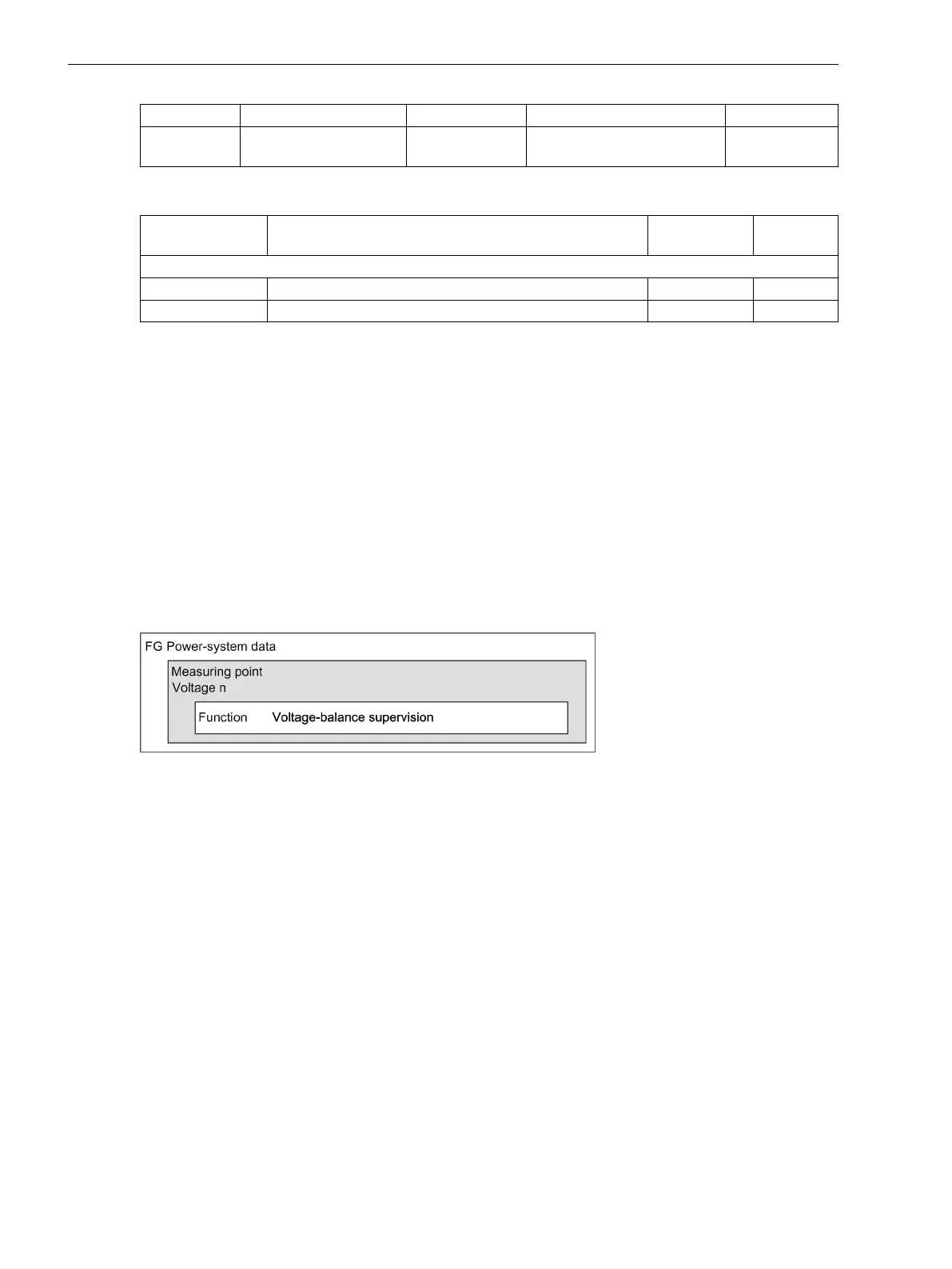

Figure 8-5 Structure/Embedding of the Function
Function Description
The voltage balance is checked by a magnitude supervision function. This function relates the smallest phase-
to-phase voltage to the largest phase phase-to-phase voltage. Unbalance is detected if
|Vmin| / |Vmax| < Threshold min/max, as long as Vmax > Release threshold
8.3.1.6
8.3.2
8.3.2.1
8.3.2.2
8.3.2.3
Supervision Functions
8.3 Supervision of the Secondary System
372 SIPROTEC 5, Fault Recorder, Manual
C53000-G5040-C018-5, Edition 11.2017

Siemens SIPROTEC 5 Specifications

General

Series	SIPROTEC 5
Communication Protocols	IEC 61850, DNP3, Modbus
Cybersecurity	Role-based access control, secure communication
Modular Design	Yes
Hardware Redundancy	Optional
Operating Temperature	-25°C to +70°C
Digital Inputs	Configurable, number depends on I/O modules
Digital Outputs	Configurable, number depends on I/O modules
Analog Inputs	Configurable, number depends on I/O modules
Current Transformer Inputs	Configurable, number depends on I/O modules
Voltage Transformer Inputs	Configurable, number depends on I/O modules
Time Synchronization	IRIG-B, SNTP, PTP
Protection Functions	Overcurrent, Differential, Distance, Over/Under Voltage, Frequency
Housing	19-inch Rack Mount
Dimensions	Depends on module configuration
Weight	Depends on module configuration
Voltage Input	24V DC, 48V DC, 110V DC, 125V DC, 220V DC, 250V DC
