Addr. Parameter C Setting Options Default Setting
_:110 MT in #:Lower limit -
Sensor
-1000000.00 to 1000000.00 1.00
Information List
No. Information Data Class
(Type)
Type
MT in #
_:302 MT in #:TD scale MV MV O
_:306 MT in #:TD scale SAV SAV O
RTD Unit Ethernet
Overview
The RTD unit Ether. function:
•
Communicates with an external RTD unit via the Slave Unit Protocol (SUP) and records the measured
temperatures from the RTD unit
•
Provides the captured temperatures to the temperature monitoring function
•
Monitors communication with the RTD unit
Structure of the Function
The RTD unit Ether. function can only work in the Analog units function group. A maximum of 20 function
instances can work simultaneously. Each instance contains 12 preconfigured sensor function blocks.

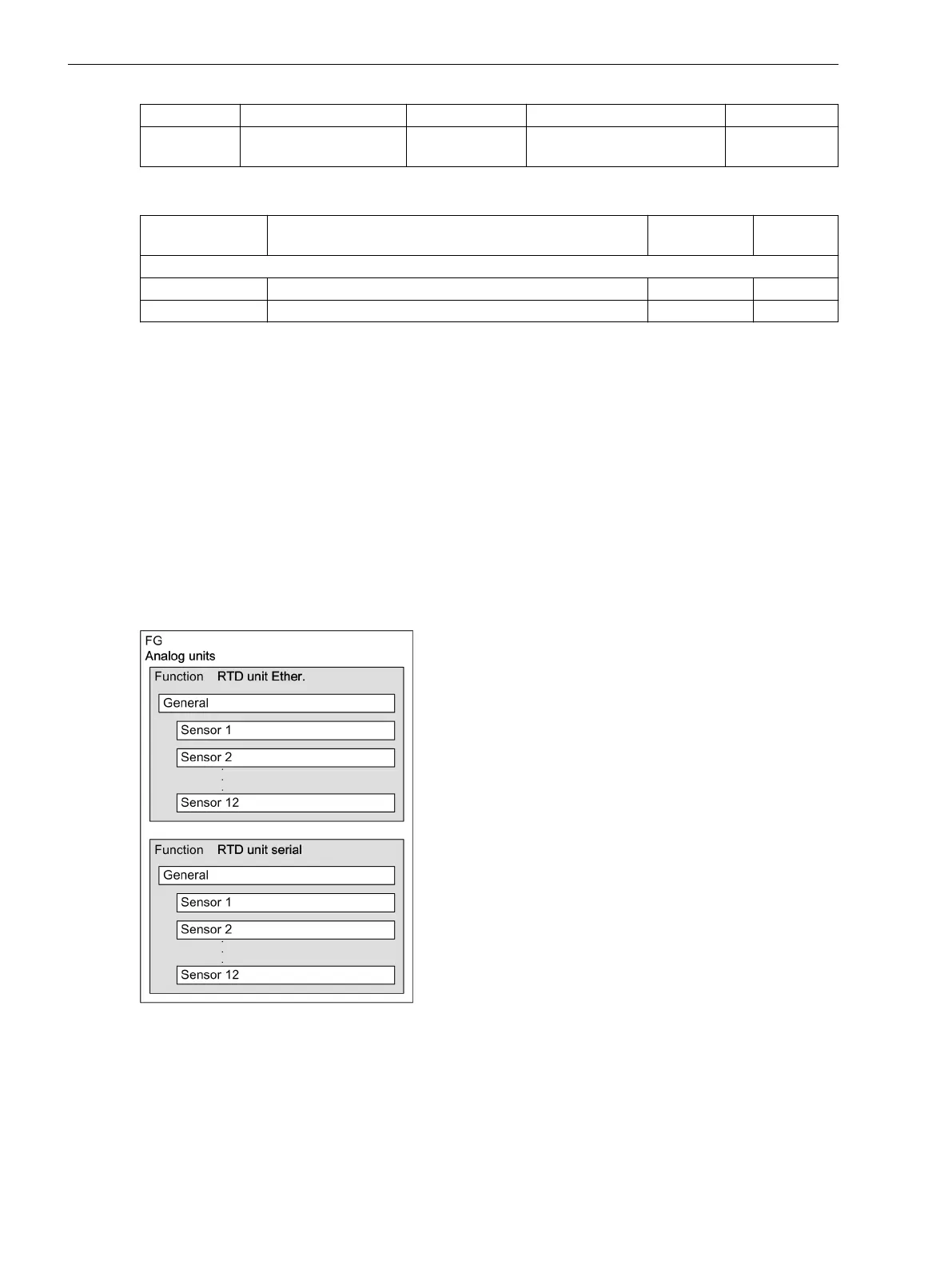

[dwstrfnc-291112-01.tif, 2, en_US]
Figure 6-56 Structure/Embedding of the Function
6.5.6.6
6.5.7
6.5.7.1
6.5.7.2
Function-Group Types
6.5 Function-Group Type Analog Units
196 SIPROTEC 5, Fault Recorder, Manual
C53000-G5040-C018-5, Edition 11.2017

Siemens SIPROTEC 5 Specifications

General

Series	SIPROTEC 5
Communication Protocols	IEC 61850, DNP3, Modbus
Cybersecurity	Role-based access control, secure communication
Modular Design	Yes
Hardware Redundancy	Optional
Operating Temperature	-25°C to +70°C
Digital Inputs	Configurable, number depends on I/O modules
Digital Outputs	Configurable, number depends on I/O modules
Analog Inputs	Configurable, number depends on I/O modules
Current Transformer Inputs	Configurable, number depends on I/O modules
Voltage Transformer Inputs	Configurable, number depends on I/O modules
Time Synchronization	IRIG-B, SNTP, PTP
Protection Functions	Overcurrent, Differential, Distance, Over/Under Voltage, Frequency
Housing	19-inch Rack Mount
Dimensions	Depends on module configuration
Weight	Depends on module configuration
Voltage Input	24V DC, 48V DC, 110V DC, 125V DC, 220V DC, 250V DC
