Basic Data Types
The following data types are available for user-defined objects in the DIGSI 5 library under the heading User-
defined signals. Additionally, a folder for external signals is available (see chapter 3.5.5 External Signals).
User-Defined Signals

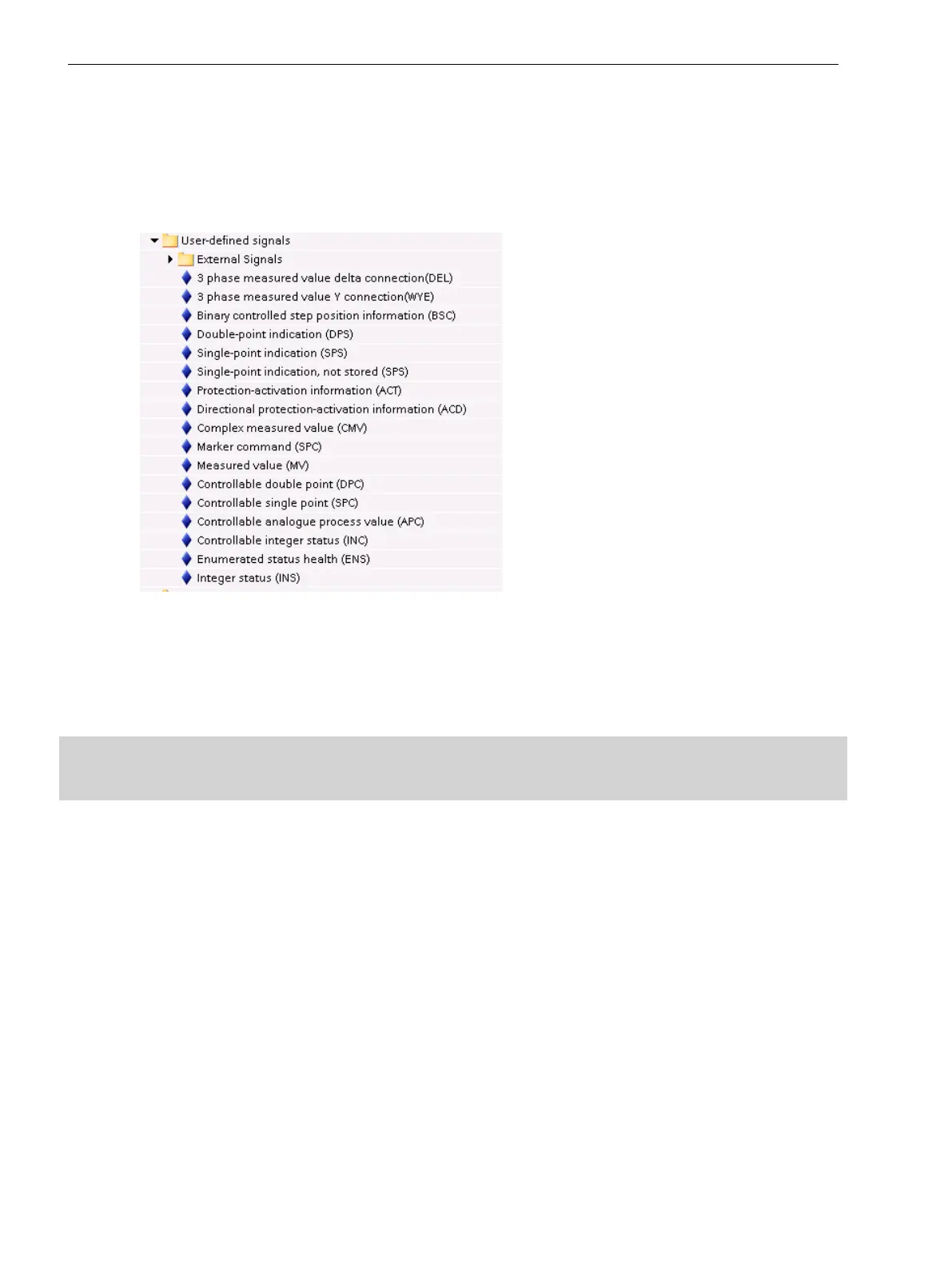

[sc_LB_userdefsig, 1, en_US]
Figure 3-36 User-Defined Signals
Single-Point Indication (Type SPS: Single-Point Status)
The status of a binary input can be registered in the form of a single-point indication or forwarded as the
binary result from a CFC chart.
EXAMPLE
Acquisition using binary input, further processing in a CFC and/or signaling using an LED.
Single-Point Indication (Type SPS unsaved: Single-Point Status Unsaved)
In contrast to SPS single-point indications, the state of the SPS unsaved indication is not maintained after the
device restarts.
For this purpose, go to Properties > Details > Initialization > Restart and set the Value.
3.5.2
System Functions
3.5 User-Defined Objects
88 SIPROTEC 5, Fault Recorder, Manual
C53000-G5040-C018-5, Edition 11.2017

Siemens SIPROTEC 5 Specifications

General

Series	SIPROTEC 5
Communication Protocols	IEC 61850, DNP3, Modbus
Cybersecurity	Role-based access control, secure communication
Modular Design	Yes
Hardware Redundancy	Optional
Operating Temperature	-25°C to +70°C
Digital Inputs	Configurable, number depends on I/O modules
Digital Outputs	Configurable, number depends on I/O modules
Analog Inputs	Configurable, number depends on I/O modules
Current Transformer Inputs	Configurable, number depends on I/O modules
Voltage Transformer Inputs	Configurable, number depends on I/O modules
Time Synchronization	IRIG-B, SNTP, PTP
Protection Functions	Overcurrent, Differential, Distance, Over/Under Voltage, Frequency
Housing	19-inch Rack Mount
Dimensions	Depends on module configuration
Weight	Depends on module configuration
Voltage Input	24V DC, 48V DC, 110V DC, 125V DC, 220V DC, 250V DC
