Function-Group Type Analog Units
Overview
The Analog units function group is used to map analog units and communicate with them. Analog units are
external devices, such as RTD units, or analog plug-in modules, such as measuring-transducer modules.
You will find the Analog units function group for many device types in the Global DIGSI 5 library.
[sc20maee-250816-01, 1, en_US]

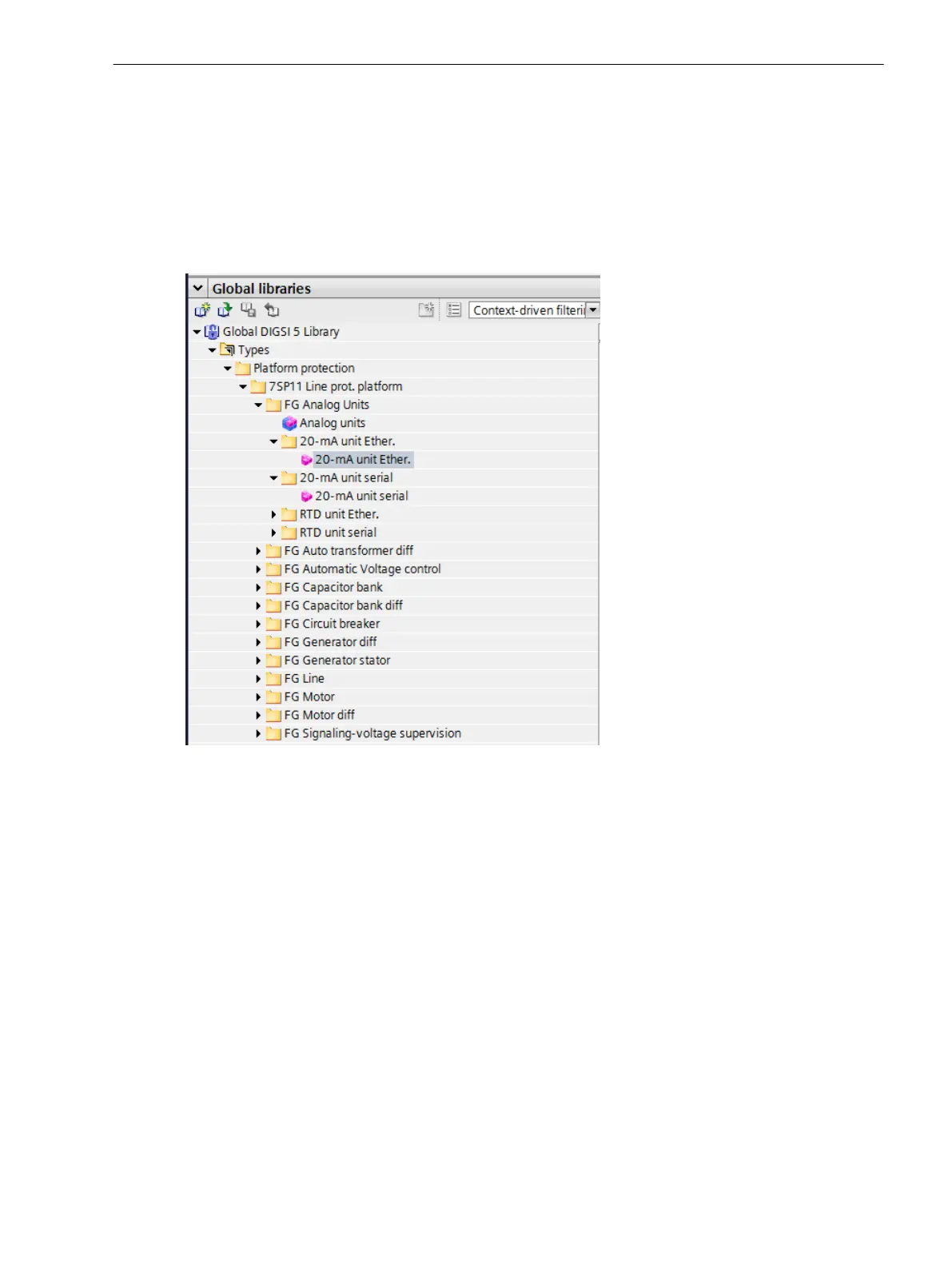

Figure 6-31
Analog Unit Function Group in DIGSI
Structure of the Function Group
If the device has a measuring transducer, it is automatically mapped in the Analog units function group. If
one or more RTD units are connected to the device, you have to load one or more RTD unit Ether. or RTD unit
serial functions from the Global DIGSI library in order to map the RTD units.
The following figure shows the structure of the function group.
6.5
6.5.1
6.5.2
Function-Group Types
6.5 Function-Group Type Analog Units
SIPROTEC 5, Fault Recorder, Manual 171
C53000-G5040-C018-5, Edition 11.2017

Siemens SIPROTEC 5 Specifications

General

Series	SIPROTEC 5
Communication Protocols	IEC 61850, DNP3, Modbus
Cybersecurity	Role-based access control, secure communication
Modular Design	Yes
Hardware Redundancy	Optional
Operating Temperature	-25°C to +70°C
Digital Inputs	Configurable, number depends on I/O modules
Digital Outputs	Configurable, number depends on I/O modules
Analog Inputs	Configurable, number depends on I/O modules
Current Transformer Inputs	Configurable, number depends on I/O modules
Voltage Transformer Inputs	Configurable, number depends on I/O modules
Time Synchronization	IRIG-B, SNTP, PTP
Protection Functions	Overcurrent, Differential, Distance, Over/Under Voltage, Frequency
Housing	19-inch Rack Mount
Dimensions	Depends on module configuration
Weight	Depends on module configuration
Voltage Input	24V DC, 48V DC, 110V DC, 125V DC, 220V DC, 250V DC
